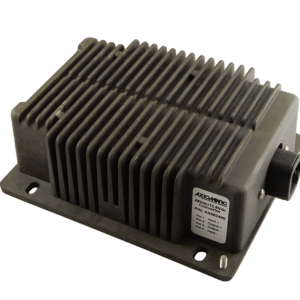

48VDC/13.8VDC, 180W Converters

The DC-DC Converter provides clean 12 VDC power suitable for 12VDC solenoids, relays and other electrical systems. For operation under the most harsh and demanding conditions, the IP67 rated unit is fully sealed and potted in an enclosure to protect against moisture, shock, and vibration. Power from a battery or other source of 48 VDC nominal is converted to a 12 VDC output regulated to 1%. The unit has a high current output capability of 15 Amps nominal (18 Amps peak). The device manages heat dissipation and requires no forced cooling systems. Short circuit and reverse polarity protection are provided. The compact unit is designed with extremely rugged surge and transient suppression in addition to sustained over/under voltage protection. With a nameplate rating of 180 Watts of output power, the DC-DC Converter features proprietary dual-phase topology for a high efficiency of >93%.

3 Items Added to Quote

View Quote Cart

Home » Catalog » Power Management»DC-DC Converters»48VDC/13.8VDC, 180W Converters»

48VDC/13.8VDC, 180W Converters

Parts

Sort By Show

Showing all 2 results

Select all	P/N	Part Name		Add to Quote
Read more	AX082400	48VDC/13.8VDC Converter, 180W		This product is already in your quote request list. Browse the list
Read more	AX082400K	KIT(AX082400 Converter, WH-DTP06-4S-S-2M Wire Harness)		This product is already in your quote request list. Browse the list
