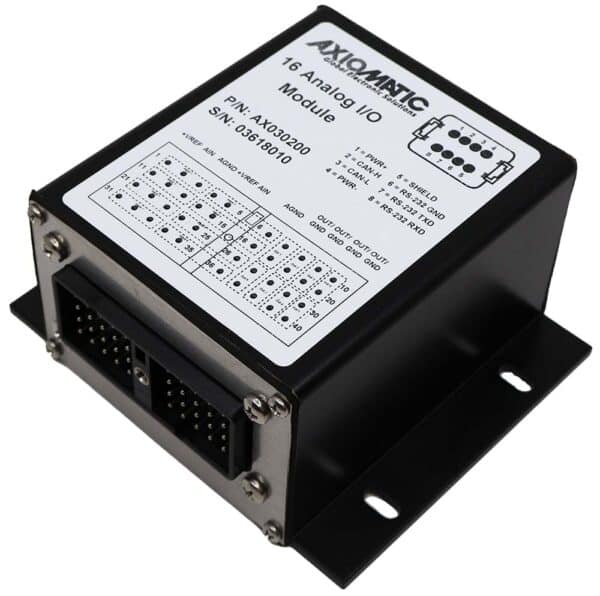

16 Analog I/O, SAE J1939
The 16 Universal Signal Input/Analog Output CAN Controller can extend machine control networks by adding I/O to the CAN bus. This controller features 1 CAN port for user-defined communications over the bus. It accepts up to 8 analog (0-5V, 0-10V, 0-20 mA or 4-20 mA) or digital or PWM frequency inputs and provides 8 analog outputs (0-5V, 0- 10V, +/-5V, +/-10V, 0-20 mA, 4-20 mA). Diagnostics messages are provided over the CAN network for the status of inputs or outputs. A RS-232 port is provided for user configuration via PC or for diagnostic purposes.
Model AX030210 adds a digital input, resistive input, 2 voltage references and a relay output. RS-232 is not supported in this model.
The controller belongs to a family of Axiomatic smart controllers with programmable internal architecture. This provides users with flexibility, allowing them to build their own custom controller with a required functionality from a set of predefined internal functional blocks using the PC-based Axiomatic Electronic Assistant software tool. Application programming is performed through the CAN interface, without disconnecting the controller from the user’s system.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
Downloads
Datasheet
User Manual
2D Drawing
Step Files (3D)
