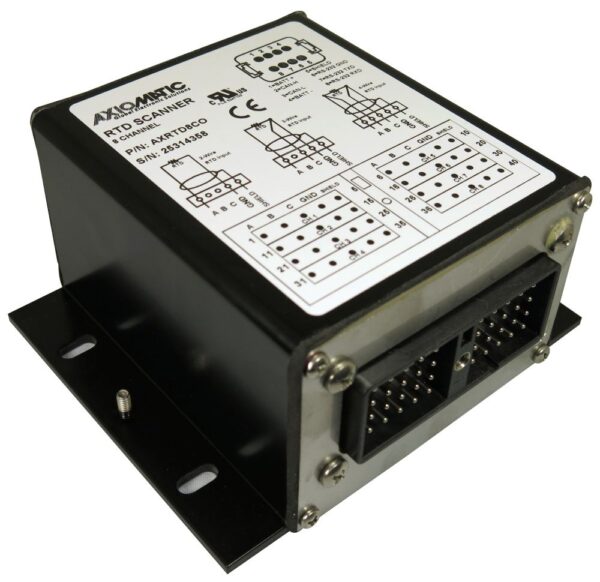

Item # AXRTD8CO — Eight Channel, RTD Scanner with CAN (CANopen®)
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
Technical Specifications
RTD Scanner
Order Code
P/N: AXRTD8CO (CANopen)
Thermocouple Inputs
Reads 8 RTD inputs
Operating Voltage
9-32Vdc (12V or 24Vdc nominal)
Reverse Polarity Protection
Provided
Enclosure
149.00 x 145.30 x 73.00 mm
5.86 x 5.72 x 2.87 inches
W x L x H Excluding Mating Connectors
Protection Rating
IP67
Operating Temperature
-40 to 85 ºC
-40 to 185 ºF
Compliance
(FTPM2) – Controls for Stationary Engine Driven Assemblies
CE Marking for EMC and RoHS Directives
cUL C22.2 No. 14-10 (2010)
Marine Type Approvals (Lloyd’s Register, DNV-GL, ABS, CCS, RINA, RS, BV)
UL508 (April 2010)
Datasheet
User Manual
2D Drawing
EDS
