KIT (AX081500 Converter, AX070103 Wire Harness)
KIT (AX081500 Converter, AX070103 Wire Harness)

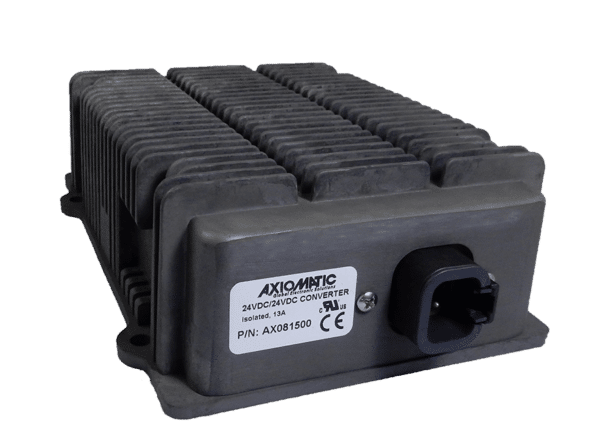

Item # AX081500K — KIT (AX081500 Converter, AX070103 Wire Harness)
These DC/DC Converters provides clean 24VDC power suitable for instrumentation and control networks equipment. For operation under harsh and demanding conditions, the units are fully sealed and IP67 rated to protect against moisture, shock and vibration. Input and output isolation is provided. The units are designed with rugged electrical protections. Nominal nameplate rating vary with the models.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
Downloads
Datasheet
2D Drawing
Step Files (3D)
