Thermocouple Scanner, 20 Channel, SAE J1939
Thermocouple Scanner, 20 Channel, SAE J1939

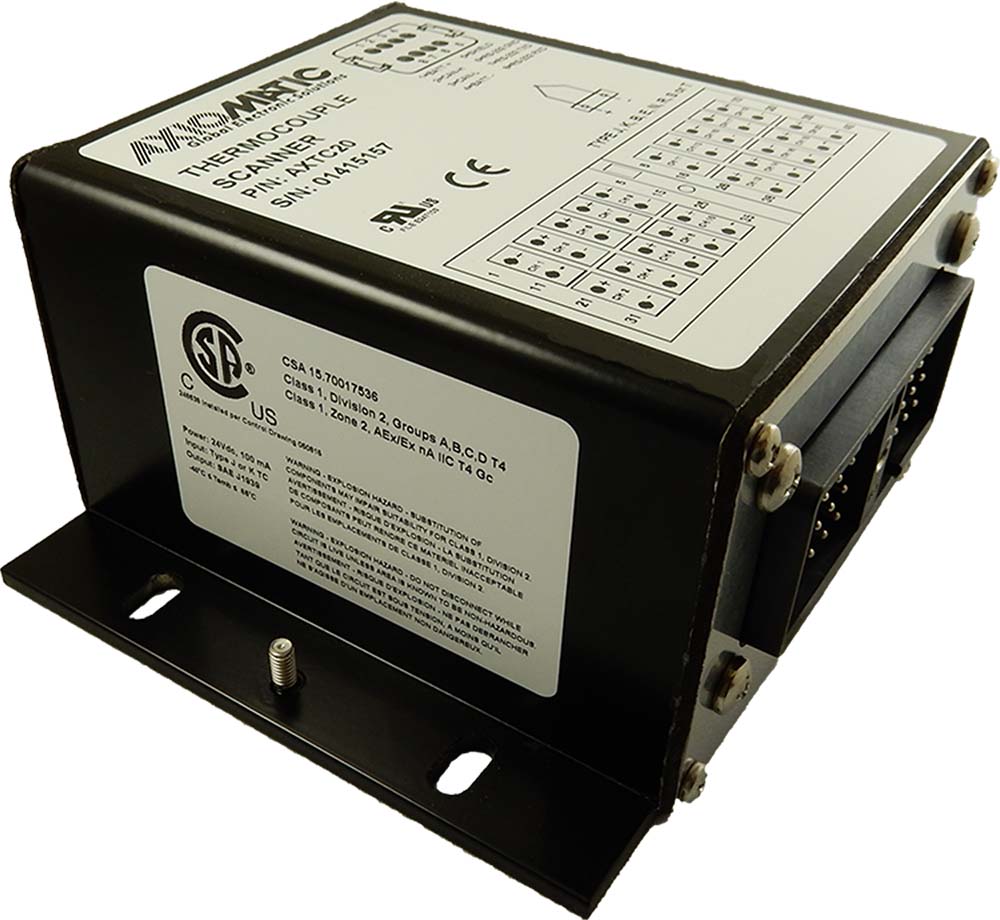

Item # AXTC20 — Thermocouple Scanner, 20 Channel, SAE J1939
The Thermocouple Module monitors up to 20 channels of several types of thermocouples. The engine temperature information is provided to the engine control system over a SAE J1939 or CANopen bus. Temperature information can include exhaust temperature, winding temperature, and fluid temperature monitoring. All 20 channels of temperature data are automatically sent over the CAN bus when power is applied with no additional programming or configuration required. Integral diagnostics determine thermocouple integrity and thermocouple inputs are isolated from each other. The thermocouple module features rugged packaging and watertight TE Deutsch connectors. Applications include power generator sets.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
Downloads
Datasheet
User Manual
2D Drawing
Step Files (3D)
Compliance
Marine Type Approvals
