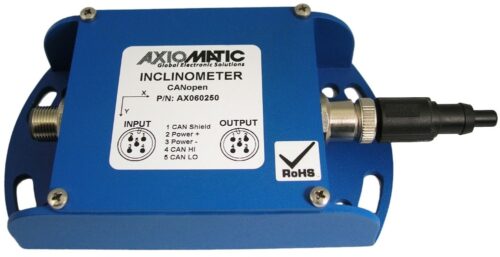

UNIVERSAL INCLINOMETER, CANopen®
SERIES – from Axiomatic, P/N: AX06025X
Axiomatic’s family of rugged inclinometers and tilt sensors has a series of new low cost sensors that can measure ±90º degrees or 360 degrees angular rotation. The AX06025X series features CANopen networking, a RS-232 port or 3 Voltage Outputs for communicating the angular measurement. The inclinometer series also supports the SAE J1939 CAN interface under the p/n’s AX0602XX. The J1939 inclinometer is fully configurable using the Axiomatic Electronic Assistant programming tool for PCs. All units are packaged for an IP67 rating with M12x2 5-pin connectors or a M12 x1 5-pin. A mating plug with CAN termination resistor is available.
The inclinometer is designed to measure inclination angle in two orthogonal sensing directions X and Y in the range of up to ±90º. If vertically installed, it can measure an inclination angle in one sensing direction in the ±180º (0-360º) range.
The angles are measured by a two-axis MEMS sensor, which senses acceleration caused by the gravity force. The output signals from the MEMS sensor are normalized and processed by a microcontroller to receive inclination angles. The resolved angles can be then sent to the CAN bus, RS232 port or output as 3 0-5V signals.
Due to a powerful microcontroller, the inclinometer can perform pre-processing of the angular information according to the users’ needs. Its internal architecture is user-programmable and allows users to define their own custom functionality using a set of predefined internal functional blocks. For J1939 models, application programming is performed through the CAN interface by the PC-based Axiomatic Electronic Assistant software. For CANopen® models, application programming is achieved via standard and commercially-available tools for CANopen®.
In a tilt sensor application, an out-of-range state can be transmitted as one of its outputs.
Applications:
Inclinometer – An integral part of a position control system or subsystem for construction equipment (excavators)
and after-market excavator attachments.
Tilt Sensor – Provides out of level indication for lift equipment and other machines.
