CAN Isolators/Routers
The CAN isolators/routers feature fast and bi-directional data exchange between multiple CAN buses and, depending on the model, can exchange data between multiple CAN, RS-485, and Ethernet protocols. The modules can be configured as a switch to broadcast messages on all ports, and are user configurable via the Axiomatic Electronic Assistant. The CAN isolators and routers are designed for communica...

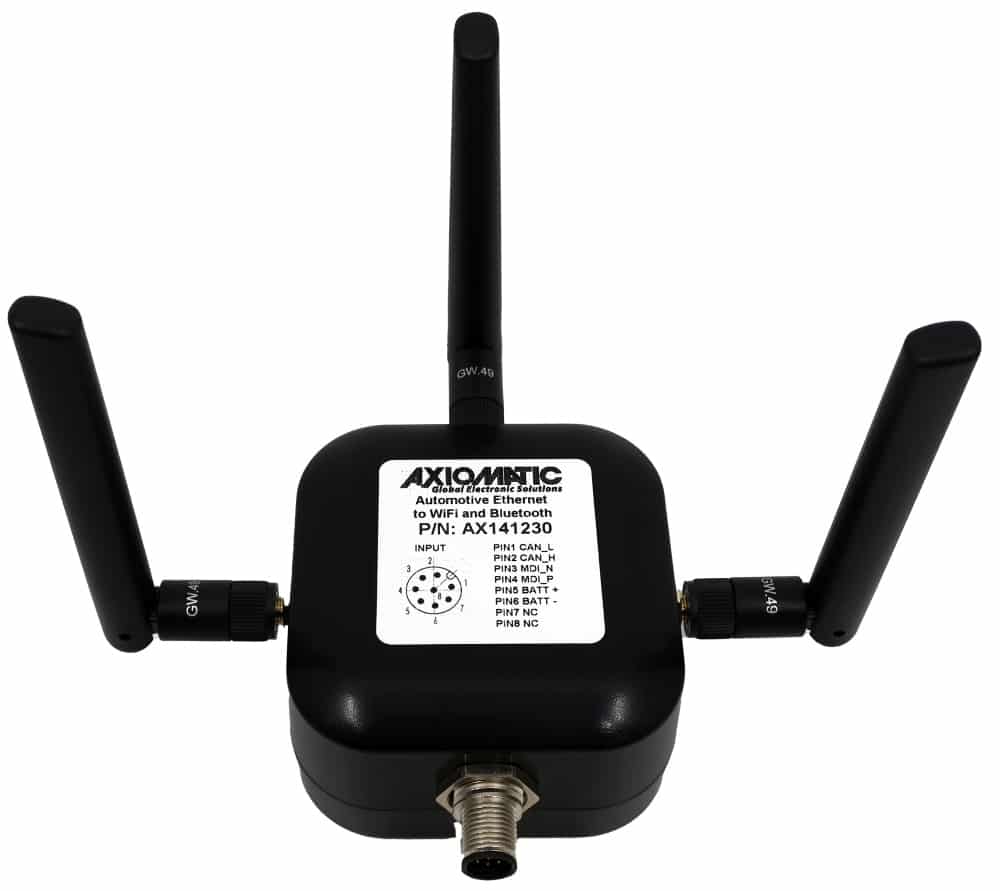

Automotive Ethernet Converters
The Automotive Ethernet Converters in the category provide purely physical, bi-directional conversions between Automotive Ethernet, Ethernet, CAN, Wi-Fi, and Bluetooth® networks via PHY transceivers. Automotive Ethernet networks use a 2 wire, twisted pair cable saving on cabling costs for the machine builder. The Automotive Ethernet to Ethernet converters support baud rates of up to 1000 Mbit/s d...

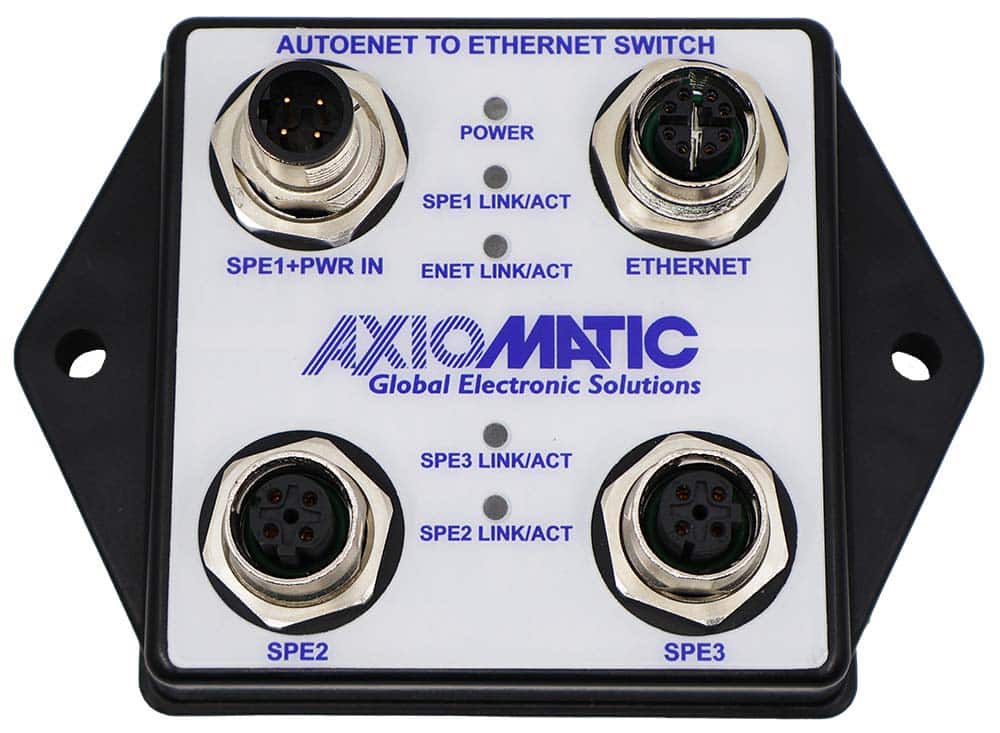

Automotive Ethernet Switches
The Automotive Ethernet switches are designed for industrial and automotive applications requiring 100BASE-T1 to 10GBASE-T (depending on the selected model) Ethernet switch functionality. The default functionality for each of the featured switches is Slave mode. Each switch port can be individually configured to support Master or Slave mode with transmission/communication speeds of 10 Mbit/s, 100 ...
Ethernet/CAN Converters
The Ethernet/CAN converters operate as simple data converters capable of handling communication between CAN bus and Ethernet IEEE 802.3, IP ICMP, ARP, UDP, TCP, HTTP or proprietary protocols. They can interface with SAE J1939, CANopen®, or CAN FD (Flexible Data-rate) depending on the model of the device. Communication can occur in both directions. The Ethernet port can communication up to 100 Mbp...

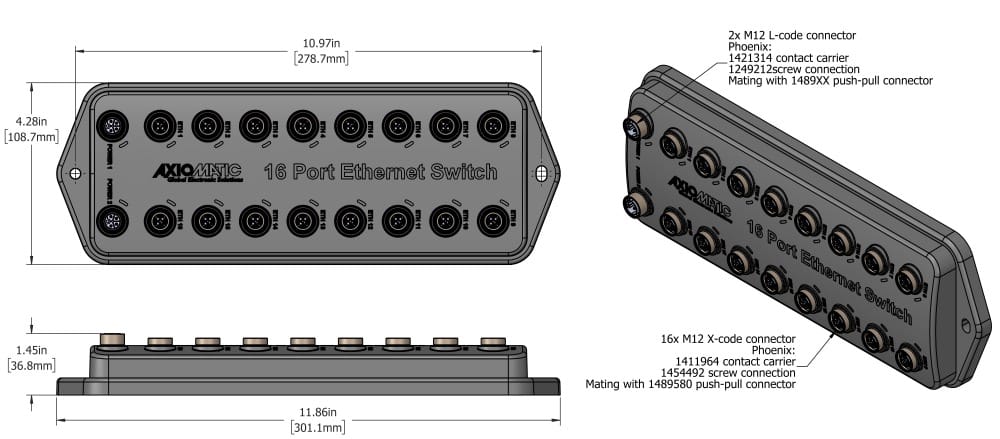

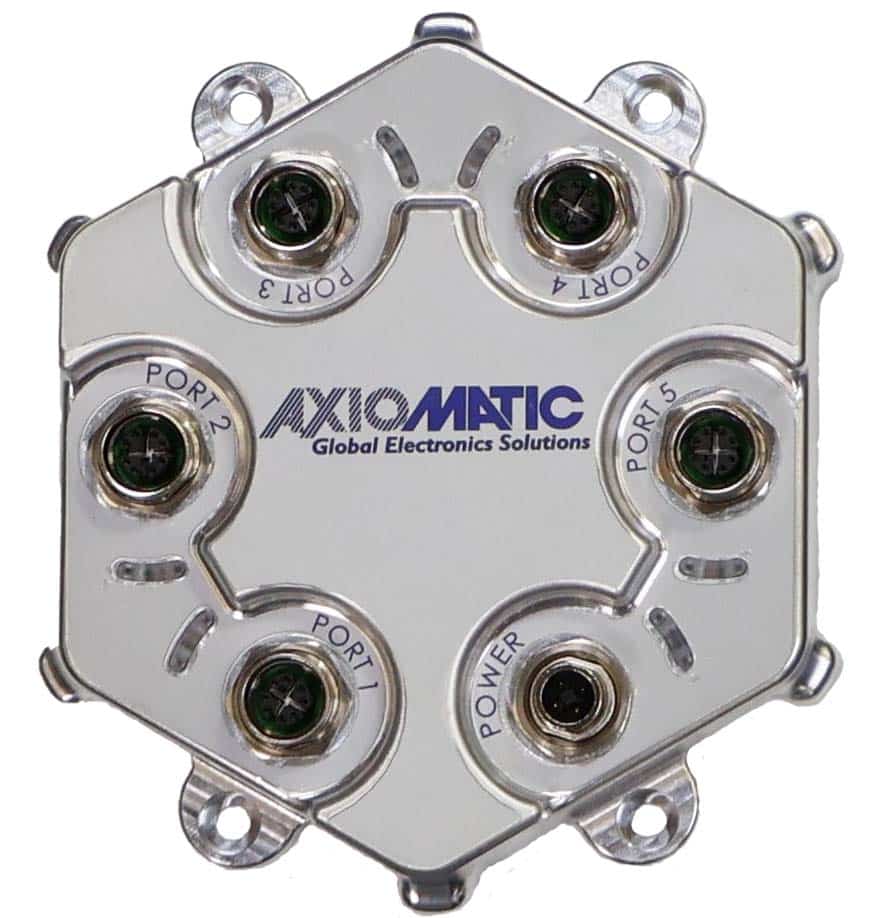

Ethernet Switches
Axiomatic offers a range of rugged Ethernet Switches. The number of ports, transmission speed, and enclosure depends on the model. Many of these devices operate as an unmanaged switches capable of handling communication with multiple Ethernet devices simultaneously. Some models can communicate at up to 10 Gigabit per second (Gbps) and have LEDs to indicate the state of the individual ports.
Ethernet Switches with PoE
The Ethernet Switches operate as unmanaged switches that are capable of handling the communication of different Ethernet capable devices. The devices can be utilized to reduce machine cabling. The devices have LED indicators showing the status of each port. The Ethernet switches in this category can be powered through the power input port with an input voltage of 12 or 24 VDC nominal.
Modbus TCP/IP Converters
The Modbus TCP/IP Converters operate as bidirectional data converters capable of handling both Modbus TCP/IP and SAE J1939 CAN bus communications, with some models additionally interfacing with Modbus RTU. The protocol converters are user configurable via the Axiomatic Electronic Assistant (sold separately). The Modbus TCP/IP protocol converters are IP67 rated and suitable for harsh operating envi...
Modbus RTU Converters
The Modbus RTU Converters operate as bidirectional data converters capable of handling both Modbus RTU and CAN bus communications, with some models additionally interfacing with Modbus TCP/IP. The protocol converters are user configurable using standard CANopen® interface tools (not supplied) for CANopen® models or via the Axiomatic Electronic Assistant (sold separately) for SAE J1939 models. Th...
Ethernet TCP/IP Gateways
The Ethernet TCP/IP Gateways feature fast bidirectional data exchange between Ethernet TCP/IP and a CAN bus network with some models additionally interfacing with Modbus RTU. An Ethernet TCP/IP speed of up to 1 Mbit/s and a CAN baud rate up to 100 Mbit/s are accepted. The protocol gateways are user configurable via the Axiomatic Electronic Assistant (sold separately) for SAE J1939 models or via an...
Isolated Protocol Converters with CAN & Modbus RTU or J1587
The isolated protocol converters with CAN and Modbus RTU or J1587 gateway between two CAN ports and one RS-485 port. Supported CAN bus communications include SAE J1939 and CANopen®. Each model only supports communication with Modbus RTU or SAE J1587. The isolated protocol converters operate from a 12 or 24 VDC nominal input power (9 to 36 VDC). Depending on the selected model, the converters prov...
LIN/CAN Protocol Converters
The protocol converters feature data exchange between a LIN network and a CAN network and are operational from 9 to 32 VDC. The LIN to CAN Protocol Converters are IP67 rated and compact in size, ensuring they are suitable for applications such as agricultural equipment, mobile/off-highway equipment, and trucks/commercial vehicles. Each converter features one single-pin LIN 2.2A port and one CAN po...
CAN to Bluetooth® Modules
The CAN to Bluetooth® modules transfer wireless data to a PC, smartphone, tablet, or display. The device setpoints are user configurable using the CAN2BT (no longer updating) or CAN2BLE configuration smartphone application, available in the Android and Apple iOS app stores. The CAN to Bluetooth® modules communicate via CAN bus protocol (SAE J1939 or CANopen®, depending on the selected model) an...
RS-232 to CAN Modules
The RS-232 to CAN devices available for purchase are a data logger, an Ethernet / RS-422 / 2 RS-232 / SAE J1939 protocol converter, and an RS-232 to CAN converter. All the RS-232 to CAN modules interface with SAE J1939 CAN networks and require a power supply voltage of 12 or 24 VDC nominal. The units are all IP67 rated and either laser welded or ultrasonically welded.
CAN/Wi-Fi Modules
The multi-functional, bi-directional interface CAN to Wi-Fi Converters enable a secure and reliable wireless connectivity, even in the harshest conditions. The converters are used in wireless CAN bus monitoring in off-highway, mining, industrial machines, and control systems. The converters offer remote bi-directional CAN bus accessibility over a wireless link and act as a wireless bridge. The mod...
Protocol Converter, Ethernet / RS-422 / RS-485 / RS-232 / CAN (SAE J1939)
The Protocol Converter comes pre-programmed with standard protocol conversion logic for bidirectional data exchange between Ethernet (proprietary TCP communications), RS-422 bus, RS-232 bus, RS-485 bus, and CAN network (SAE J1939). Data is forwarded “as-is” between the different serial ports. Also, CAN / Ethernet data is forwarded directly to serial interfaces with the configuration allowing t...
1 Universal Input Signal, 2 CAN, RTC Modules
The RTC modules accept time and date information with a Real-Time-Clock (RTC) battery backup, have one universal signal input, and two CAN bus ports (SAE J1939 or CANopen®, depending on the selected model). The RTC controllers are user configurable using standard CANopen® tools (not supplied) or the Axiomatic Electronic Assistant (sold separately). An input voltage of 12, 24, or 48 VDC nominal...
CAN ID NFC Controller
The CAN ID NFC Controller can mimic the CAN ID of another controller enabling users to configure certain parameters of those controllers without powering them on. This feature is especially useful when the unit is installed in a system requiring tuning. The controller does not need to be isolated from the system and powered externally to perform the tuning. Instead, it can be configured with the s...
CAN to USB Converters
The CAN to USB converters have one high-speed USB 2.0 Type-C port (up to 480 Mbit/s) and one high-speed CAN port (with configurable baud rates up to 1 Mbit/s). All standard and extended CAN frames, including data and remote frames, are supported. Galvanic isolation of the CAN ports ensure no electrical interference between the HMI (or computer) and the equipment connected to the CAN port. The conv...
Data Loggers
The Axiomatic data logging technology provides fast and bi-directional data exchange between a variety of networks such as Ethernet, CAN, and RS-232. The devices provide data logging to an internal embedded Multi-Media Card (eMMC) for storing both the operating system and the logged data. The eMMC contains both Linux image and data logging partitions. A supercapacitor (supercap) provides backup po...
Fiber Optic to CAN Modules
These Fiber Optic (FO) to CAN modules act as a converter or as a bridge and are best suited for power gen set engine control systems. The modules operate at 12 or 24 VDC nominal (8 to 36 VDC) and provide 2-way isolation for fiber optic and CAN. These modules feature LED indicators for FO status. The green LED indicates a connected status. The red LED indicates a disconnected/not working status. ...
Modbus RTU to Modbus TCP/IP Routers with CAN
The Modbus RTU to Modbus TCP/IP converters feature fast data exchange between a CAN network (SAE J1939), RS-485 (Modbus RTU), and Ethernet (Modbus TCP/IP). Model AX141810A offers bidirectional Modbus (RTU+TCP/IP) to CAN protocol conversion. Model AX141830A acts as a CAN to Modbus (RTU+TCP/IP) router. The Modbus routers are user configurable using a web browser and are supported by the Axiomatic El...
Automotive Ethernet to CAN Converters
The Axiomatic Automotive Ethernet to CAN Converter provides a purely physical, bi-directional conversion between Automotive Ethernet (100BASE-T1) and CAN 2.0B via PHY transceivers. No packets are stored or modified in this device. The Automotive Ethernet fieldbus supports bit rates of 100 Mbps and the CAN bus supports baud rates up to 1 Mbps. Status LEDs provide information on connection link, and...

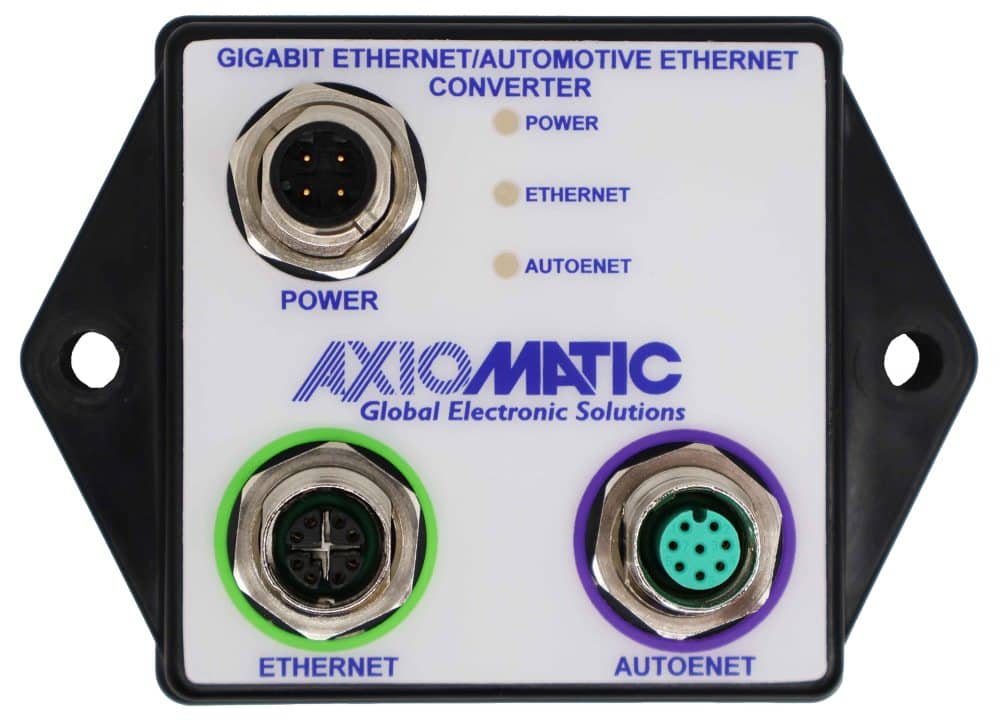

Automotive Ethernet to Ethernet Converters
The Automotive Ethernet to Ethernet Converters provide bi-directional conversion between Automotive Ethernet (1000BASE-T1), and Ethernet via PHY transceivers. Status LEDs provide information on connection link, and communication. The Automotive Ethernet to Ethernet Converters are designed for the harsh environments of off-highway or industrial equipment. Automotive Ethernet networks use a 2 wire, ...
Protocol Converters, SAE J1939, SAE J2497
The Protocol Converter utilizes bi-directional message conversion between SAE J2497 and SAE J1939, with 1 isolated CAN port (SAE J1939) accompanied by auto-baud-rate detection. It is configurable with the Electronic Assistant. It comes in a fully sealed compact enclosure with a rugged IP67 protection rating.
Can’t find what you’re looking for?
We offer fresh design ideas and rapid prototyping that caters to the needs of OEM’s from different industries relying on battery-powered control systems. Contact us for customization or new product design.
