The Laser Receiver has a laser detection diode array consisting of 40 diodes. The diode array is 190 mm in length and it can be configured to detect one or two independent rotating laser beams. It has multiple configuration options to suit a variety of machine applications.
2 Parts
View AllThe units measure pitch and roll inclination angles in a full ±180 degree orientation range. The angles can be compensated by a 3D gyroscope to minimize the influence of dynamic linear accelerations caused by vibrations and machine operational movements. The units can also output gravity angle; pitch, roll and yaw angular rates, and unit accelerations in three orthogonal directions. The inclinome...
3 Parts
View AllThe inclinometer is designed to accurately measure inclination angles in three directions X, Y and Z in the range of ±180º. The angles are measured by a two-axis MEMS sensor, which senses acceleration caused by the gravity force in three orthogonal directions. The output signals from the MEMS sensor are normalized and processed by a powerful microcontroller to receive inclination angles.
4 Parts
View AllThe triaxial inclinometers are designed to accurately measure inclination angles in three directions and in the range of ±180º. Due to the powerful microcontroller, the inclinometers can perform pre-processing of the angular information according to the users needs.
3 Parts
View AllThe triaxial inclinometer provides reliable, real-time, accurate and stable slope angle data.
1 Parts
View AllWe offer fresh design ideas and rapid prototyping that caters to the needs of OEM’s from different industries relying on battery-powered control systems. Contact us for customization or new product design.
Tell Us Your RequirementsTriaxial Gyroscope Inclinometer, SAE J1939, M12 Connectors
High Performance Triaxial Inclinometer, SAE J1939, DT13-4P Connector, Integral CAN Termination

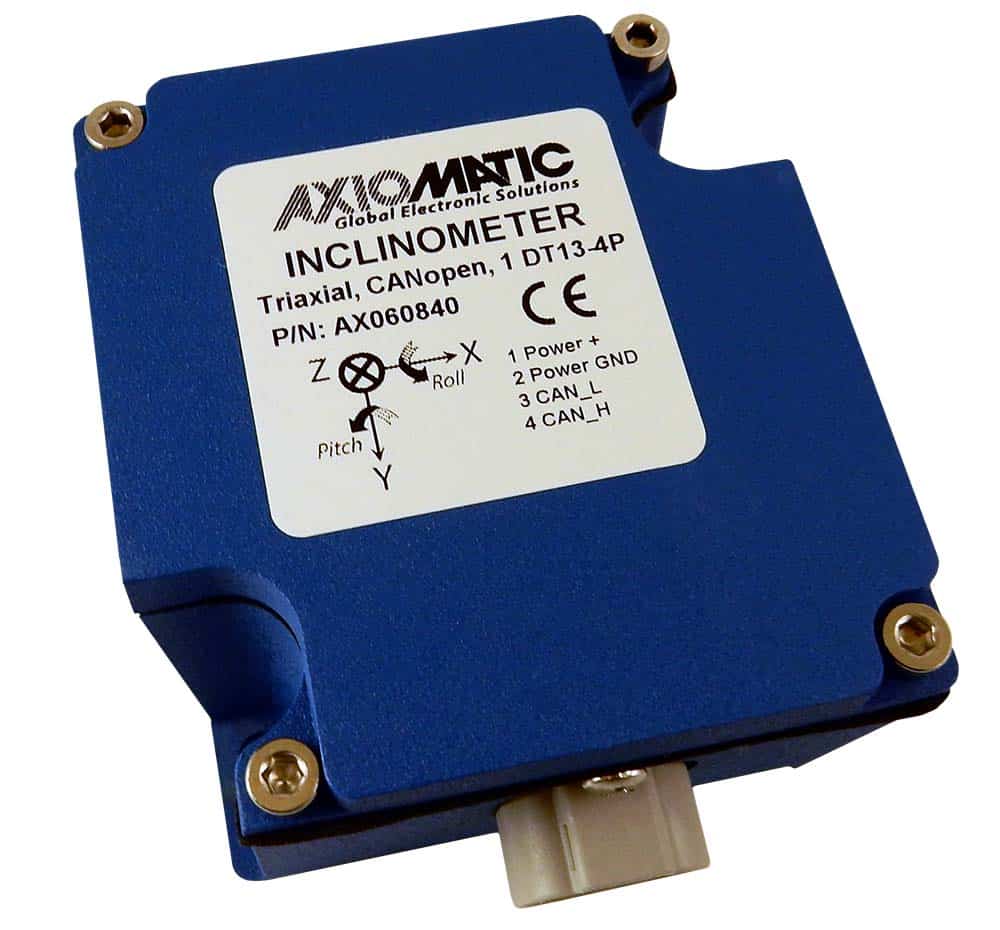

High Performance Triaxial Inclinometer, CANopen®, DT13-4P Connector

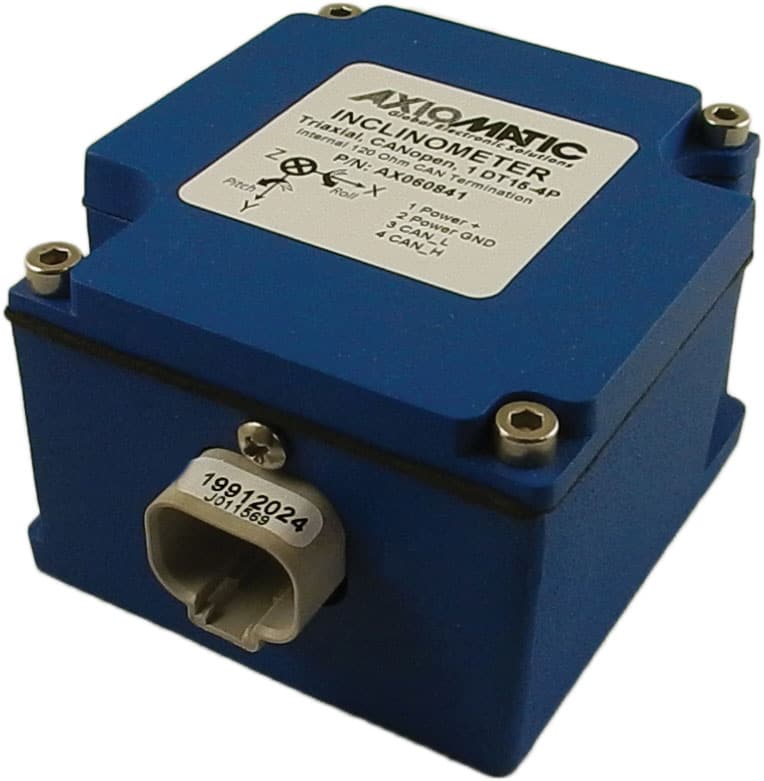

High Performance Triaxial Inclinometer, CANopen®, DT13-4P Connector, Integral CAN Termination

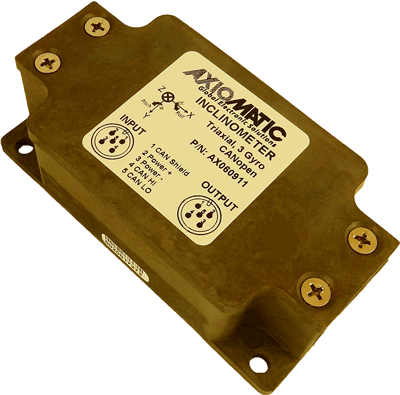

Triaxial Gyroscope Inclinometer, CANopen®, M12 Connectors

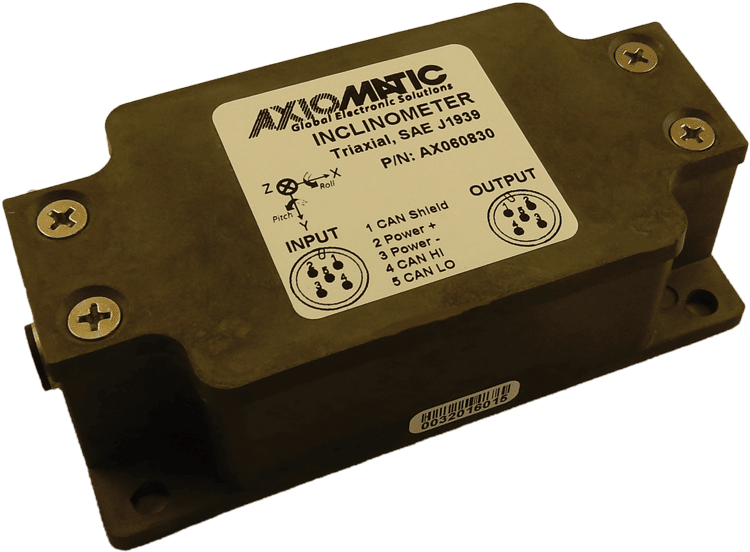

High Performance Triaxial Inclinometer, SAE J1939, M12 Connectors

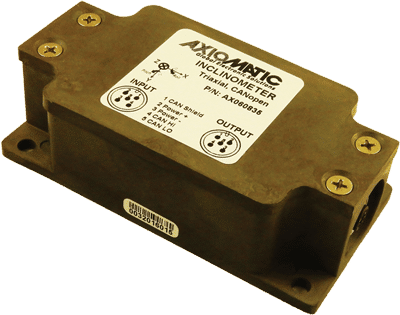

High Performance Triaxial Inclinometer, CANopen®, M12 Connectors

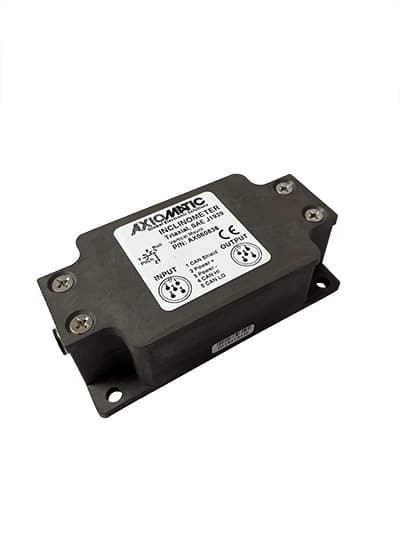

High Performance Triaxial Inclinometer, SAE J1939, M12 Connectors, Vertical Mount
