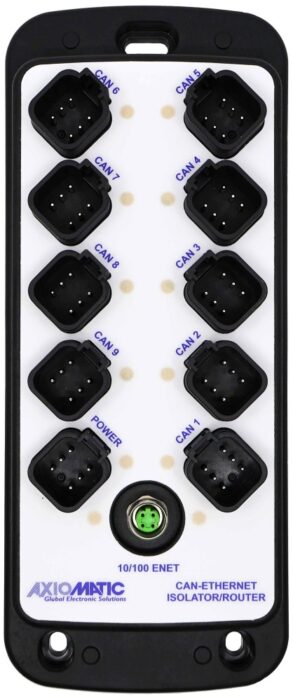

The AX141620 controller may be configured as a switch to broadcast messages on all ports, or it can modify an address or change a source address before sending it out on another port. It features configurable baud rate and a configurable termination resistor avoiding the need for external resistors. An individual bicolour LED indicates status for each port. Input CAN ports have a configurable Power Output that has a self-resettable fuse.
The CAN Router may be used in mining or large machine control networks to route messages between 8 isolated CAN networks, 1 CAN, J1587, J1708 or RS-485 network and an Ethernet network.
Interfacing with machine battery power, it operates from 9 to 36VDC (12 or 24V nominal). The power converter is fully enclosed with an IP67 rating and features 10 6-pin rugged automotive-style connectors and 1 4-pin M12 D-coded connector.
It carries CE and UKCA marking and is designed for harsh environments having humidity, vibration, and shock. It operates from -40 to 85°C (-40 to 185°F).
The Ethernet port can be used for configuration or for more flexibility and cybersecurity, the Axiomatic Electronic Assistant may be utilized.
Visit https://www.axiomatic.com/product/9-can-1-ethernet-isolator-router-ax141620/ for more details.
