AX020720 is a flexible controller. It accepts one command signal input, drives a solenoid up to 5A, and offers flexible user configurability for application-specific input-output relationship with slope or time response.

It can be configured wirelessly using Near Field Communication (NFC) on any compatible device with Axiomatic’s E-Write NFC application. Communication happens over the globally available radio frequency ISM band 13.56 MHz when the NFC device is brought within 3 cm or 1 inch of the controller. This distance may vary with different devices. The E-Write NFC application is available for iOS from Apple’s App Store and for Android from Google Play Store for a fee.

The AX020720 operates from -40 to 85°C (-40 to 185°F). It is designed to interface with 12 or 24 V battery power. It is suitable for machine and industrial applications.

The controller is available in 3 models; PCB Assembly with screw terminals (P/N: AX020720), PCB installed in a metal box with PG9 strain relief (P/N: AX020720-PG9), or a PCB installed in a metal box with PG9 strain relief and 1.5 m unterminated cable (P/N: AX020720-1.5M). The latter two models have IP67-rated protection when the cable is installed properly.

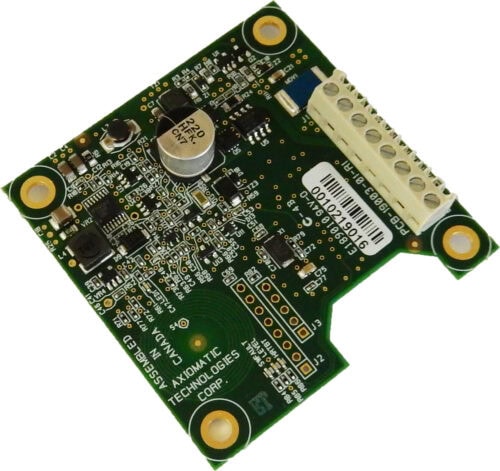

AX020720 – PCB assembly with screw terminals

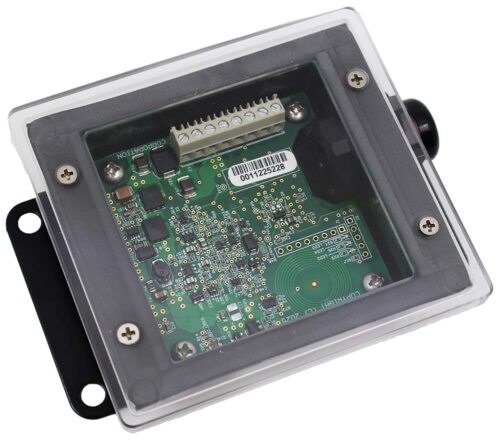

PCB installed in metal box (AX020720-PG9)

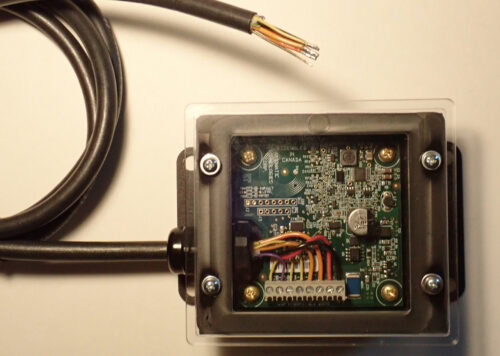

PCB installed unterminated cable in a metal box with 1.5m (AX020720-1.5M)



For more details about AX020720, please visit: https://products.axiomatic.com/viewitems/valve-controls/universal-input-single-output-valve-controllers

The AX020720 controller comes from our extensive line of controllers, some of which can be conveniently configured using NFC.

  • AX024010, 4 Inputs, 2 Bidirectional 0-400 mA Outputs Valve Controller, SAE J1939, DIN Rail Mount, NFC
  • AX022420, 2 Universal, Encoder and Magnetic Pick-up Sensor Inputs, Dual Valve Controller, SAE J1939, DIN Rail Mount, NFC
  • AX031950, Bipolar Input, Relay and Analog Signal Output Controller, SAE J1939, NFC, DIN rail mount
  • AX130540, Isolated, Dual Channel, Universal Signal Converter, SAE J1939, DIN rail mount, NFC

Our range of valve drivers and controllers can be viewed here: https://products.axiomatic.com/category/valve-controls
