Universal Input, Single Output, 5A Valve Controller, Near Field Communication, PCB, Screw Terminals

Item # AX020720 — Universal Input, Single Output, 5A Valve Controller, Near Field Communication, PCB, Screw Terminals

All Downloads

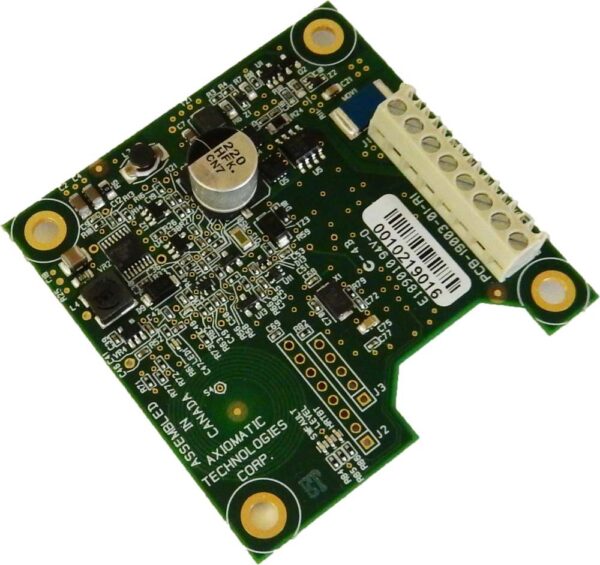

The AX020720 Universal Input, Single Output Controller with Near Field Communication (NFC) accepts one command signal input and drives a solenoid up to 5 A. The single input, single output controller PCB is designed to interface with a 12 or 24 VDC battery power (9 to 36 VDC) and features screw terminals and a protection rating of IP00. Using NFC, the wireless valve controller is remotely configurable via the E-Write NFC smartphone application. Bringing the phone within 3 cm (1 inch) of the PCB, the NFC technology uses magnetic induction between two loop antennas to communicate within the globally available radio frequency ISM band of 13.56 MHz. Programing the PCB assembly before installing it in any enclosure is recommended as distance may vary between phones.

There are 2 other models available, both featuring a metal box enclosure with PG9 strain relief:
AX020720-1.5M — Universal Input, Single Output, 5A Valve Controller, Near Field Communication, PCB, Metal Box, PG9 Strain Relief, 1.5M Cable
AX020720-PG9 — Universal Input, Single Output, 5A Valve Controller, Near Field Communication, PCB, Metal Box, PG9 Strain Relief

The E-Write NFC application for Android and iOS devices is available for download from the Google Play Store and the Apple App Store for a fee.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Technical Specifications

Universal Input, Single Output, 5A Valve Controller, Near Field Communication, PCB, Screw Terminals

Order Code

P/N: AX020720

No. of Input(s)

Input(s)

1 universal input, user selectable as follows:
Voltage (±5 V, ±10 V)
Current (0-20 mA, 4-20 mA)
PWM duty cycle (0-100%)
Frequency (0.5 Hz to 10 kHz)
Digital (active high, active low)

No. of Output(s)

Output(s)

1 output to drive a solenoid output, user programmable as follows:
Proportional voltage (up to Vps)
Proportional current (up to 5 A)
Hotshot digital (up to 5 A)
PWM (1 Hz to 25 kHz, duty cycle 0-100%)
Digital on/off

Reference Voltage(s)

+5 V, 50 mA

No. of Communication Port(s)

Communications

Near Field Communication (NFC)

Operating Voltage

12/24 VDC nominal (9-36 VDC)

Control Logic

Standard embedded software is provided.
A user programmable functionality is accessible.

No. of Pins

Connection(s)

1x 8-pin screw terminal block, Wieland P/N: 25.197.0853.0

Protection Rating

IP00 for PCB

Operating Temperature

-40 to 85 ºC
-40 to 185 ºF

Compliance

CE / UKCA marking

User Interface

The user programmable functionality is accessible using the E-WRITE NFC Application (available for download from the Google Play Store and the Apple App Store for a fee)

Applications

Suitable for industrial and machine applications.

Configuration Accessories

E-WRITE NFC Application for iOS devices

E-WRITE NFC Application for Android devices
