Isolated, Dual Channel, Universal Signal CAN Converter, SAE J1939, NFC, DIN Rail Mount

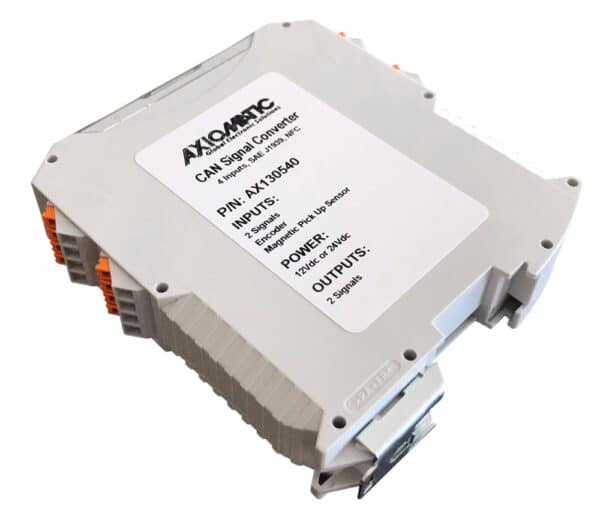

Item # AX130540 — Isolated, Dual Channel, Universal Signal CAN Converter, SAE J1939, NFC, DIN Rail Mount

All Downloads

The Isolated Dual Channel Universal Signal CAN Converter accepts 2 universal signal inputs (voltage, current, resistive, PWM, frequency/RPM, or digital). Additionally, 1 magnetic pick up sensor and 1 encoder input is also supported. It provides 2 signal outputs (voltage, current, PWM, frequency, mixed, or digital). The unit can network with engine control system over CAN SAE J1939 bus. The unit has 4-way isolation between power, inputs, outputs, and CAN. Using the Android or iOS E-Write NFC application wirelessly or the Axiomatic Electronic Assistant programming tool over CAN bus, the user can configure the inputs and outputs and CAN parameters to suit the application.

A +5V, 50 mA reference is available to power a sensor. A rugged power supply interface accepts 12 Vdc or 24 Vdc nominal. LEDs indicate operational status. The enclosure is DIN rail mount. It operates from -40 to 85°C (-40 to 185°F).

The E-Write NFC application for Android and iOS devices is available for download from the Google Play Store and the Apple App Store for a fee.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Technical Specifications

Isolated, Dual Channel, Universal Signal CAN Converter, SAE J1939, NFC, DIN Rail Mount

Order Code

P/N: AX130540

Input(s)

1 magnetic pick up input

1 encoder input

2 universal signal inputs selectable as follows.
0-5V, 0-10V, +/-5V, +/-10V
0-20mA, 4-20mA, 0-200mA
Resistive
PWM
Frequency
Digital

Output(s)

2 universal signal outputs configurable as follows.
0-5V, 0-10V, +/-5V, or +/-10V
0-20 mA, 4-20 mA
PWM, frequency, or mixed
Digital

Communications

1 CAN port (SAE J1939)

Operating Voltage

12Vdc or 24Vdc

Control Logic

Standard embedded software is provided.

Enclosure

Polyamide (UL94V0, cULus recognized, China RoHS)
DIN rail mount
Phoenix Contact: ME MAX 22,5 2-2 KMGY - 2713625

User Interface

The user programmable functionality is accessible using the E-WRITE NFC Application or the Axiomatic Electronic Assistant (EA), P/N: AX070502 or P/N: AX070506K

*The E-Write NFC application for Android and iOS devices is available for download from the Google Play Store and the Apple App Store for a fee.

Applications

Industrial Control Panels
Power Gen Set Engine Control Systems
Oil and Gas Equipment Automation
Off-highway Machine Automation

Accessories

E-WRITE NFC Application for iOS devices

E-WRITE NFC Application for Android devices

AX070502, Axiomatic Electronic Assistant KIT (AX070501 USB-CAN Converter, 2 Cables, Installation Instructions)

AX070506K, Axiomatic Electronic Assistant KIT III (AX070506 USB-CAN Converter, 3 Cables, Installation Instructions)

More +

Downloads

Datasheet

AX130540 Datasheet

User Manual

AX130540 User Manual

2D Drawing

AX130540 Drawing

STEP File

AX130540 Housing Assembly

Compliance

RoHS - DoC - All

LVD - DoC - All
