Universal Input, Single Output (5A) Valve Controller, Near Field Communications, Metal Box, 1.5 m Cable

Item # AX020720-1.5M — Universal Input, Single Output (5A) Valve Controller, Near Field Communications, Metal Box, 1.5 m Cable

All Downloads

As a highly flexible controller, it accepts one command signal input and drives a solenoid up to 5 A. Many control profile parameters are user configurable. A PCB form factor is available. Operation is from -40 to 85°C. Designed to interface with 12 or 24 V battery power, it is suitable for machine and industrial applications.
Using Near Field Communication (NFC), the wireless valve controller is remotely configurable via Axiomatic E-Write NFC smartphone application. Bringing the two devices within 3 cm* (1 inch) of each other, the NFC technology uses magnetic induction between two loop antennas to communicate within the globally available radio frequency ISM band of 13.56 MHz.

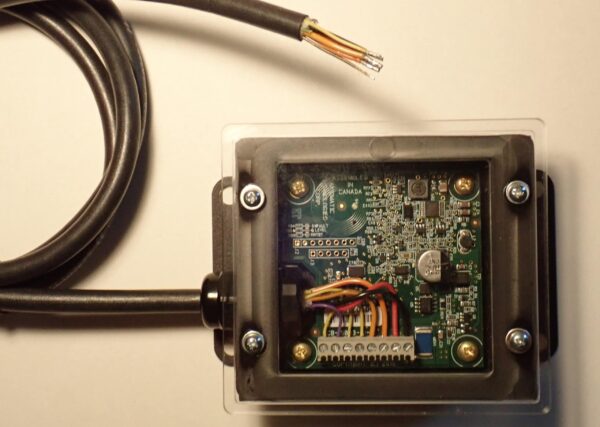

There are 3 models available: PCB Assembly (AX020720), PCB installed in a metal box with PG9 strain relief (AX020720-PG9), or a PCB installed in a metal box with 1.5 m unterminated cable (AX020720-1.5M).
*The distance will vary with different phones.

The E-Write NFC application for Android and iOS devices is available for download from the Google Play Store and the Apple App Store for a fee.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Technical Specifications

Universal Input, Single Output (5A) Valve Controller with Near Field
Communication (NFC)
Configurable using E-WRITE NFC Application on Android and Apple iOS devices

Order Code

P/N: AX020720-1.5M

Input(s)

1 universal input, user selectable as:
Voltage
Current
PWM
Frequency
Digital

No. of Output(s)

Output(s)

Up to 5A
Half-bridge, High Side Sourcing, Current Sensing, Grounded Load High Frequency (25 kHz)

Users can select the following options for output using the E-Write NFC:
Proportional Output Current (with current sensing) (0-5A)
Proportional Output Voltage (up to Vps)
Output PWM Duty Cycle (0-100% D.C.)
Digital On/Off (Gnd-Vps)

LED Outputs

4 LED

V Ref

5V, 50 mA

Proportional And On Off Solenoid

1 (5A)

Control Logic

E-WRITE NFC Application for iOS devices
E-WRITE NFC Application for Android devices

Enclosure

Metal box with a gasket and PG9 strain relief
1.5m unterminated cable

No. of Connections

Protection Rating

IP00 for the PCB
IP67 for the metal box with the 1.5m cable

Compliance

CE / UKCA marking

User Interface

The user programmable functionality is accessible using the E-WRITE NFC Application (available for download from the Google Play Store and the Apple App Store for a fee)

Applications

Machine and Industrial Applications

Analog Input

4-20 mA, 0-20 mA (1)
0-5 V, 0-10 V (1)
± 5 V, ± 10 V (1)

Digital Inputs

Frequency (1)
PWM (1)
Digital (1)

More +

Downloads

Datasheet

AX020720-1.5M Datasheet

User Manual

AX020720 User Manual

2D Drawing

AX020720-1.5M Drawing

Compliance

RoHS - DoC - All

LVD - DoC - All

Universal Input, Single Output (5A) Valve Controller, Near Field Communications, Metal Box, 1.5 m Cable-main
