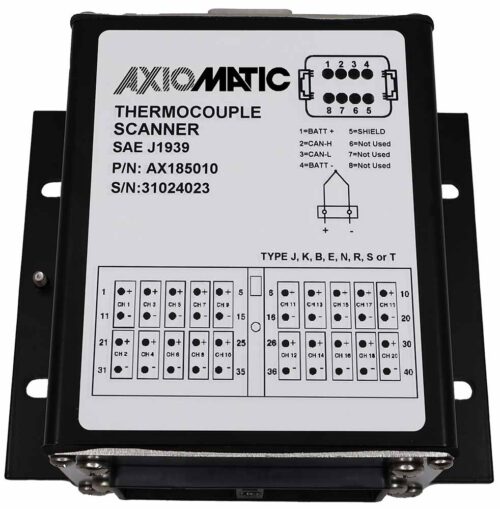

AX185010 is an isolated 20 channel thermocouple (TC) scanner designed for thermocouple integrity in control systems of both stationary and portable industrial and power generator sets. AX185010 includes full isolation between each input, the CAN line, and the power supply. The TC scanner provides engine temperature information such as exhaust, winding, and fluid temperatures to the SAE J1939 CAN bus network. The AX185010 module features auto-baud-rate detection for the SAE J1939 CAN network and is configurable using the Axiomatic Electronic Assistant, P/N: AX070506K.
AX185010 — 20 Channel Thermocouple Scanner, Isolated, SAE J1939
The Isolated Thermocouple Scanner monitors up to twenty 2-wire thermocouple inputs, independently programmable as TC types J, K, B, E, N, R, S, or T. The input channels can also be connected to junction-grounded thermocouples too. Temperature data is automatically sent over the CAN bus when power is applied. Integral diagnostics determine thermocouple integrity. AX185010 operates from -40 to 85 ºC (-40 to 185 ºF) with 12 or 24 VDC nominal (9 to 60 VDC) power. This rugged, IP67-rated thermocouple scanner features TE Deutsch connectors and can be mounted directly in the power generator set.
For more details, please visit the AX185010 webpage.
Axiomatic is developing a CANopen® version of this product, P/N: AX185011.
AX185010 is the newest addition to Axiomatic’s Thermocouple (TC) Modules line-up.
Below is a brief comparison of all currently available TC Modules.
| Part Number | Inputs | Isolation | Communications |
|---|---|---|---|
| AX189000 | 1x TC input 2x signal inputs | The TC input and CAN line are isolated from the power supply and other inputs. | 2x SAE J1939, ABR |
| AX189001 | 1x TC input 2x signal inputs | The TC input and CAN line are isolated from the power supply and other inputs. | 2x CANopen® |
| AX030341 | 1x TC input 3x signal inputs 12x digital inputs | The TC input is fully isolated from the CAN line, the power supply, and other inputs. | 1x CANopen® |
| AX188000 | 2x TC inputs | All inputs are fully isolated from the CAN line, the power supply, and all other inputs. | 1x SAE J1939, 250 kbps |
| AX188000-01 | 2x TC inputs | All inputs are fully isolated from the CAN line, the power supply, and all other inputs. | 1x, SAE J1939, 500 kbps |
| AX188000-02 | 2x TC inputs | All inputs are fully isolated from the CAN line, the power supply, and all other inputs. | 1x SAE J1939, 1 Mbps |
| AX188001 | 2x TC inputs | All inputs are fully isolated from the CAN line, the power supply, and all other inputs. | 1x CANopen® |
| AX181000 | 4x TC inputs 10x signal inputs | The CAN lines are isolated from the signal inputs and the TC inputs. | 1x SAE J1939, 250 kbps |
| AX181000-03 | 4x TC inputs 10x signal inputs | The CAN lines are isolated from the signal inputs and the TC inputs. | 1x, SAE J1939, 500 kbps |
| AX181001 | 4x TC inputs 10x signal inputs | The CAN lines are isolated from the signal inputs and the TC inputs. | 1x CANopen® |
| AX189000 | 6x TC inputs | All inputs are fully isolated from the CAN line, the power supply, and all other inputs. | 1x SAE J1939, 250 kbps |
| AX186000 | 6x TC inputs | All inputs are fully isolated from the CAN line, the power supply, and all other inputs. | 1x SAE J1939, 500 kbps |
| AX186000-01 | 6x TC inputs | All inputs are fully isolated from the CAN line, the power supply, and all other inputs. | 1x SAE J1939, 1 Mbps |
| AX186000-02 | 6x TC inputs | All inputs are fully isolated from the CAN line, the power supply, and all other inputs. | 1x CANopen® |
| AX186001 | 20x TC inputs | All inputs are fully isolated from the CAN line and power supply. | 1x SAE J1939, ABR |
| AX185000 | 20x TC inputs | All inputs are fully isolated from the CAN line and power supply. | 1x SAE J1939, 250 kbps |
| AX185000-10 | 20x TC inputs | All inputs are fully isolated from the CAN line and power supply. | 1x CANopen® |
| AX185001 | 20x TC inputs | Each of the TC inputs are isolated from each other. The inputs, CAN line, and power supply are isolated. | 1x SAE J1939, ABR |
| AX185010 | 20x TC inputs 2x RTD inputs 4x signal inputs 6x relay inputs | All inputs are fully isolated from the CAN line and power supply. | 2x SAE J1939, ABR 1x Ethernet, Modbus TCP/IP |
You can browse through our catalog of Thermocouple (TC) Modules and other Engine Temperature Monitoring Solutions.
Axiomatic specializes in the design and production of control solutions tailored for diverse applications where performance and reliability are of utmost importance. Our team of engineers are based in both Canada and Finland, while our manufacturing operations are located in Canada. Sales offices are in Australia, Canada, Finland and USA.
