20 Channel Thermocouple Scanner, SAE J1939

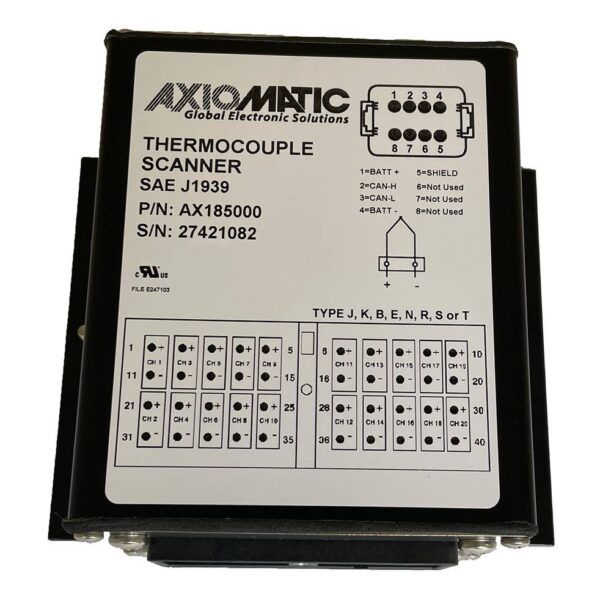

Item # AX185000 — 20 Channel Thermocouple Scanner, SAE J1939
The Thermocouple Module monitors up to 20 channels of several types of thermocouples. The engine temperature information is provided to the engine control system over a SAE J1939 bus. Temperature information can include exhaust temperature, winding temperature, and fluid temperature monitoring. All 20 channels of temperature data are automatically sent over the CAN bus when power is applied with no additional programming or configuration required. Integral diagnostics determine thermocouple integrity and thermocouple inputs are isolated from each other. The thermocouple module features rugged packaging and watertight TE Deutsch connectors. Applications include power generator sets.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
Technical Specifications
Thermocouple Scanner
Order Code
P/N: AX185000
Input(s)
20 thermocouple inputs
Supported TC input types are B, E, J, K, N, R, S, or T
CAN Port(s)
1 SAE J1939 port
Operating Voltage
9-32Vdc (12V or 24Vdc nominal)
Enclosure
5.86 x 5.72 x 2.87 inches
149.00 x 145.30 x 73.00 mm
(W x L x H excluding mating connectors)
Protection Rating
IP67
Operating Temperature
-40 to 85 ºC
-40 to 185 ºF
Compliance
CE / UKCA marking for EMC and RoHS Directives
Marine Type Approvals: ABS, BV, CCS, DNV, LR, and RINA
Accessories
AX070200, Plug Kit (DRC16-40S Connector, DT06-08SA Plug, W8S Wedgelock, Size 16 Sockets, Size 12-16 Sealing Plugs)
AX070502, Axiomatic Electronic Assistant KIT (AX070501 USB-CAN Converter, 2 Cables, Installation Instructions)
AX070506K, Axiomatic Electronic Assistant KIT III (AX070506 USB-CAN Converter, 3 Cables, Installation Instructions)
Datasheet
User Manual
2D Drawing
STEP File
Marine Type Approval(s)
