Remote Mount Solenoid Drivers

The Remote Mount Solenoid Drivers simplify control of proportional solenoids by supplying a current proportional to a 0-5 V input signal, 0-10 V input signal, or a 4-20 mA input signal. The solenoid drivers accept power supply voltages from 9 to 28 VDC. The drivers utilize high frequency switching output (PWM) to provide a DC current output. The options for current output include 2 A, 1.2 A, 800 mA, 600 mA or 400 mA. A current sensing circuit maintains output current regardless of changes in input voltage and coil resistance. The user can adjust maximum and minimum current. Ramp time, dither frequency, and amplitude can also be adjusted to match the application. A system of LEDs indicate the output power level, input level, and power on/off. The units are available as a stand alone PCB Board, DIN rail mount version for control cabinets or as a packaged driver enclosed in an IP65 or IP67 rated metal housing with cable provided. The drivers are designed for remote mounting.

Remote Mount Solenoid Drivers

The Remote Mount Solenoid Drivers simplify control of proportional solenoids by supplying a current proportional to a 0-5 V input signal, 0-10 V input signal, or a 4-20 mA input signal. The solenoid drivers accept power supply voltages from 9 to 28 VDC. The drivers utilize high frequency switching output (PWM) to provide a DC current output. The options for current output include 2 A, 1.2 A, 800 mA, 600 mA or 400 mA. A current sensing circuit maintains output current regardless of changes in input voltage and coil resistance. The user can adjust maximum and minimum current. Ramp time, dither frequency, and amplitude can also be adjusted to match the application. A system of LEDs indicate the output power level, input level, and power on/off. The units are available as a stand alone PCB Board, DIN rail mount version for control cabinets or as a packaged driver enclosed in an IP65 or IP67 rated metal housing with cable provided. The drivers are designed for remote mounting.

Remote Mount Solenoid Drivers
Parts

Showing 1–16 of 18 results

P/NPart NameAdd to Quote
RSDDR10V-0000001RSD-DR-10V-2A, 10V, 2A Remote Mount Solenoid Driver, DIN Rail Mount

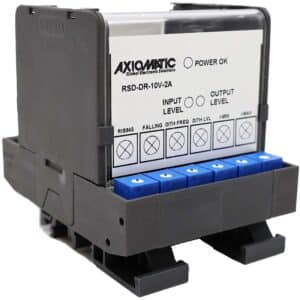

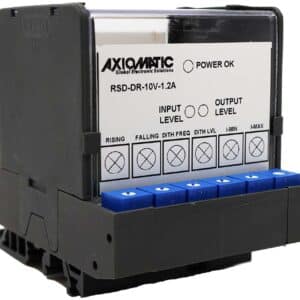

RSDDR10V-0000002RSD-DR-10V-1.2A, 10V, 1.2A Remote Mount Solenoid Driver, DIN Rail Mount

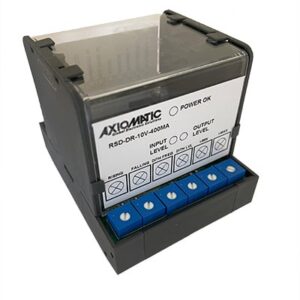

RSDDR10V-0000005RSD-DR-10V-400MA, 10V, 400mA Remote Mount Solenoid Driver, DIN Rail Mount

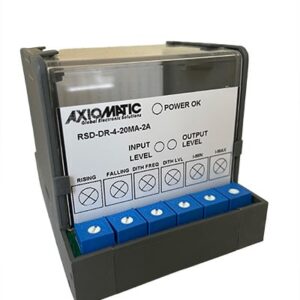

RSDDR420-0000001RSD-DR-4-20MA-2A, 2A Remote Mount Solenoid Driver, DIN Rail Mount

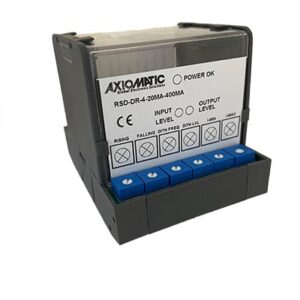

RSDDR420-0000004RSD-DR-4-20MA-400MA, 400 mA Remote Mount Solenoid Driver, DIN Rail Mount

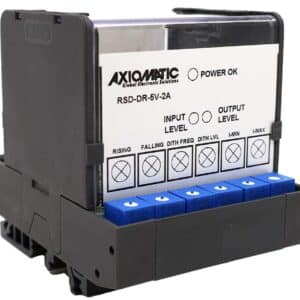

RSDDR5V-0000001RSD-DR-5V-2A, 2A Remote Mount Solenoid Driver, DIN Rail Mount

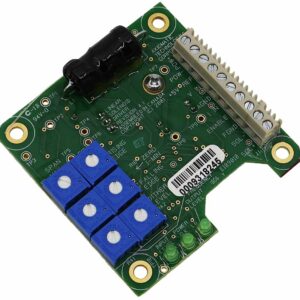

RSDPCB10V-0000004RSD-PCB-10V-2A PCB 10V, 2A Remote Mount Solenoid Driver, PCB

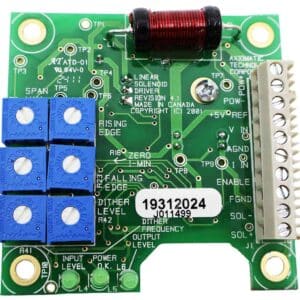

RSDPCB420-0000001RSD-PCB-4-20MA-2A 4-20 mA, 2A Remote Mount Solenoid Driver, PCB
RSDPCB5V-0000001RSD-PCB-5V-2A 5V, 2A Remote Mount Solenoid Driver, PCB

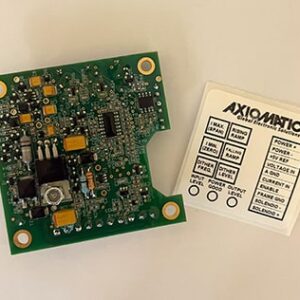

RSDPCB5V-0000002RSD-PCB-5V-1.2A 5V, 1.2A Remote Mount Solenoid Driver, PCB

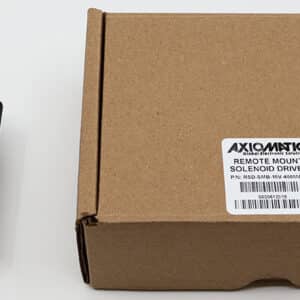

RSDSMB10V-0000017RSD-SMB-10V-400MA-00 10V, 400 mA Remote Mount Solenoid Driver, Metal Box, Strain Relief

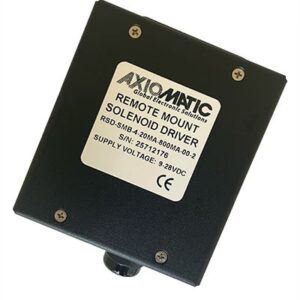

RSDSMB420-0000003RSD-SMB-4-20MA-800MA-00-2 4-20mA, 800 mA Remote Mount Solenoid Driver, Metal Box, Strain Relief, 0-350mA Imin, 400-800mA Imax

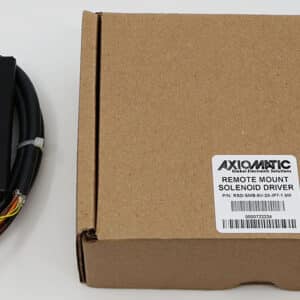

RSDSMB5V-0000001RSD-SMB-5V-2A-IP7-1.5M Metal Box, 1.5m Cable
RSDSMB5V-0000011RSD-SMB-5V-600MA-00 Metal Box, Strain Relief

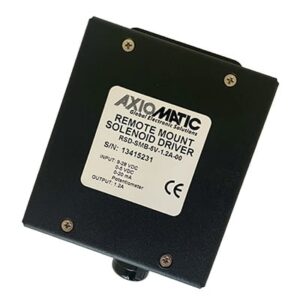

RSDSMB5V-0000012RSD-SMB-5V-1.2A-00 5V, 1.2A Remote Mount Solenoid Driver, Metal Box, Strain Relief

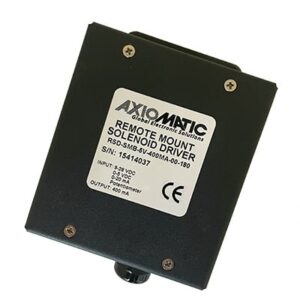

RSDSMB5V-0000014RSD-SMB-5V-400mA-00-180, Imin 0-180mA, Metal Box, Strain Relief
RSDSMB5V-0000017RSD-SMB-5V-600MA-00-200, 5V, 600 mA Remote Mount Solenoid Driver, I min 0-200mA, Metal Box, Strain Relief
RSDSMB5V2A00RSD-SMB-5V-2A-00 5V, 2A Remote Mount Solenoid Driver, Metal Box, Strain Relief
