Home » Catalog » Automation»I/O Controls & Signal Converters»CAN to 2 Analog/Digital Signals and 1 Relay Output Converters (Compact)»

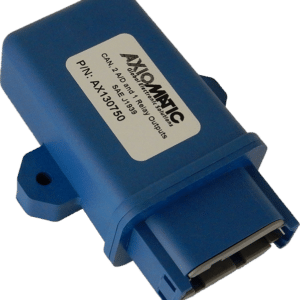

CAN to 2 Analog/Digital Signals and 1 Relay Output Converters (Compact)

The CAN to 2 Analog/Digital Signals and 1 Relay Output Converter features 2 analog/digital signal outputs configurable as 0-5V, 0-10V, 0-20 mA, 4-20 mA, frequency, or PWM Signal as well as 1 relay output. Communication is over 1 isolated SAE J1939 or CANopen® port. It is operational 9…36 Vdc (12 Vdc or 24 Vdc). The Converter meets the surge requirements of SAE J1455 and is designed for EMC compliance.

CAN to 2 Analog/Digital Signals and 1 Relay Output Converters (Compact)

	P/N	Part Name	Price
	AX130750	CAN to 2 Analog/Digital and 1 Relay Output Converter, SAE J1939	Inquiry Only
	AX130751	CAN to 2 Analog/Digital and 1 Relay Output Converter, CANopen®	Inquiry Only
	AX130790	1 Relay & 2 Universal Outputs Controller, SAE J1939	Inquiry Only
