12VDC to 24VDC Converters
The DC-DC converters provide clean 24 VDC power suitable for instrumentation and control networks and process equipment. For operation under the most harsh and demanding conditions, the units are fully sealed and enclosed to protect against moisture, shock, and vibration. Power from a battery or other source as 12 VDC nominal is converted to a 24 VDC output. Some models also accept 24 VDC nominal input power. The units are designed with extremely rugged surge and transient suppression in addition to sustained over/under voltage protection. Nominal nameplate ratings vary.
| P/N | Part Name | Isolation | Supply Voltage (VDC) | Voltage Output (VDC) | Output Power (W) | Communications | |
|---|---|---|---|---|---|---|---|
| AX081100B | 24VDC to 24VDC, 72W Isolated Converter | Yes | 12, 24 | 24 | 72 | ||
| AX081100BK | KIT (AX081100B Converter, WH-DT06-4S-S-16AWG-2M Wire Harness) | Yes | 12, 24 | 24 | 72 | ||

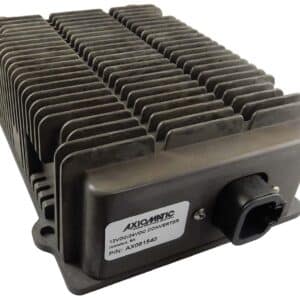

| AX081540 | 12VDC to 24VDC, 190W Isolated Converter | Yes | 12 | 24 | 190 | ||
| AX081540K | KIT (AX081540 Converter, AX070115 Wire Harness) | Yes | 12 | 24 | 190 | ||

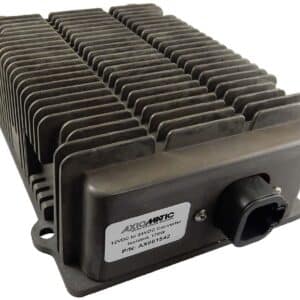

| AX081542 | 12VDC to 24VDC, 170W Isolated Converter | Yes | 12 | 24 | 170 | ||
| AX081542K | KIT (AX081542 Converter, AX070115 Wire Harness) | Yes | 12 | 24 | 170 | ||
| AX082320 | 24VDC to 24VDC, 18W Isolated Power Converter | Yes | 12, 24 | 24 | 18 | ||

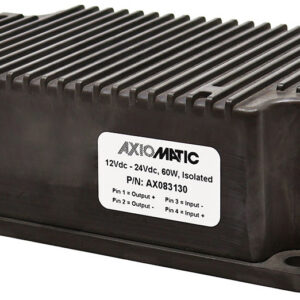

| AX083130 | 12VDC to 24VDC, 60W Isolated Converter | Yes | 12 | 24 | 60 | ||
| AX083130K | KIT (AX083130 Converter, AX070155 Wire Harness) | Yes | 12 | 24 | 60 | ||
| AX083160 | 12 or 24VDC to 24VDC, 60W Isolated Converter | Yes | 12, 24 | 24 | 60 | ||
| AX083160K | KIT (AX083160 Converter, AX070155 Wire Harness) | Yes | 12, 24 | 24 | 60 |
