12VDC Input Power Converters

The 12 VDC input power converters operate from a 12 VDC (nominal) battery or other source and provide a clean VDC output power suitable for instrumentation and control networks equipment. For operation under harsh and demanding conditions, the units are fully sealed to protect against moisture, shock, and vibration. Each power converter unit in this category is designed with rugged electrical protections. Nominal nameplate ratings will vary.



12VDC Input Power Converters
P/NPart NameIsolationSupply Voltage (VDC)Voltage Output (VDC)Output Power (W)Communications
AX08154012VDC to 24VDC, 190W Isolated ConverterYes1224190
AX081540KKIT (AX081540 Converter, AX070115 Wire Harness)Yes1224190
AX08154212VDC to 24VDC, 170W Isolated ConverterYes1224170
AX081542KKIT (AX081542 Converter, AX070115 Wire Harness)Yes1224170
AX08157012VDC to 12VDC, 180W Isolated ConverterYes1212180
AX081570KKIT (AX081570 Converter, AX070103 Wire Harness)Yes1212180
AX08220024VDC to 48VDC, 144W Isolated ConverterYes2448144
AX082200KKIT (AX082200 Converter, WH-DT06-4S-S-16AWG-2M Wire Harness)Yes2448144
AX08221012VDC to 48VDC, 350W Isolated Power ConverterYes1248350
AX082210KKIT (AX082210 Converter, AX070175 Wire Harness)Yes1248350
AX0823009-36VDC to 12VDC, 18W Isolated DC/DC Power ConverterYes, 1218
AX08231012VDC to 12VDC, 18W Isolated Power ConverterYes121218
AX08311012VDC to 48VDC, 60W Isolated ConverterYes124860
AX083110KKIT (AX083110 Converter, AX070155 Wire Harness)Yes124860
AX08312012VDC to 12VDC, 60W Isolated ConverterYes121260
AX083120KKIT (AX083120 Converter, AX070155 Wire Harness)Yes121260
AX08313012VDC to 24VDC, 60W Isolated ConverterYes122460
AX083130KKIT (AX083130 Converter, AX070155 Wire Harness)Yes122460

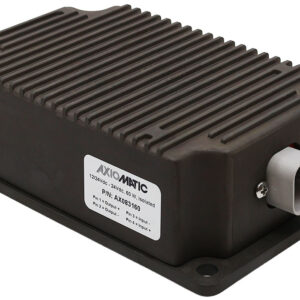

AX08316012 or 24VDC to 24VDC, 60W Isolated ConverterYes, 2460
AX083160KKIT (AX083160 Converter, AX070155 Wire Harness)Yes, 2460
AX08350024VDC to 120VDC, 30W Converter, DIN Rail MountYes, 12030
AX08350124VDC to 120VDC, 30W Converter, DIN Rail Mount, Screw TerminalsYes, 12030
AX08380012VDC to 25VDC, 750W ConverterNo1225750
AX083800KKIT (AX083800 Converter, AX070152 Wire Harness, AX070153 Wire Harness, AX070154 Wire Harness)No1225750
