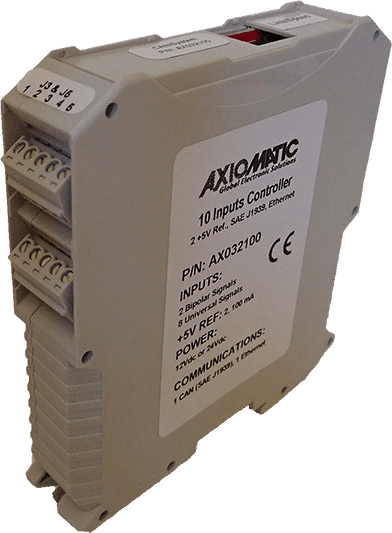

2 Bipolar Analog/Digital and 8 Universal Signal Inputs Controller, DIN Rail Mount

The 2 Bipolar Analog/Digital and 8 Universal Signal Inputs Controller features an SAE J1939 CAN port with auto-baud-rate detection. It has two reference voltages (+5V), and two LED indicators. The controller is configurable via the Axiomatic Electronic Assistant.

	P/N	Part Name	Price
	AX032120	2 Bipolar Analog/Digital, 8 Universal Signal Inputs Controller, CAN (SAE J1939), 2 +5V Ref., DIN Rail Mount	Inquiry Only
