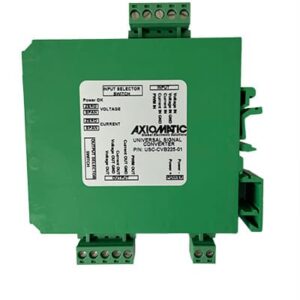

The Universal Signal Converter offers three-way isolation and translates 1 input control signal into 3 simultaneous outputs. Its switches allow the user to select the desired input and output(s). One of PWM, voltage, or current signal input is accepted while 3 PWM, voltage, and current outputs are simultaneously available.

Span and zero adjust with multi-turn pots for both voltage and current outputs. A rugged power supply interface accepts 8-48 VDC and is appropriate for machine applications. The circuitry is conformal coated and packaged in a Lexan DIN rail enclosure designed for installation in a control panel. Plug-in screw terminals are provided for connections. It operates from -40 to 85 °C (-40 to 185 °F).

The signal converter provides precise signal conversion and isolation between sensors, PLCs, and other controls. Applications include industrial automation, test equipment and off-highway machine automation. Three-way isolation is used to eliminate ground loops causing signal errors. Also, control systems with limited channels can use the converter when each channel requires a different configuration. For example, the three-way isolation permits the device to provide a sinking input and sourcing output. For harsh environments, the module should be mounted in a protective control panel.
