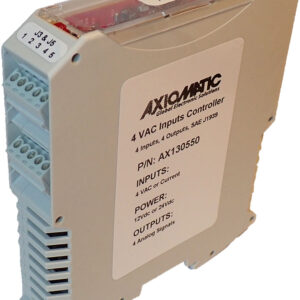

4 AC Voltage or Current Inputs, 4 Analog Outputs CAN Controllers, DIN Rail Mount

The controller accepts 4 AC voltage or current inputs. It is connected to the CAN bus. Power is 12V or 24Vdc nominal. Up to 4 analog signal outputs are user selectable from the following: 0-5Vdc, 0-10Vdc, +/-5Vdc, +/-10Vdc, 4-20 mA, or 0-20mA. LEDs indicate operational status. The enclosure is DIN rail mount. It operates from -40 to 85°C (-40 to 185°F). Standard embedded software is provided and is configurable using the CAN interface.

modal_clip
#

3 Items Added to Quote

View Quote Cart
Home » Catalog » Automation»I/O Controls & Signal Converters»4 AC Voltage or Current Inputs, 4 Analog Outputs CAN Controllers, DIN Rail Mount»

4 AC Voltage or Current Inputs, 4 Analog Outputs CAN Controllers, DIN Rail Mount

The controller accepts 4 AC voltage or current inputs. It is connected to the CAN bus. Power is 12V or 24Vdc nominal. Up to 4 analog signal outputs are user selectable from the following: 0-5Vdc, 0-10Vdc, +/-5Vdc, +/-10Vdc, 4-20 mA, or 0-20mA. LEDs indicate operational status. The enclosure is DIN rail mount. It operates from -40 to 85°C (-40 to 185°F). Standard embedded software is provided and is configurable using the CAN interface.

4 AC Voltage or Current Inputs, 4 Analog Outputs CAN Controllers, DIN Rail Mount
Parts

Showing the single result

P/NPart NameAdd to Quote
Read more
AX1305504 AC Voltage or Current Inputs, 4 Analog Outputs CAN Controllers, SAE J1939, DIN Rail Mount
