72VDC/96VDC/110VDC to 12VDC, 240W Isolated Power Converters

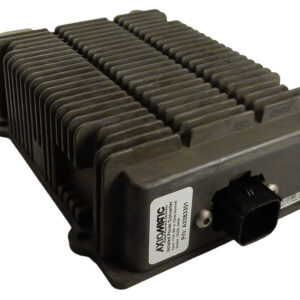

The isolated DC-DC converters provide clean 12 VDC output power suitable for instrumentation and control networks or process equipment. For operation under the most harsh and demanding conditions, the units are fully sealed and enclosed to protect against moisture, shock, and vibration. Power from a battery or other source at 110 VDC nominal, 96 VDC nominal, or 72 VDC nominal is converted to a 12 VDC, 240 Watt output regulated to 4%. Isolation is provided for the input and the output. The units are designed with extremely rugged surge and transient suppression in addition to sustained over/under voltage protection. With a nominal nameplate rating of 240 Watts of output power, the 72VDC/96VDC/110VDC to 12VDC Isolated Converters have an efficiency rated at >92%.

3 Items Added to Quote

View Quote Cart

Home » Catalog » Power Management»DC-DC Converters»72VDC/96VDC/110VDC to 12VDC, 240W Isolated Power Converters»

72VDC/96VDC/110VDC to 12VDC, 240W Isolated Power Converters

72VDC/96VDC/110VDC to 12VDC, 240W Isolated Power Converters

Parts

Sort By Show

Showing all 2 results

Select all	P/N	Part Name		Add to Quote
Read more	AX083301	110V/96V/72VDC to 12VDC, 240W Isolated Converter		This product is already in your quote request list. Browse the list
Read more	AX083301K	KIT (AX083301 Converter, AX070132 Wire Harness)		This product is already in your quote request list. Browse the list
