10 Inputs, 1 Analog & 8 Relay Outputs Controller, SAE J1939

Item # AX031855 — 10 Inputs, 1 Analog & 8 Relay Outputs Controller, SAE J1939

All Downloads

The 10 Inputs, 1 Analog & 8 Relay Outputs Controller accepts 10 digital inputs, generates 1 analog signal output, and sets 8 Form C relays. AX031855 can network with other CAN devices (SAE J1939) in a machine control system. The unit is battery powered with the ability to withstand reverse polarity, undervoltage, overvoltage, and transient power conditions. The outputs can be controlled by any input or via CAN messages. This controller has a number of setpoints that allow the user to configure it for their application. The Axiomatic Electronic Assistant can be used to configure the module over the CAN line. The setpoints can also be saved to a file and flashed into other AX031855 modules over the CAN bus. This unit features a rugged enclosure, gasketing, and watertight connectors for highest level IP69K rating.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Technical Specifications

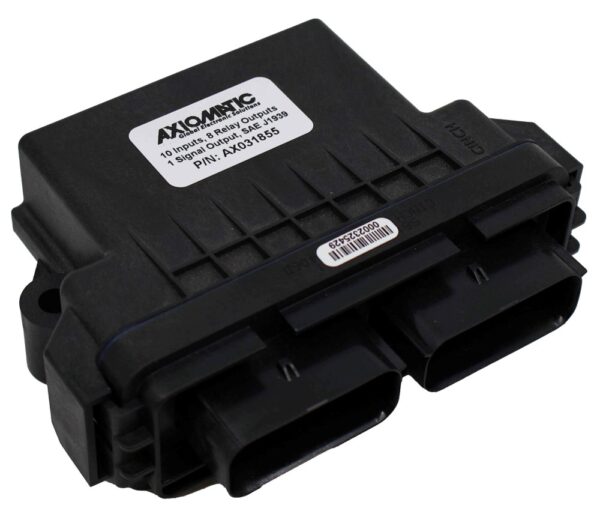

10 Inputs, 1 Analog & 8 Relay Outputs Controller, SAE J1939

Order Code

P/N: AX031855

Input(s)

10 digital signal inputs user selectable as follows:
Active High with 10 kΩ pull-up
Active Low with 10 kΩ pull-down resistor

Output(s)

1 analog signal output user selectable as follows:
Voltage (0-5 V, 0-10 V, +/- 5 V, or +/- 10 V)
Current (0-20 mA or 4-20 mA)

Relay Output(s)

8 Form C relay outputs

Communications

1 isolated CAN port (SAE J1939)

CAN Baud Rate

250 kbit/s, 500 kbit/s, or 1 Mbit/s with auto-baud-rate detection

Operating Voltage

12/24/48 VDC nominal (8-63 VDC)

Isolation

Provided for the CAN line

Control Logic

Standard embedded software is provided.
The user programmable functionality is accessible using the Axiomatic Electronic Assistant (EA), P/N: AX070502 or P/N: AX070506K

Enclosure

CINCH mini-ME enclosure P/N: 5810130090
Conformal coated PCB assemblies
Polymer, glass filled
Flammability rating: HB

Connection(s)

1 40-pin CINCH ME-MX receptacle P/N: 5810140011

Protection Rating

IP69K

Operating Temperature

-40 to 85 ºC
-40 to 185 ºF

Applications

Diesel engine control systems
Off-highway equipment
Power gensets
Trucks and other heavy automotives

Accessories

AX070147, Mating Plug Kit (Molex 33472-2001 (Key A), Molex 33472-2002 (Key B), 40 Crimp Terminals, 6 Cavity Plugs)

AX070502, Axiomatic Electronic Assistant KIT (AX070501 USB-CAN Converter, 2 Cables, Installation Instructions)

AX070506K, Axiomatic Electronic Assistant KIT III (AX070506 USB-CAN Converter, 3 Cables, Installation Instructions)

More +

Downloads

Datasheet

AX031855 Datasheet

User Manual

AX031855 User Manual

2D Drawing

AX031855 Drawing

STEP File

40-Pin CINCH MINI ME-MX Housing Assembly
