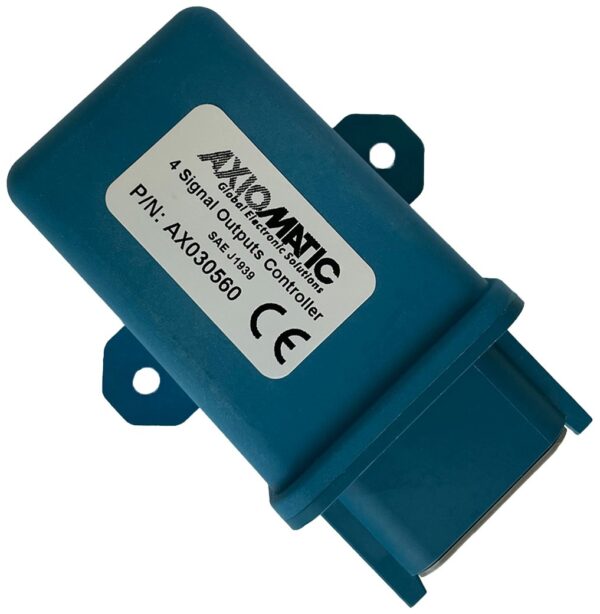

4 Universal Signal Outputs CAN Controller, SAE J1939, Compact

Item # AX030560 — 4 Universal Signal Outputs CAN Controller, SAE J1939, Compact

All Downloads

The 4 Universal Signal Outputs CAN Controller can extend machine control networks by adding outputs to the CAN bus. Engine control systems with an SAE J1939 CAN network can communicate with other signal input devices using this controller as a smart interface. All logical function blocks on the unit are inherently independent from one another but can be configured to interact with each other. The unit can operate at standard 250 kbit/s, 500 kbit/s, 667 kbit/s or 1 Mbit/s baud rates with auto-baud-rate detection. The control algorithms allow the user to configure the controller for a wide range of applications without the need for custom firmware. The AX030560 CAN controller is user configurable via the Axiomatic Electronic Assistant. The controller generates four outputs user selectable as voltage, current, frequency, PWM, or digital and accepts power supply voltages of 12, 24, or 48 VDC nominal (9 to 60 VDC). The unit is a compact IP67 rated enclosure designed for distributed control of power generation, co-generation, stationary power, commercial vehicles, off-highway equipment, and industrial equipment.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Technical Specifications

4 Universal Signal Outputs CAN Controller, SAE J1939, Compact

Order Code

P/N: AX030560

Output(s)

4 independent signal outputs, user selectable as follows:
Voltage (0-5 V, 0-10 V)
Current (0-20 mA, 4-20 mA)
Frequency (0.5-30 kHz)
PWM duty cycle (0-100%)
Digital on/off

Communications

1 CAN port (SAE J1939)

CAN Baud Rate

250 kbit/s, 500 kbit/s, 667 kbit/s, and 1 Mbit/s with auto-baud-rate detection

Operating Voltage

12/24/48 VDC Nominal (9-60 VDC)

Control Logic

Standard embedded software is provided.
A user programmable functionality is accessible.

Enclosure

Molded enclosure, integral TE Deutsch equivalent connector
Nylon 6/6, 30% glass, ultrasonically welded
Flammability rating: UL 94V-0

Connection(s)

1x 12-pin connector, equivalent to TE Deutsch P/N: DTM04-12PA

Protection Rating

IP67, PCB is conformal coated and protected by the housing.

Operating Temperature

-40 to 85 ºC
-40 to 185 ºF

User Interface

The user programmable functionality is accessible using the Axiomatic Electronic Assistant (EA), P/N: AX070502 or P/N: AX070506K

Applications

Designed for distributed control of the following:
Co-generation
Commercial vehicles
Industrial equipment
Off-highway equipment
Power generation
Stationary power

Accessories

PL-DTM06-12SA, Mating Plug KIT (DTM06-12SA, WM-12S, 12 Contacts, 6 Plugs)

AX070502, Axiomatic Electronic Assistant KIT (AX070501 USB-CAN Converter, 2 Cables, Installation Instructions)

AX070506K, Axiomatic Electronic Assistant KIT III (AX070506 USB-CAN Converter, 3 Cables, Installation Instructions)

More +

Downloads

Datasheet

AX030560 Datasheet

User Manual

AX030560 User Manual

2D Drawing

AX030560 Drawing

STEP File

12-Pin Ultrasonically Welded Housing Assembly

Compliance

RoHS - DoC - All

LVD - DoC - All
