6 Port Gigabit Automotive Ethernet Switch
6 Port Gigabit Automotive Ethernet Switch

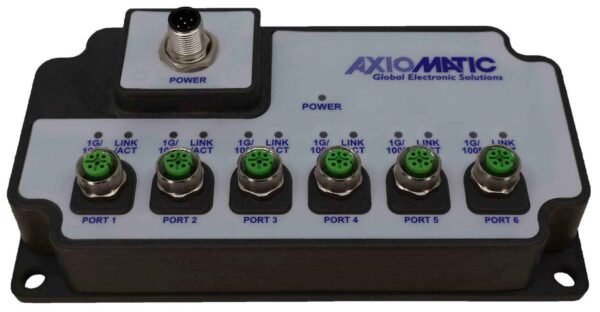

Item # AX141570 — 6 Port Gigabit Automotive Ethernet Switch
The 6 Port Automotive Gigabit Ethernet Switch AX141570 is designed for industrial and automotive applications requiring high performance 100/1000BASE-T1 Ethernet switch functionality. Each switch port can be individually configured to support Master or Slave mode with 1 Gbit/s or 100 Mbit/s communication speed according to IEEE 802.3bp and IEEE 802.3bw standards. The Ethernet part of the switch is not configurable, resulting in unmanaged switch functionality. An embedded web server on Port #1 allows users to configure switch ports, monitor the device performance and update application firmware. In addition, the web server interface contains a virtual cable tester that allows users to check integrity of the switch cabling and to perform basic Ethernet cable troubleshooting. An auxiliary RS-232 port can be used as a local alternative to the remote web server interface. A separate Power Enable digital signal is used to power-up the device in applications where the switch is constantly connected to the battery. An internal state of the switch is displayed by LEDs on the front panel of the housing.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
Downloads
Datasheet
User Manual
2D Drawing
Compliance
