Axiomatic Electronic Assistant KIT III (USB-CAN Converter, USB-A to USB-C Cable, USB-C to USB-C Cable, CAN Cable, Installation Instructions)
Axiomatic Electronic Assistant KIT III (USB-CAN Converter, USB-A to USB-C Cable, USB-C to USB-C Cable, CAN Cable, Installation Instructions)

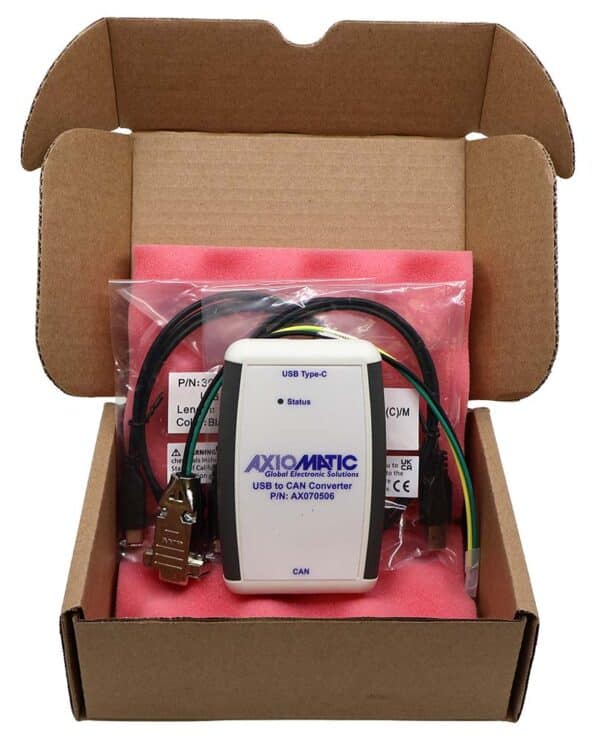

Item # AX070506K — Axiomatic Electronic Assistant KIT III (USB-CAN Converter, USB-A to USB-C Cable, USB-C to USB-C Cable, CAN Cable, Installation Instructions)
Note: Axiomatic Electronic Assistant (EA) programs are located under "EA & Other Configuration Tools" under the "Support" tab. Please contact Axiomatic for the password.
The Axiomatic Electronic Assistant (EA) is a software configuration tool that runs on the Windows® operating system and is connected to an SAE J1939 bus via a USB to CAN converter. Upon being connected to the bus, the EA will find all Electronic Control Units (ECU) on the bus and recognize those manufactured by Axiomatic. Using this tool, a user can quickly configure an Axiomatic ECU for the desired performance over a wide variety of applications. Axiomatic CAN Assistant – Scope software monitors CAN messages in a text format and is able to send single frames to the CAN bus. It is useful for PC-based debugging of J1939, CANopen® or proprietary networked devices. The CAN Assistant – Visual software presents J1939 data in a graphic and user-friendly text format. The Axiomatic USB-CAN Converter includes a Software Development Kit (SDK) for Windows®. The SDK is designed to allow independent software developers and system integrators to use Axiomatic USB-CAN Converter hardware in their own applications.
The Axiomatic USB-CAN Converter is a communication module designed to provide an interface between a PC and a generic CAN bus. It comes with a USB-C Connection. A USB-C to USB-C and a USB-C to USB-A cable set are provided. The converter is plugged one side to a full-speed USB PC port with a standard USB cable and the other side to a CAN bus through a DB-9 CAN connector. An unterminated wire harness with DB-9 connector to mate to the Converter is provided.
The AX070506K kit is a new generation of the Axiomatic Electronic Assistant Kit and it includes the USB-C to CAN converter, one CAB-AX070501 (CAN Cable with female DB-9 - 30 cm/1 ft.), one CBL-USB2.0AM-CM-S-1M (USB-A to USB-C cable - 1 m/3.2 ft.), one CBL-USB2.0CM-CM-S-1M (USB-C to USB-C cable - 1 m/3.2 ft.).
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
Downloads
Datasheet
User Manual
2D Drawing
Compliance
