CAN to Single Valve Controller, SAE J1939

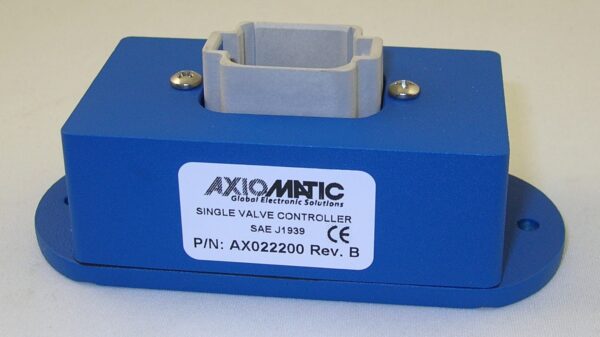

Item # AX022200 — CAN to Single Valve Controller, SAE J1939

All Downloads

The single valve controller features 1 PWM proportional (0-2 A) or on/off output (0-3 A). It has a 12, 24 or 48 VDC input power (nominal) with reverse polarity and transient protection. EMC compliant. Electronic Assistant runs on a Windows operating system for user configuration and programming. An Axiomatic USB-CAN converter links the PC to the CAN bus.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Order Code

P/N: AX022200

Output(s)

1 output (PWM proportional up to 2 A or On/Off output up to 3 A)
Provides High-side switch, current sensing, and grounded load
User selectable from the following:
Voltage
Current (PID loop, with current sensing)
PWM Duty Cycle
Output Disable
Discrete Output (On, Off)

Communications

1 CAN port (SAE J1939)

CAN Baud Rate

250 kbit/s

Operating Voltage

12V. 24V or 48VDC nominal (9…60 VDC power supply range)

Control Logic

Standard embedded software is provided.
The user programmable functionality is accessible using the Axiomatic Electronic Assistant (EA), P/N: AX070502 or P/N: AX070506K

Enclosure

Encapsulated
Cast Aluminum housing with mounting holes
4.62 x 1.91 x 1.76 inches
(117.30 x 48.56 x 44.73 mm)
L x W x H including integral connector

Protection Rating

IP67 rating for the product assembly.

Operating Temperature

-40 to 85 ºC
-40 to 185 ºF

Applications

Distributed controls for commercial vehicles, off-highway equipment, industrial equipment, etc.
Distributed Controls for Machine Control

Accessories

AX070112, Mating Plug Kit (DT06-08SA, W8S, 8 Contacts, 6 Plugs)

AX070502, Axiomatic Electronic Assistant KIT (AX070501 USB-CAN Converter, 2 Cables, Installation Instructions)

AX070506K, Axiomatic Electronic Assistant KIT III (AX070506 USB-CAN Converter, 3 Cables, Installation Instructions)

More +

Downloads

Datasheet

AX022200 Datasheet

User Manual

AX022200 User Manual

2D Drawing

AX022200 - Drawing

Step Files (3D)

AX022000

Compliance

EMC - DoC - AX022200

RoHS - DoC - All

LVD - DoC - All
