Configuration Cable for Plug-In Valve Driver AX023100

Configuration Cable for Plug-In Valve Driver AX023100

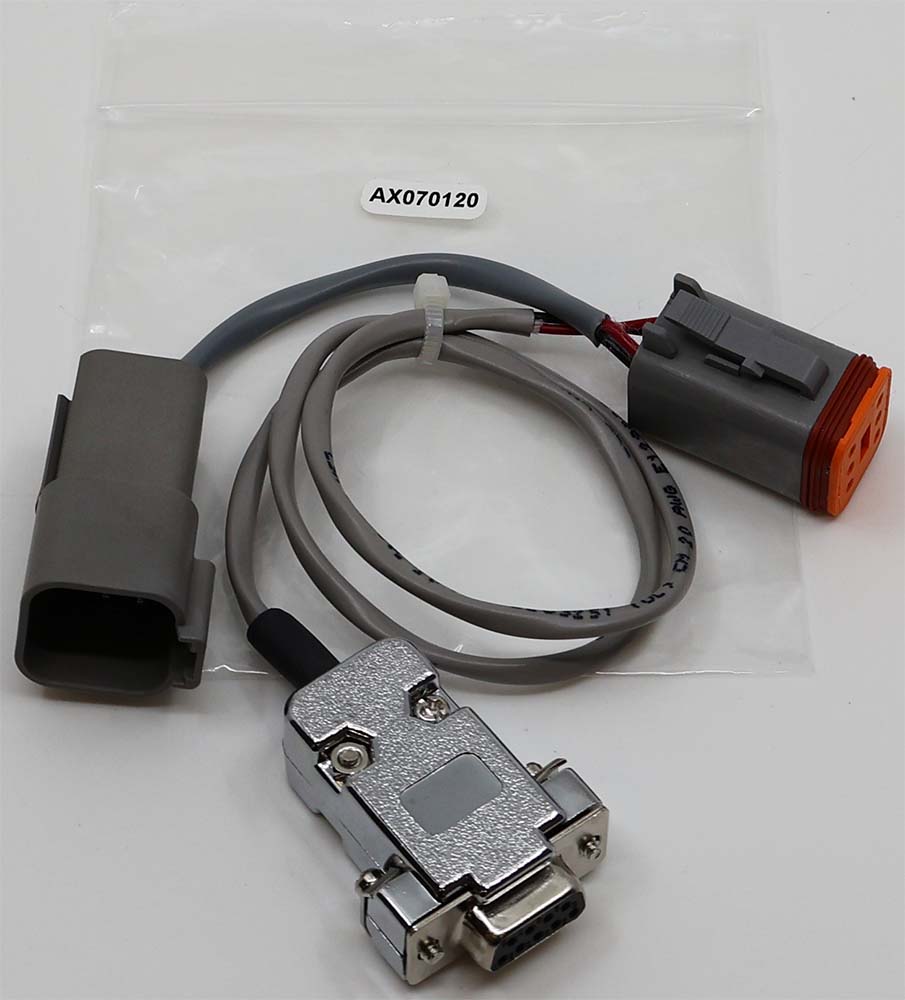

Item # AX070120 — Configuration Cable for Plug-In Valve Driver AX023100

The AX070120 Configuration Cable is designed to be used with the AX023100 — Single Valve Controller, Plug-In, 1 Signal Input.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Downloads

Datasheet

AX070120 Datasheet

Compliance

RoHS - DoC - All
