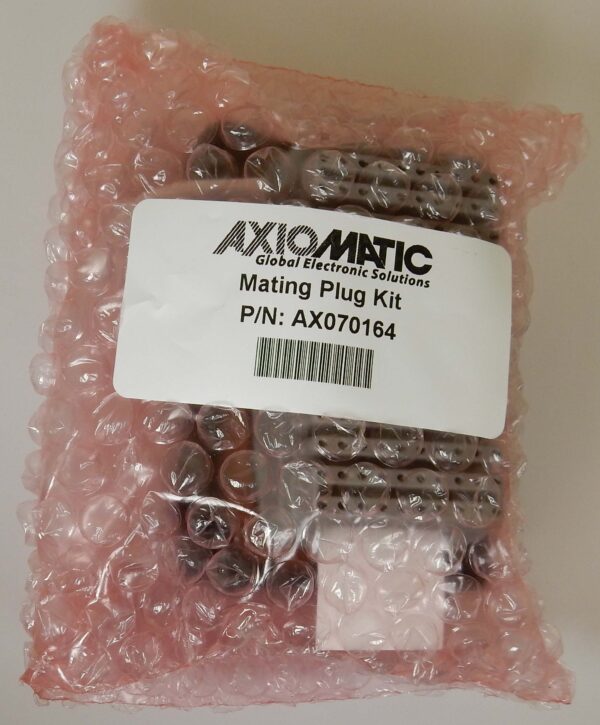

Mating Plug Kit

Item # AX070164 — Mating Plug Kit

All Downloads

The AX070164 Mating Plug Kit can be used with various Axiomatic products, such as the AX180800 20 TC, 2 RTD, 4 Signal Inputs, 6 Relay Outputs Controller. The kit includes TE Deutsch DRCP28-86SA, 80 0462-005-20141, 6 0462-203-12141

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Downloads

Datasheet

TDAX070164 Datasheet

Compliance

RoHS - DoC - All
