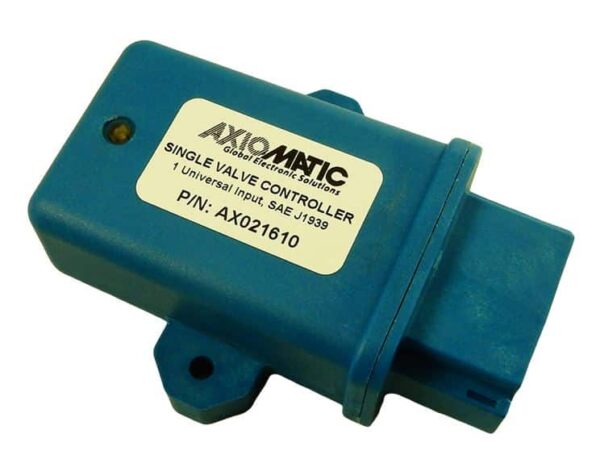

Single Input, Single Output Valve Controller, CANopen

Item # AX021611 — Single Input, Single Output Valve Controller, CANopen

All Downloads

The Universal Input to Single Output Valve Controller with LED is designed for versatile control of a universal input and a proportional valve output. Its flexible hardware design allows for the controller to have a wide range of input and output types. The sophisticated control algorithms/logical function blocks allow the user to configure the controller for a wide range of applications without the need for custom firmware. The setpoints are configurable using standard CANopen tools. The universal input can be configured to read analog signals: Voltage, Current, and Resistance as well as digital signals: Frequency/RPM, PWM, Digital, and Counter types. Similarly, the output can be configured to different types: Proportional Current, Voltage, PWM, Hotshot Digital Current and Digital (ON/OFF). Each output consists of a high side half-bridge driver able to source up to 3 Amps with hardware shutdown at 4 Amps. Additionally, the controller includes a dual LED which is visible from outside the housing. The LED can be configured in various ways to visually inform the user of the controller’s operations.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Order Code

P/N: AX021611

Input(s)

1 universal signal input that can be set to Voltage, Current, Resistive, PWM, Frequency or Digital.

Output(s)

1 output that can be set to the following:
Proportional Current (0-3 A)
Proportional Voltage up to Vps
PWM signal
Hotshot digital
Digital on/off
Voltage 0-Vps (user selectable)

Communications

1 CAN port (CANopen®)

CAN Baud Rate

Selectable

Operating Voltage

12Vdc or 24Vdc nominal

Control Logic

User programmable functionality using the Electronic Assistant (EA),
P/N: AX070502 or P/N: AX070506K

Enclosure

Molded enclosure, integral connector
Nylon 6/6, 30% glass
Ultrasonically welded
3.47 x 2.75 x 1.31 inches
88.2 x 70.0 x 33.3 mm
L x W x H including integral connector

Connection(s)

1 Integral 8-pin receptacle equivalent to the TE Deutsch P/N: DT04-08PA
18 AWG wire is recommended for use with 0462-201-16141 contacts

Accessories

AX070112, Plug Kit: DT06-08SA, W8S, 0462-201-16141, 114017

Accessories

AX070112, Plug Kit: DT06-08SA, W8S, 0462-201-16141, 114017

More +

Downloads

Datasheet

AX021611 Datasheet

User Manual

AX021611 User Manual

2D Drawing

AX021611 Drawing

Step Files (3D)

AX021610 Housing Assembly

EDS

EDS-AX021611

Compliance

EMC - DOC - AX021610

UKCA - DoC - AX021610

RoHS - DoC - All
