12 or 24VDC to 48VDC Converters
The DC-DC converters provide clean 48 VDC power for vehicle electronics, instrumentation, radios, and other control equipment. For operation under the most harsh and demanding conditions, the units are sealed and enclosed to protect against moisture, shock, and vibration. Power from a battery or other source at 12 or 24 VDC nominal is converted to a 48 VDC output voltage. The nominal nameplate ratings range from 60 to 144 Watts, depending on the selected model. The units are designed with extremely rugged surge and transient suppression in addition to sustained over-voltage and under-voltage protection.
Showing all 6 results
| P/N | Part Name | Isolation | Voltage Output | Output Power | Add to Quote | |
|---|---|---|---|---|---|---|

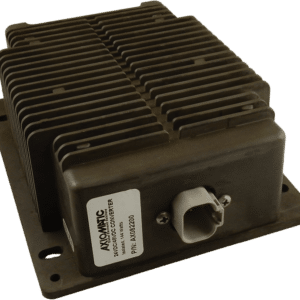

| AX082200 | 24VDC/48VDC, 144W Isolated Converter | Yes | 48 VDC | 144 W | ||
| AX082200K | KIT (AX082200 Converter, WH-DT06-4S-S-16AWG-2M Wire Harness) | Yes | 48 VDC | 144 W | ||
| AX083100 | 24VDC to 48VDC, 60W Isolated Converter | Yes | 48 VDC | 60 W | ||
| AX083100K | KIT (AX083100 Converter, WH-DT06-4S-S-16AWG-2M Wire Harness) | Yes | 48 VDC | 60 W | ||
| AX083110 | 12VDC to 48VDC, 60W Isolated Converter | Yes | 48 VDC | 60 W | ||
| AX083110K | KIT (AX083110 Converter, AX070155 Wire Harness) | Yes | 48 VDC | 60 W |
