1 Digital Input, 2 Digital Outputs Valve Controllers, SAE J1939

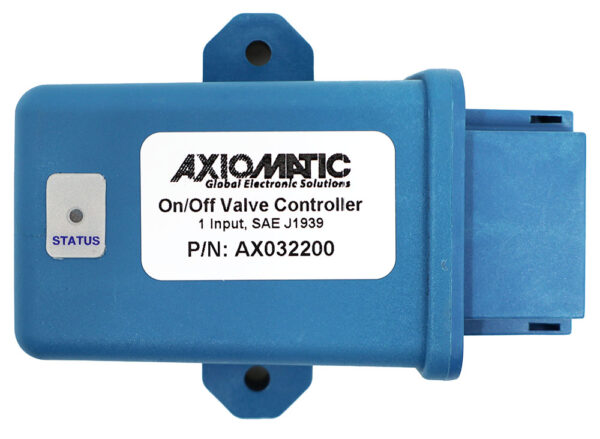

Item # AX032200 — 1 Digital Input, 2 Digital Outputs Valve Controllers, SAE J1939

All Downloads

The 1 digital input to 2 digital outputs valve controller features one digital signal input up to + Vps (ignition switch signal) and two digital outputs up to 4 Amps. AX032200 is designed to provide a simple interface between SAE J1939 CAN networks and discrete electronic devices. The controller is user configurable via the Axiomatic Electronic Assistant. The unit comes in a compact, fully sealed enclosure with IP67 protection ensuring quality applications in power generator sets or industrial environments. This valve controller meets the surge requirements of SAE J1445.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Technical Specifications

1 Digital Input, 2 Digital Outputs Valve Controller, SAE J1939 with Auto-Baud-Rate Detection

Order Code

P/N: AX032200

Input(s)

1 ignition signal input (up to +Vps)
Optional input configuration as 1 digital input with 10 K pull-up/down

Output(s)

2 digital outputs (up to 4 A sourcing)
High side
Digital on/off

CAN Port(s)

1 SAE J1939 port

CAN Baud Rate

Auto-baud rate detection

Operating Voltage

12/24 VDC nominal (8-36 VDC)

Control Logic

Standard embedded software is provided.
The user programmable functionality is accessible using the Axiomatic Electronic Assistant (EA), P/N: AX070502 or P/N: AX070506K

Enclosure

Molded enclosure, integral connector
Nylon 6/6, 30% glass, ultrasonically welded

Connection(s)

1x 8-pin connector equivalent to TE Deutsch P/N: DT04-08PA

Protection Rating

IP67

Operating Temperature

-40 to 85 ºC
-40 to 185 ºF

Applications

Ignition switch operated valve controller for on/off valves.

Accessories

AX070112, Mating Plug Kit (DT06-08SA, W8S, 8 Contacts, 6 Plugs)

AX070502, Axiomatic Electronic Assistant KIT (AX070501 USB-CAN Converter, 2 Cables, Installation Instructions)

AX070506K, Axiomatic Electronic Assistant KIT III (AX070506 USB-CAN Converter, 3 Cables, Installation Instructions)

More +

Downloads

Datasheet

AX032200 Datasheet

User Manual

AX032200 User Manual

2D Drawing

AX032200 Drawing

STEP File

12-pin Laser Welded Housing

Compliance

RoHS - DoC - All

LVD - DoC - All
