1 Universal Signal Input Controller, SAE J1939

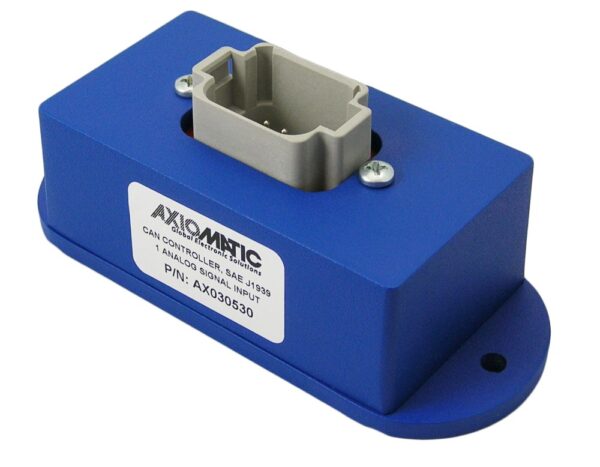

Item # AX030530 — 1 Universal Signal Input Controller, SAE J1939
The 1 Universal Input CAN Controller belongs to a family of Axiomatic smart controllers with programmable internal architecture. This provides users with flexibility, allowing them to build their own custom controller with a required functionality from a set of predefined internal functional blocks using the PC-based Axiomatic Electronic Assistant software tool. Application programming is performed through the CAN interface, without disconnecting the controller from the user’s system.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
Technical Specifications
1 Universal Signal Input Controller, SAE J1939
Order Code
P/N: AX030530
No. of Input(s)
1
Input(s)
1 universal signal input (Voltage, Current, Resistive, Digital, Frequency, or PWM) user selectable as follows.
0-1V, 0-2.5V, 0-5V, 0-10V
0-20mA, 4-20 mA
20Ohm-250kOhm (Auto range or user selectable range)
10Hz-1kHz, 100 Hz-10kHz
No. of Communication Port(s)
1
CAN Port(s)
CAN (SAE J1939)
Operating Voltage
12VDC or 24VDC or 48VDC Nominal (9…60 Vdc Power Supply Range)
Control Logic
Standard embedded software is provided.
Enclosure
Encapsulated, cast aluminum housing with mounting holes
Integral TE Deutsch equivalent connector
Protection Rating
IP67
Operating Temperature
-40 to 85 ºC
-40 to 185 ºF
Applications
Distributed controls for commercial vehicles, off-highway equipment, industrial equipment, etc.
Distributed controls for power generation, co-generation, stationary power
Accessories
Datasheet
User Manual
2D Drawing
Step Files (3D)
Compliance
