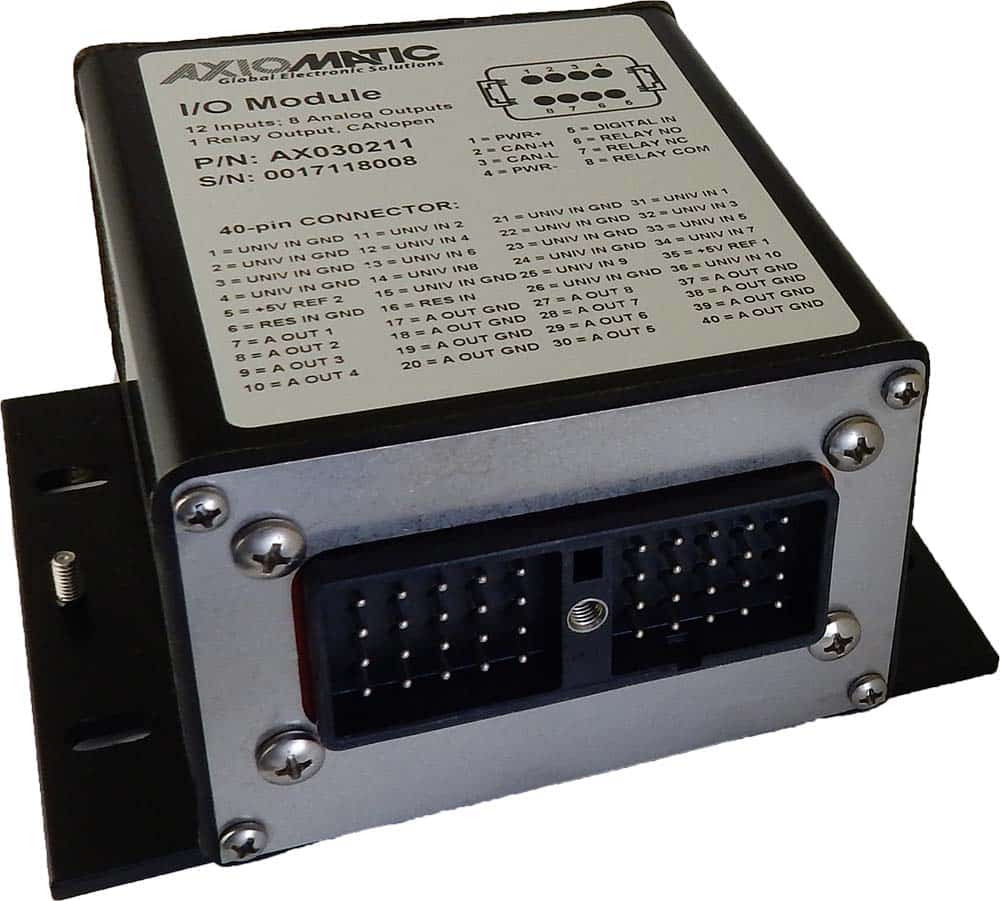

12 Inputs, 8 Analog and 1 Relay Output Isolated I/O Module, CANopen®

Item # AX030211 — 12 Inputs, 8 Analog and 1 Relay Output Isolated I/O Module, CANopen®

All Downloads

The 12 Inputs, 8 Analog and 1 Relay Outputs CAN I/O Module can extend machine control networks by adding I/O to the CAN bus. The controller features 1 isolated CANopen® port for user-defined communications over the bus. It accepts up to 10 analog (0-5 V, 0-10 V, 0-20 mA or 4-20 mA), digital, PWM, pulse (frequency or RPM), or counter inputs. Two voltage references (user configurable as +5 or +10 V) are provided to power external sensors. A digital input and a resistive input allow for additional interfaces. Each input can be configured to measure the input value and send the data to a CANopen® network. The AX030211 module is user configurable using standard CANopen® interface tools (not supplied). The I/O module provides 8 analog outputs (0-5 V, 0-10 V, +/-5 V, +/-10 V, 0-20 mA, 4-20 mA) as well as 1 Form C relay output. Diagnostics messages are provided over the CAN network for the status of inputs or outputs. Rugged IP67 rated enclosure in addition to a 12 or 24 V power supply input section suits power generation and large engine applications.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Technical Specifications

12 Inputs, 8 Analog and 1 Relay Output, Isolated I/O Module, CANopen®

Order Code

P/N: AX030211

Input(s)

1 digital input as active high or active low
1 resistive input, self-calibrating from 25 Ω to 250 kΩ

10 universal signal inputs are user selectable as follows:
Voltage (0-5 V, 0-10 V)
Current (4-20 mA, 0-20 mA)
PWM (0.5-10,000 Hz)
Digital (active high, active low)
Pulse (Hz or RPM)
Counter (16-bit)

Output(s)

8 analog outputs are user programmable as voltage (0-5 V, 0-10 V) or current (0-20 mA, 4-20 mA)
1 Form C relay output (NC)

Reference Voltage(s)

2x +5V/+10V references

Communications

1 CAN port (CANopen®)

Operating Voltage

12/24 VDC nominal (8-36 VDC)

Isolation

300 Vrms isolation for the CAN port

Control Logic

Standard embedded software is provided.
A user programmable functionality is accessible.

Enclosure

Aluminum extrusion with stainless steel end plates
Gaskets are open cell neoprene

Connection(s)

1x 8-pin connector, TE Deutsch P/N: DT13-08PA
1x 40-pin connector, TE Deutsch P/N: DRC13-40PA

Protection Rating

IP67, the unit is conformally coated within the housing
IP56 tested for marine type approval

Operating Temperature

-40 to 85 ºC
-40 to 185 ºF

User Configurability

An EDS file is provided to interface with standard CANopen® configuration tools.

Applications

Cogeneration
Large engines
Power generation
Stationary power

Accessories

AX070200, Plug Kit (DRC16-40S Connector, DT06-08SA Plug, W8S Wedgelock, Size 16 Sockets, Size 12-16 Sealing Plugs)

AX070502, Axiomatic Electronic Assistant KIT (AX070501 USB-CAN Converter, 2 Cables, Installation Instructions)

AX070506K, Axiomatic Electronic Assistant KIT III (AX070506 USB-CAN Converter, 3 Cables, Installation Instructions)

Accessories

More +

Downloads

Datasheet

AX030211 Datasheet

User Manual

AX030211 User Manual

EDS File

EDS-AX030211

2D Drawing

AX030211 Drawing

STEP File

TC-RTD-AIO Housing Assembly

Marine Type Approval(s)

RINA - ELE204819CS

Compliance

EMC - DoC - AX030210

UKCA - DoC - AX030210

RoHS - DoC - All

12 Inputs, 8 Analog and 1 Relay Output Isolated I/O Module, CANopen®-main
