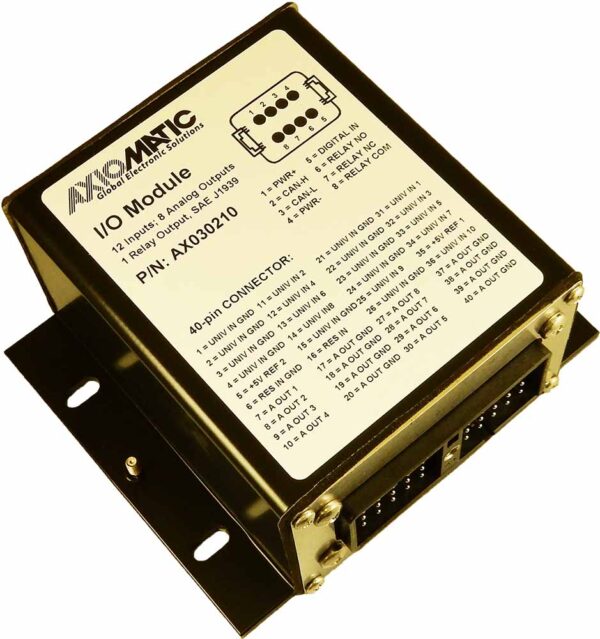

12 Inputs, 8 Analog and 1 Relay Output Isolated I/O Module, SAE J1939

Item # AX030210 — 12 Inputs, 8 Analog and 1 Relay Output Isolated I/O Module, SAE J1939

All Downloads

The 12 Inputs, 8 Analog and 1 Relay Outputs I/O Module can extend machine control networks by adding I/O to the CAN bus. The controller features 1 isolated SAE J1939 CAN port for user-defined communications over the bus. It accepts up to 10 analog (0-5 V, 0-10 V, 0-20 mA or 4-20 mA), digital, PWM, pulse (frequency or RPM), or counter inputs. Two voltage references (user configurable as +5 or +10 V) are provided to power external sensors. A digital input and a resistive input allow for additional interfaces. Each input can be configured to measure the input value and send the data to an SAE J1939 CAN network. The AX030210 module is user configurable via the Axiomatic Electronic Assistant. The I/O module provides 8 analog outputs (0-5 V, 0-10 V, +/-5 V, +/-10 V, 0-20 mA, 4-20 mA) as well as 1 Form C relay output. Diagnostics messages are provided over the CAN network for the status of inputs or outputs. Rugged IP67 rated enclosure in addition to a 12 or 24 V power supply input section suits power generation and large engine applications.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Technical Specifications

12 Inputs, 8 Analog and 1 Relay Outputs CAN I/O Module, SAE J1939

Order Code

P/N: AX030210

Input(s)

1 digital input as active high or active low
1 resistive input, self-calibrating from 25 Ω to 250 kΩ

10 universal signal inputs are user selectable as follows:
Voltage (0-5 V, 0-10 V)
Current (4-20 mA, 0-20 mA)
PWM (0.5-10,000 Hz)
Digital (active high, active low)
Pulse (Hz or RPM)
Counter (16-bit)

Output(s)

8 analog outputs are user programmable as voltage (0-5 V, 0-10 V) or current (0-20 mA, 4-20 mA)
1 Form C relay output (NC)

Reference Voltage(s)

2x +5V/+10V references

Communications

1 CAN port (SAE J1939)

CAN Baud Rate

250 kbit/s

Operating Voltage

12/24 VDC nominal (8-36 VDC)

Isolation

300 Vrms isolation for the CAN port

Control Logic

Standard embedded software is provided.
A user programmable functionality is accessible.

Enclosure

Aluminum extrusion with stainless steel end plates
Gaskets are open cell neoprene

Connection(s)

1x 8-pin connector, TE Deutsch P/N: DT13-08PA
1x 40-pin connector, TE Deutsch P/N: DRC13-40PA

Protection Rating

IP67, the unit is conformally coated within the housing
IP56 tested for marine type approval

Operating Temperature

-40 to 85 ºC
-40 to 185 ºF

User Interface

The user programmable functionality is accessible using the Axiomatic Electronic Assistant (EA), P/N: AX070502 or P/N: AX070506K

Applications

Cogeneration
Large engines
Power generation
Stationary power

Accessories

AX070200, Plug Kit (DRC16-40S Connector, DT06-08SA Plug, W8S Wedgelock, Size 16 Sockets, Size 12-16 Sealing Plugs)

AX070502, Axiomatic Electronic Assistant KIT (AX070501 USB-CAN Converter, 2 Cables, Installation Instructions)

AX070506K, Axiomatic Electronic Assistant KIT III (AX070506 USB-CAN Converter, 3 Cables, Installation Instructions)

More +

Downloads

Datasheet

AX030210 Datasheet

User Manual

AX030210 User Manual

2D Drawing

AX030210 Drawing

STEP File

TC-RTD-AIO Housing Assembly

Marine Type Approval(s)

BV - 31049/C0 BV

DNV - TAA00001VK

RINA - ELE204819CS

Compliance

EMC - DoC - AX030210

UKCA - DoC - AX030210

RoHS - DoC - All
