16 Cell Battery Voltage Monitor, SAE J1939

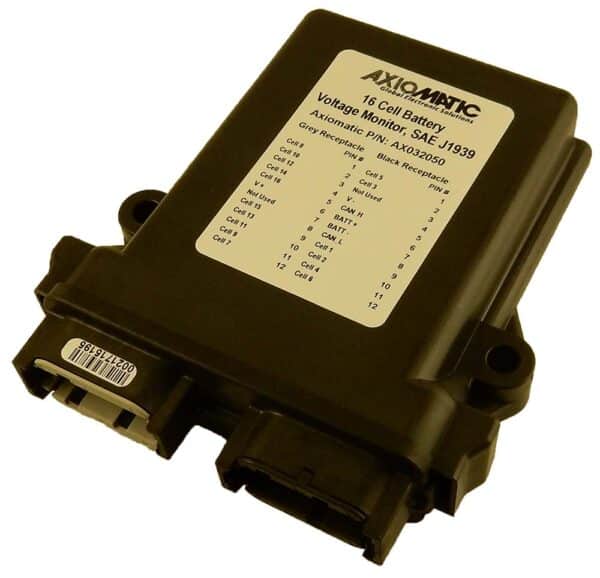

Item # AX032050 — 16 Cell Battery Voltage Monitor, SAE J1939

All Downloads

The 16 Cell Battery Voltage Monitor interfaces to monitor voltage levels of cells in a battery and is suitable for most battery chemistries. It networks over CAN bus (SAE J1939). User configuration is via Axiomatic Electronic Assistant. It use 12V or 24Vdc nominal input power and comes with rugged surge protection. It features IP67 protection.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Order Code

P/N: AX032050

Input(s)

16 Differential Battery Cell Inputs

Communications

1 isolated SAE J1939 port

Operating Voltage

12VDC or 24VDC Nominal (6…90VDC Power Supply Range)

Control Logic

Standard embedded software is provided.

Enclosure

High temperature nylon housing
TE Deutsch P/N: EEC-325X4B

Connection(s)

TE Deutsch DTM series 24 pin receptacle (DTM13-12PA-12PB-R008)

Protection Rating

IP67, PCB is conformal coated and protected by the housing.

Operating Temperature

-40 to 85 ºC
-40 to 185 ºF

User Interface

The user programmable functionality is accessible using the Axiomatic Electronic Assistant, P/N: AX070506K

Applications

Fuel Cells
Hybrid Power Back-up Systems

Accessories

PL-DTM06-12SA-12SB, Mating Plug KIT (DTM06-12SA, DTM06-12SB, 2 WM-12S, 24 Contacts, 18 Plugs)

AX070506K, Axiomatic Electronic Assistant KIT III (AX070506 USB-CAN Converter, 3 Cables, Installation Instructions)

More +

Downloads

Datasheet

AX032050 Datasheet

User Manual

AX0320x0 User Manual

2D Drawing

AX032050 Drawing

Step Files (3D)

24-Pin TE Deutsch Housing Assembly
