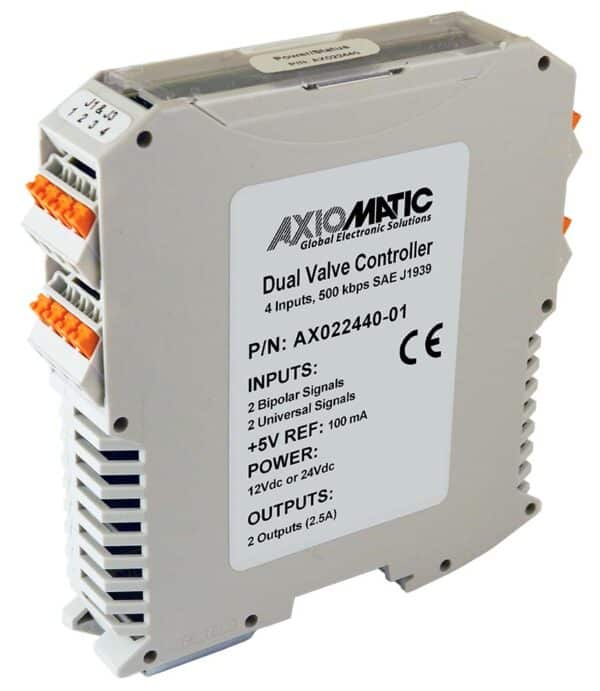

2 Bipolar and 2 Universal/1 AB Encoder Inputs, Dual Valve Controller, SAE J1939, 500 kbps, DIN Rail Mount
Item # AX022440-01 — 2 Bipolar and 2 Universal/1 AB Encoder Inputs, Dual Valve Controller, SAE J1939, 500 kbps, DIN Rail Mount
The Dual Valve Controller is designed for extremely versatile control of up to two proportional outputs to directly drive coils or other loads. Its flexible circuit design gives the user a wide range of configurable input or output types. The AX022440-01 controller has two programmable bipolar or unipolar inputs selectable as voltage, current, resistive, frequency, or digital. Additionally, there are two universal signal inputs selectable as AB encoder, voltage, current, resistive, frequency, PWM, RPM, or digital. The valve controller generates two universal outputs selectable as proportional voltage, proportional current, hotshot digital, PWM, or digital on/off. The valve controller can be operated as either a self-contained control system, driving the outputs directly from the on-board inputs, or it can be integrated into an SAE J1939 network of controllers. The Dual Valve Controller is user configurable using the Axiomatic Electronic Assistant. A rugged power supply interface accepts 12 VDC or 24 VDC nominal for battery powered machine applications, an LED indicates operational status, and the enclosure is a DIN rail mount.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
Input(s)
Two (2) universal signal inputs are configurable as:
Voltage
Current
Resistive
PWM
Frequency/RPM
Digital
AB Encoder
Two (2) signal inputs are selectable as bipolar or unipolar voltage, current, digital, PWM or Frequency signal types:0-5V, 0-10V, 0 to +/- 5V, 0 to +/- 10V 4-20mA, 0-20mA PWM Frequency Digital
No. of Output(s)
2
Output(s)
Two (2) independent outputs to drive valves (0-2.5A) are user configurable as:
Proportional Current
Proportional Voltage
Hotshot Digital
PWM Duty Cycle (1 Hz to 25 kHz)
On/Off Digital
Resistive K
0.020 - 250 (2)
LED Outputs
1 LED
Reference Voltage(s)
+5 V, 100 mA ± 2%
V Ref
5V, 100 mA
Proportional And On Off Solenoid
2 (2.5A)
Communications
1 CAN port (SAE J1939)
CAN Baud Rate
500 kbit/s
Operating Voltage
12V or 24Vdc nominal
Control Logic
Standard embedded software is provided.
The user programmable functionality is accessible using the Axiomatic Electronic Assistant (EA), P/N: AX070502 or P/N: AX070506K
Enclosure
PHO ME MAX 22.5 2-2 KMGY – 2713625 (vented)
Polyamide, UL94V0, cULus recognized, China RoHS
DIN rail TH 35-7.5
99 x 114.5 x 22.6 mm (L x H x D)
Connection(s)
4 Phoenix Contact PSPT 2,5/ 4-ST KMGY spring clamp connectors
Protection Rating
IP20
Operating Temperature
-40 to 85 ºC
-40 to 185 ºF
CE Mark
CE
Applications
Hydraulic Valve Control
PID Closed Loop Valve Control
Signal Conversion
Accessories
Analog Input
0-2.5 V (2)
Digital Inputs
Frequency (4)
Datasheet
User Manual
2D Drawing
STEP File
