2 Pt100 RTD, 1 Signal Inputs CAN Controller, SAE J1939

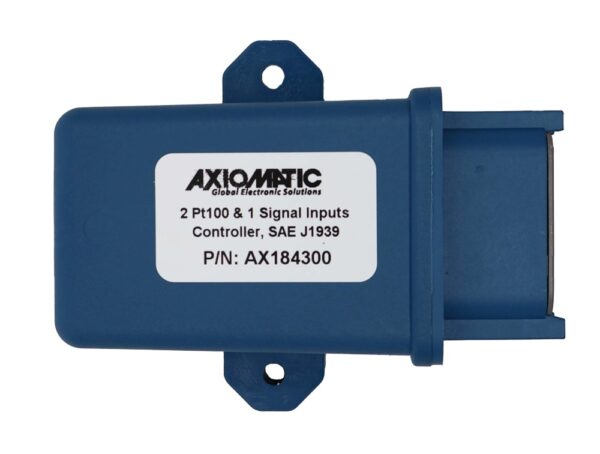

Item # AX184300 — 2 Pt100 RTD, 1 Signal Inputs CAN Controller, SAE J1939

All Downloads

The AX184300 Controller can read two 3-wire Pt100 RTD sensors and one universal signal input. The universal input can be configured to read voltage, current, frequency, PWM, or digital signals. Standard control logic is provided. All logical function blocks on the unit are inherently independent from one another but can be configured to interact with each other. All parameters are configurable using the Axiomatic Electronic Assistant. The device can operate at standard 250 and 500kbit/s and non-standard 667kbit/s and 1Mbit/s baud rates. The device accepts power supply voltages from 6 to 62 VDC. Rugged enclosure and power supply surge protection suits the harsh environment of mobile equipment.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Technical Specifications

2 Pt100 RTD, 1 Signal Inputs CAN Controller, SAE J1939

Order Code

P/N: AX184300

Input(s)

1 universal signal input, user selectable from the following:
Voltage (0-5 V or 0-10 V)
Current (0-20 mA or 4-20 mA)
Frequency/PWM (1 Hz to 10 kHz)
Digital (Active High or Active Low with 10 kΩ pull-up or pull-down)

RTD Input(s)

2x 3-wire Pt100 sensor input channels

Communications

1 CAN port (SAE J1939)

CAN Baud Rate

250 kbit/s, 500 kbit/s, 667 kbit/s, and 1 Mbit/s with auto-baud-rate detection

Operating Voltage

12/24/48 VDC nominal (6-62 VDC)

Isolation

400 VDC from power supply
Input and CAN port are not isolated from each other

Control Logic

Standard embedded software is provided.
The user programmable functionality is accessible using the Axiomatic Electronic Assistant (EA), P/N: AX070502 or P/N: AX070506K

Enclosure

Molded enclosure, integral TE Deutsch equivalent connector
Nylon 6/6, 30% glass, ultrasonically welded
Flammability rating: UL 94V-0

Connection(s)

1x 12-pin connector, equivalent to TE Deutsch P/N: DTM04-12PA

Protection Rating

IP67

Operating Temperature

-40 to 85 ºC
-40 to 185 ºF

Applications

The controller is designed to monitor and control temperature in rugged conditions inside:
Electric vehicle charging
Heavy duty industrial machines
Mobile equipment
Municipal vehicles
Off-highway construction equipment

Accessories

PL-DTM06-12SA, Mating Plug KIT (DTM06-12SA, WM-12S, 12 Contacts, 6 Plugs)

AX070502, Axiomatic Electronic Assistant KIT (AX070501 USB-CAN Converter, 2 Cables, Installation Instructions)

AX070506K, Axiomatic Electronic Assistant KIT III (AX070506 USB-CAN Converter, 3 Cables, Installation Instructions)

More +

Downloads

Datasheet

AX184300 Datasheet

User Manual

AX184300 User Manual

2D Drawing

AX184300 Drawing

STEP File

12-Pin Ultrasonically Welded Housing Assembly

Compliance

RoHS - DoC - All

LVD - DoC - All
