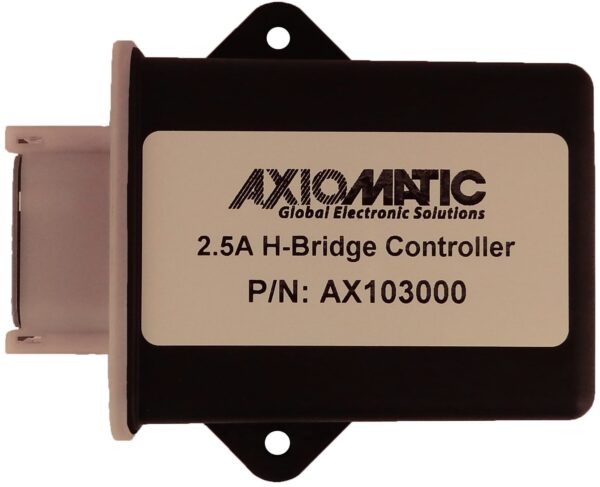

3 Universal Inputs, H-Bridge Output, 2.5A Motor Controller, SAE J1939

Item # AX103000 — 3 Universal Inputs, H-Bridge Output, 2.5A Motor Controller, SAE J1939

All Downloads

The 3 Universal Inputs, H-Bridge Output, 2.5A Motor Controller, AX103000, operates at 12 or 24 VDC nominal (8 to 36 VDC) from a battery or other power source, accepts 3 universal inputs, and generates 2 half-bridge outputs up to 2.5 A. The flexible circuit design gives the user a wide range of configurable input and output types. The inputs are selectable as voltage, PWM, frequency, or digital active high/active low. The outputs are programmable as 1 full H-bridge output or 2 individual outputs, selectable as proportional voltage, proportional current, hotshot digital, high frequency drive, or digital on/off. Powerful control algorithms allow the user to program the controller for a wide range of applications without the need for custom firmware. The AX103000 controller communicates using an SAE J1939 CAN port and features auto-baud-rate detection. The motor controller is user configurable via the Axiomatic Electronic Assistant (sold separately). AX103000 is suitable for machine control systems for actuators, valves, and DC motors.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Technical Specifications

3 Universal Inputs, H-Bridge Output, 2.5A Motor Controller, SAE J1939

Order Code

P/N: AX103000

No. of Input(s)

Input(s)

3 universal inputs are user selectable as follows:
Voltage (0-5 V, 0-10 V)
PWM (1-10,000 Hz)
Frequency (1-10,000 Hz)
Digital (active high, active low)

No. of Output(s)

Output(s)

2 half-bridge outputs are programmable as 1 full H-bridge output or 2 individual outputs, user programmable as follows:
Proportional voltage
Proportional current
Hotshot digital
PWM
High frequency drive
Digital on/off

Reference Voltage(s)

+5V or +8V (user selectable)

No. of Communication Port(s)

Communications

1 CAN port (SAE J1939)

CAN Baud Rate

250 kbit/s, 500 kbit/s, 667 kbit/s, and 1 Mbit/s with auto-baud-rate detection

Operating Voltage

12/24 VDC nominal (8-36 VDC)

Control Logic

Standard embedded software is provided.
A user programmable functionality is accessible.

Enclosure

Molded enclosure, integral TE Deutsch equivalent connector
Nylon 6/6, 30% glass, laser welded

Connection(s)

1x 12-pin connector, equivalent to TE Deutsch P/N: DTM04-12P

Protection Rating

IP67

Operating Temperature

-40 to 85 ºC
-40 to 185 ºF

User Interface

The user programmable functionality is accessible using the Axiomatic Electronic Assistant (EA), P/N: AX070502 or P/N: AX070506K

Applications

Machine control systems for actuators, valves, and DC motors.

Accessories

PL-DTM06-12SA, Mating Plug KIT (DTM06-12SA, WM-12S, 12 Contacts, 6 Plugs)

AX070502, Axiomatic Electronic Assistant KIT (AX070501 USB-CAN Converter, 2 Cables, Installation Instructions)

AX070506K, Axiomatic Electronic Assistant KIT III (AX070506 USB-CAN Converter, 3 Cables, Installation Instructions)

More +

Downloads

Datasheet

AX103000 Datasheet

User Manual

AX103000 User Manual

2D Drawing

AX103000 Drawing

STEP File

AX103000 Housing Assembly

Compliance

RoHS - DoC - All
