40A DC Motor Controller, SAE J1939, 250 kbps

Item # AX102000 — 40A DC Motor Controller, SAE J1939, 250 kbps

All Downloads

The AX102000, 40A DC Motor Controller provides unidirectional or bi-directional DC motor control. AX102000 generates 1 full H-bridge output up to 40 A, 2 LED outputs up to 14 mA, and 2 additional outputs to drive accessories such as hydraulic valves or relays for machine control or safety interlock. The DC motor controller features 2 isolated universal inputs, 6 isolated digital inputs, and independent ramps for smooth motor rotation. The AX102000 DC Motor Controller can send feedback messages to an SAE J1939 CAN network, has a fixed baud rate of 250 kbit/s, and is user configurable via the Axiomatic Electronic Assistant (sold separately). The rugged unit is designed to control motor variable speed, position, and/or flow in many applications including lift equipment, electric vehicles for material handling, mobile pumps, and hydraulic powerpacks.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Technical Specifications

40A DC Motor Controller, SAE J1939, 250 kbps

Order Code

P/N: AX102000

No. of Input(s)

Input(s)

2 universal signal inputs, user selectable as follows:
Voltage (0-5 V, 0-10 V)
Current (0-20 mA, 4-20 mA)
PWM (1-20,000 Hz)
Digital (active high, active low)

6 isolated digital inputs (two inputs act as STO or E-Brake safety interlock inputs)

No. of Output(s)

Output(s)

2 universal outputs, user programmable as follows:
Proportional current
Proportional voltage
Hotshot digital
PWM duty cycle
Digital on/off

LED Outputs

2 LED outputs (up to 14 mA)

Output To Motor

1 full H-bridge output for forward and reverse DC motor or brake operation.
50 A @ 24 VDC nominal for 2 minutes at room temperature
40 A @ 24 VDC nominal for 1 hour minimum

No. of Communication Port(s)

CAN Port(s)

1 SAE J1939 port

CAN Baud Rate

250 kbit/s

Operating Voltage

12/24 VDC nominal (8-36 VDC)

Isolation

All inputs are isolated from the power supply driving the motor and current outputs.

Control Logic

Standard embedded software is provided.
A user programmable functionality is accessible.

Enclosure

Encapsulated, anodized cast aluminum housing with lid gasket

No. of Pins

Connection(s)

1x 4-pin male connector, Molex P/N: 19436-0411
1x 4-pin M12 female connector (A-coded)
1x 8-pin M12 male connector (A-coded)
1x 8-pin M12 female connector (A-coded)

Protection Rating

IP67

Operating Temperature

-40 to 85 ºC
-40 to 185 ºF

User Interface

The user programmable functionality is accessible using the Axiomatic Electronic Assistant (EA), P/N: AX070502 or P/N: AX070506K

Applications

Motor variable speed, position, and/or flow control for a number of applications including:
Cranes and hoists
Electric vehicles for material handling
Golf carts
Hydraulic power packs
Hydraulic tail lifts and winches
Military and lift equipment
Mobile pumps

Accessories

AX070137, Wire Harness, 2m for AX102100 and AX102101

Configuration Accessories

AX070502, Electronic Assistant KIT (AX070501 USB-CAN, 2 Cables, Installation Instructions)

AX070506K, Axiomatic Electronic Assistant KIT III (AX070506 USB-CAN Converter, 3 Cables, Installation Instructions)

More +

Downloads

Datasheet

AX102000 Datasheet

User Manual

AX102000 User Manual

2D Drawing

AX102000 Drawing

STEP File

AX102000 Housing Assembly

Compliance

RoHS - DoC - All

LVD - DoC - All

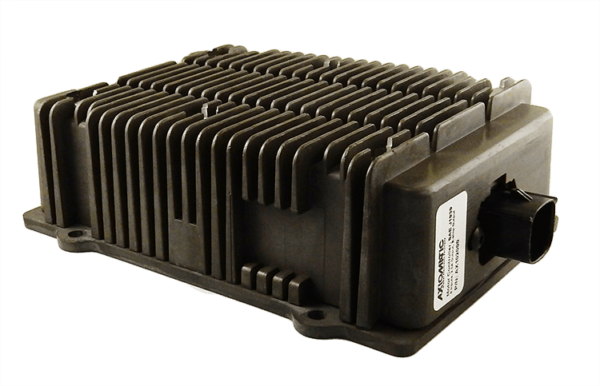

40A DC Motor Controller, SAE J1939, 250 kbps-main
