CAN to 2 Analog/Digital and 1 Relay Output Converter, CANopen®

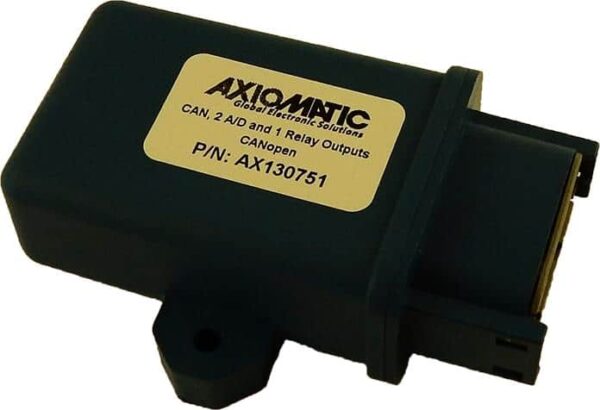

Item # AX130751 — CAN to 2 Analog/Digital and 1 Relay Output Converter, CANopen®
The CAN to 2 Analog/Digital and 1 Relay Output Converter, AX130751, features 2 analog/digital signal outputs configurable as voltage, current, frequency, or PWM as well as 1 relay output. Communication is over an isolated CANopen® port with a user configurable functionality using standard CANopen® interface tools. Additionally, an EDS file is provided for user configuration. The converter is operational at 12 or 24 VDC nominal (9 to 36 VDC), meets the surge requirements of SAE J1455, and is designed for EMC compliance.
Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.
Technical Specifications
CAN to 2 Analog/Digital and 1 Relay Output Converter, CANopen®
Order Code
P/N: AX130751
No. of Input(s)
0
No. of Output(s)
3
Output(s)
2 analog/digital signal outputs are user selectable as follows:
Voltage (0-5 V, 0-10 V)
Current (0-20 mA, 4-20 mA)
Frequency or PWM (0.1 Hz to 20 kHz, 0-100% duty cycle)
1 Form C relay output
No. of Communication Port(s)
1
Communications
1 CAN port (CANopen®)
Operating Voltage
12/24 VDC nominal (9-36 VDC)
Isolation
300 VRMS isolation for the CAN port
Control Logic
Standard embedded logic is provided.
Device functionality is user programmable.
Enclosure
Molded plastic enclosure, integral TE Deutsch equivalent connector
Nylon 66, 30% glass, ultrasonically welded
Connection(s)
1x 12-pin connector, equivalent to TE Deutsch P/N: DTM04-12PA
Protection Rating
IP67
Operating Temperature
-40 to 85 ºC
-40 to 185 ºF
User Configurability
An EDS file is provided to interface with standard CANopen® configuration tools.
Applications
Diesel engines
Throttle controls for marine engines
Accessories
PL-DTM06-12SA, Mating Plug KIT (DTM06-12SA, WM-12S, 12 Contacts, 6 Plugs)
Datasheet
User Manual
EDS File
2D Drawing
STEP File
