Home » Catalog » Automation»Hydraulic Valve Drivers & Controllers»1 Universal Input, 2 Outputs, Valve Controller, Plug-In»

Dual Plug-in Valve Controller, 1 Universal Signal Input

Item # AX022320 — Dual Plug-in Valve Controller, 1 Universal Signal Input

All Downloads

The 1 Universal Input, 2 Outputs Plug-In Valve Controller is designed for extremely versatile control of up to two proportional outputs to directly drive coils or other inductive loads up to 2.0 Amps. The controller has one fully programmable universal input that can be setup to read a: voltage, current, resistive, or PWM input signal. The controller includes user selectable standard control profiles identified by model type.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Order Code

P/N: AX022320

Input(s)

1 Universal Signal Input

Operating Voltage

12Vdc, 24Vdc Nominal
8…36 Vdc power supply range

Control Logic

User programmable functionality using a service tool (the Axiomatic Local Controller EWRITE)

Enclosure

Molded Enclosure, Integral Connectors, Ultrasonic Welded Assembly
Polyester, 15% Glass
Silicone Seals
3.037 x 1.44 x 1.660 inches
77.1 x 36.6 x 42.2 mm
L x W x H Including Integral Connectors

Connection(s)

1 6-pin integral connector, equivalent to TE Deutsch P/N: DT04-6P
1 2-pin integral connector, equivalent to TE Deutsch P/N: DT06-2S

Applications

Transmission control for accurate low-speed control of vehicles.
Flow or pressure control of single solenoid hydraulic valves
Control of dual solenoid hydraulic valves with interface to a joystick
Control of hydraulic fan drives
Transmission control for accurate low-speed control of vehicles
Soft shift of valve coils

Accessories

AX070119, Mating Plug Kit (1 DT06-6S, 1 W6S, 6 0462-201-16141)

AX070127, Configuration Cable for AX022320

Accessories

AX070119, Mating Plug Kit (1 DT06-6S, 1 W6S, 6 0462-201-16141)

AX070127, Configuration Cable for AX022320

More +

Downloads

Datasheet

AX022320 Datasheet

User Manual

AX022320 User Manual

2D Drawing

AX022320 Drawing

Step Files (3D)

AX02231X Housing Assembly

Compliance

RoHS - DoC - All

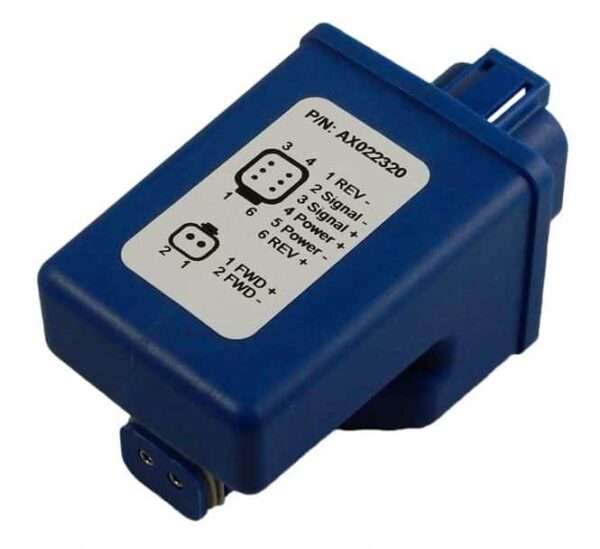

Dual Plug-in Valve Controller, 1 Universal Signal Input-main
