Home » Catalog » Automation»I/O Controls & Signal Converters»Intelligent Load Control Switch»

2 RTD Inputs, 2 Outputs Intelligent Load Control Switch, CANopen®, Modbus RTU, Ethernet, Wi-Fi

Item # AX180700 — 2 RTD Inputs, 2 Outputs Intelligent Load Control Switch, CANopen®, Modbus RTU, Ethernet, Wi-Fi

All Downloads

The 2 RTD Inputs, 2 Outputs Intelligent Load Control Switch, AX180700, operates with a power supply voltage of 100 to 240 VAC and communicates via Modbus RTU (RS-485) and CANopen®. Modbus RTU communication is user programmable as Master, Active, or Passive (listen only) mode. The Intelligent Load Control Switch is user configurable using a web browser via Ethernet and Wi-Fi. The AX180700 switch has 2 RTD inputs for temperature measurements and 2 on/off solenoid outputs (100-240 VAC and 24 V) for driving a 3-phase contactor. The decision to switch the load on/off is based on user configurable thresholds and instantaneous generated power reading acquired from a solar PV inverter or similar system. The AX180700 Load Control Switch is suitable for load switching on home solar systems.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Technical Specifications

2 RTD Inputs, 2 Outputs Intelligent Load Control Switch, CANopen®, Modbus RTU, Ethernet, Wi-Fi

Order Code

P/N: AX180700

Input(s)

2 Pt100 RTD inputs

Output(s)

1 ON/OFF solenoid output (100-240 VAC, 100 mA max.)
1 ON/OFF solenoid output (24 V, 1 A max.)
The outputs drive a 3-phase contactor.

Communications

CANopen®
Ethernet
Wi-Fi
Modbus RTU (RS-485)

Operating Voltage

100-240 VAC

Control Logic

Device functionality is user programmable.

Enclosure

DIN rail mount multi-board box, Bud Industries P/N: DMB-4772
ABS/PC blend plastic housing

Connection(s)

1x 4-pin connector, Phoenix P/N: 1729144
1x 12-pin connector, Phoenix P/N: 1729225

Protection Rating

IP20

Operating Temperature

-40 to 85 ºC
-40 to 185 ºF

User Interface

Programmable via web server.

Applications

Load switching on home solar systems.

More +

Downloads

Datasheet

AX180700 Datasheet

User Manual

AX180700 User Manual

2D Drawing

AX180700 Drawing

3D Model

AX180700 Housing Assembly STEP File

Compliance

RoHS - Declaration of Conformity - All

2 RTD Inputs, 2 Outputs Intelligent Load Control Switch, CANopen®, Modbus RTU, Ethernet, Wi-Fi-main

All Product Categories

Automation

Power Management

Connectivity Solutions

Machine Control

Accessories

View Full Catalog

I/O Controls & Signal Converters View All

Engine Temperature Monitoring Solutions View All

Hydraulic Valve Drivers & Controllers View All

Signal Input Controllers with CAN View All

Signal Output Controllers with CAN View All

Signal Inputs, Signal Outputs, CAN Converters View All

I/O Modules with Relay Outputs and CAN View All

Signal Input Controllers with Modbus TCP/IP View All

LED Outputs CAN Controllers View All

LVDT/RVDT Simulators, DIN Rail View All

Multi-Channel Strain Gauge CAN Controllers View All

Wake-On-Charge Module, CAN View All

Multiple Cell Battery Voltage Monitors View All

Voltage to Current Signal Converters View All

PWM to Voltage or Current Signal Converters, DIN Rail Mount View All

4-20 mA Current to Current Converters, DIN Rail Mount View All

Voltage or Current to Bipolar Current Converters, DIN Rail Mount View All

1 Universal Signal Input CAN Controllers View All

Universal Signal Input CAN Controllers, Compact View All

Magnetic Pickup Input to CAN Converters View All

Magneto-Resistive Speed Sensor Input Controller, CAN View All

RS-232 to CAN Converters with 2 Digital Inputs View All

4 Universal Signal Inputs Controllers View All

4 Digital Inputs Controller with CAN and Ethernet View All

6 Digital Inputs Controllers View All

10 Universal Signal Input CAN Controllers View All

12 Channel Strain Gauge - CAN Controller View All

18 Digital Inputs CAN Controllers View All

CAN to Sine or Square Wave and PWM Output Controller View All

1 Resistive Output CAN Controller View All

1 Analog Signal Output CAN Controllers View All

CAN to PWM Signal Controller View All

CAN to 1 Signal Output Controllers View All

CAN to 2 Analog/Digital Isolated Signals and 1 Relay Output Converters View All

CAN to 2 Analog/Digital Signals and 1 Relay Output Converters (Compact) View All

4 Signal Outputs CAN Controllers View All

12 Signal Output Controllers View All

Voltage or Current to PWM Signal Converters View All

PWM to Current Signal Converters, DIN Rail Mount View All

PWM to Voltage Signal Converters, DIN Rail Mount View All

0-200 mA to 4-20 mA Isolated Current Converters View All

1 Input, 1 Output, Isolated Signal Converter View All

Bipolar Input, Relay and Analog Signal Output Controller, NFC, DIN Rail Mount View All

1 Digital Input, 2 Relay Outputs Controllers, Isolated CAN, DIN Rail View All

Universal Signal Converter with Three-way Isolation, DIN Rail Mount View All

Intelligent Load Control Switch View All

Economy Dual Channel Universal Signal Converters View All

Isolated Dual Universal Signal CAN Converters View All

Isolated, Dual Channel, Universal Signal CAN Converter, NFC, DIN Rail Mount View All

4 AC Voltage or Current Inputs, 4 Analog Outputs CAN Controllers, DIN Rail Mount View All

2 Bipolar Analog/Digital and 8 Universal Signal Inputs Controller, Ethernet Port, DIN Rail Mount View All

2 Bipolar Analog/Digital and 8 Universal Signal Inputs Controller, DIN Rail Mount View All

3 Encoder, 7 Signal Inputs CAN Controllers, Isolated View All

11 Input to 9 Output CAN Controllers View All

12 Inputs, 8 Analog and 1 Relay Outputs CAN I/O Module View All

16 Inputs, 15 Outputs Interface Modules View All

21 Inputs, 6 Outputs, Isolated Dual CAN Controllers View All

Positive Temperature Coefficient (PTC) Thermistor Scanners View All

Resistance Temperature Detector (RTD) Modules View All

Thermocouple (TC) Modules View All

DIN 43650A Valve Controllers & Amplifiers View All

Plug-In Valve Controllers View All

CAN to Outputs Valve Controllers View All

Proportional Output Controllers with Signal Inputs View All

Encoder Input, Dual Output Valve Controllers View All

H-Bridge Controllers View All

Digital On/Off Valve Controllers View All

Dual Servo Valve Controllers View All

Controllers with Near Field Communication (NFC) View All

Remote Mount Solenoid Drivers, PCB or Metal Box View All

Remote Solenoid Drivers, 1 Analog Input, 1 Output, DIN Rail Mount View All

DSDA-SMB-x Dual Solenoid Multifunction Valve Drivers View All

Pulsar Valve Controller, SAE J1939, 250kbps View All

12V or 24V Hot Shot Solenoid Protection Controllers View All

Economy Analog Valve Controllers, DIN Rail Mount View All

Single Output Plug-In Valve Controller View All

CAN to 1 Output Valve Controllers View All

CAN to 1 Output Valve Controller, DIN 43650A View All

CAN to 2 Outputs Valve Controllers View All

Dual Output Plug-In Valve Controllers View All

CAN to 4 Outputs Valve Controllers View All

CAN to 6 Output Valve Controllers View All

10 Outputs Valve Controllers View All

CAN to 10 Outputs Valve Controllers View All

Universal Input, Single Output Valve Controllers, Near Field Communications (NFC) View All

1 Universal Input, 1 Output Valve Controllers with LED View All

Single Input, Dual Outputs Valve Controllers View All

1 Digital Input, 2 Digital Outputs Valve Controllers with CAN View All

1 Universal Input, 2 Outputs, Valve Controller, Plug-In View All

2 Inputs, 2 Outputs Valve Controllers View All

Dual Input, Dual Output Valve Controllers, DIN Rail View All

4 Inputs, 2 Bidirectional Outputs Valve Controllers View All

4 Inputs, 2 Outputs, 3A Valve Controllers View All

4 Inputs, 8 Proportional Outputs Valve Controllers View All

6 Inputs, 5 Outputs Valve Controllers View All

7 Input, 5 Output Valve Controller, SAE J1939 View All

7 Digital Inputs, 6 Digital & 4 LED Outputs Controllers View All

8 Input, 5 Output Valve Controllers View All

12 Inputs, 12 Outputs Valve Controllers View All

CAPVE-H-5V-XA-5C-2M Economy Connector Amplifiers for Proportional Valves View All

CAPV-H-5V-x Connector Amplifier For Proportional Valves View All

CAPV-H-10V-X Connector Amplifiers for Proportional Valves View All

CAPV-H-4-20MA-X Connector Amplifiers for Proportional Valves View All

SSD-H-t-02-x-yM Soft Shift Controllers View All

3A Solenoid Drivers View All

Remote Mount Solenoid Driver (0-5 Vdc/0-20 mA/10 K Potentiometer Input) View All

Remote Mount Solenoid Driver (0-10 Vdc Input DC) View All

Remote Mount Solenoid Driver (4-20 mA Input) View All

Battery Chargers View All

DC to DC Converters — DC-DC Converters View All

Motor Drives and Controllers View All

Surge Protectors View All

AC to DC Converters — AC-DC Converters View All

24VDC, 15A Battery Charger with CAN bus View All

12VDC, 25A Battery Charger with CAN Bus View All

24VDC/14VDC, 2A Battery Charger/Converter for SLA and AGM Batteries with CAN Bus View All

24VDC, 1.2A Battery Charger for Lithium-ion Batteries with CAN Bus View All

48VDC to 12 or 24VDC, 2A Battery Chargers/Converter with CAN Bus View All

12VDC Input Power Converters

The 12 VDC input power converters operate from a 12 VDC (nominal) battery or other source and provide a clean VDC output power suitable for instrumentation and control networks equipment. For operation under harsh and demanding conditions, the units are fully sealed to protect against moisture, shock, and vibration. Each power converter unit in this category is designed with rugged electrical protections. Nominal nameplate ratings will vary.

View All

12VDC to 12VDC Power Converters View All

12VDC to 24VDC Converters View All

12 or 24VDC to 48VDC Converters View All

24VDC to 12VDC, Isolated Converters View All

24VDC to 24VDC, Isolated DC/DC Converters View All

24VDC to 24VDC, Non-Isolated Converters View All

Power Supplies with Back-up Time View All

24VDC to 72VDC, Isolated Converters View All

12 or 24VDC to 120-140VDC Power Converters, DIN Rail Mount View All

48VDC Input Power Converters View All

48VDC to 24VDC Power Converters View All

72, 96, or 110VDC to 12VDC, Isolated Power Converters View All

72, 96, or 110VDC to 24VDC Isolated Power Converters View All

72VDC to 36VDC Power Converters View All

DC to DC Converters with CAN View All

12 or 24V to 1A DC/DC Converters View All

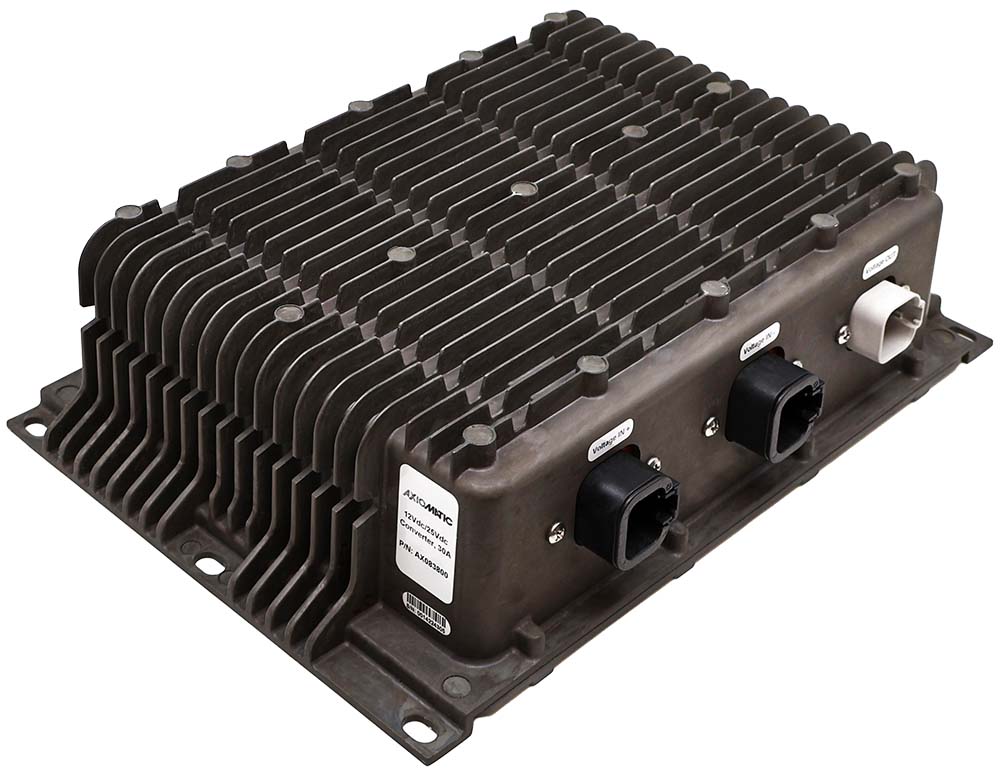

12VDC to 25VDC Converters View All

15-60VDC to 24VDC Converters View All

15-60VDC/24VDC, 240W Isolated Converter View All

12VDC/12VDC, 18W Isolated Power Converter View All

12VDC/12VDC, 180W Isolated Converters View All

9-36VDC/12VDC, 18W Isolated Power Converter View All

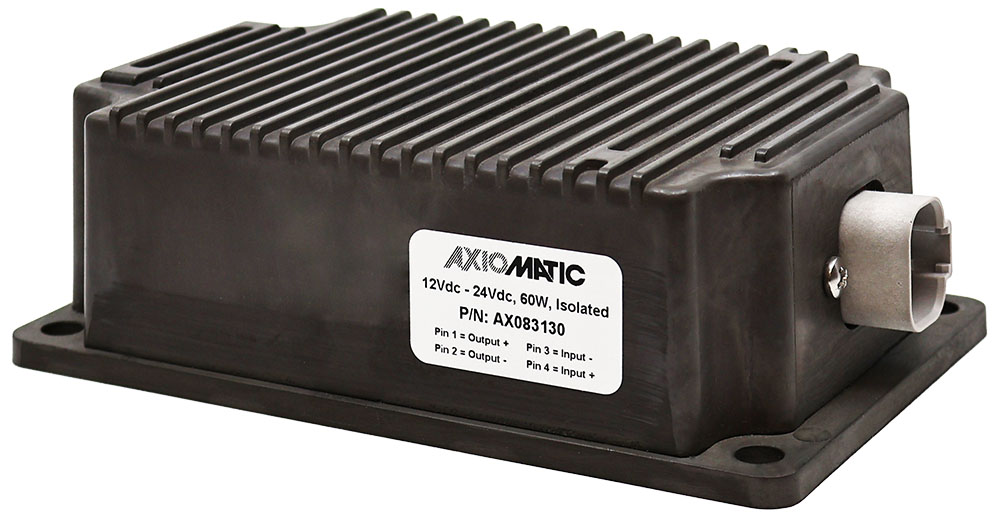

12VDC/24VDC, 60W Isolated Power Converters View All

12VDC/24VDC, 170W Isolated Converters View All

12VDC/24VDC, 190W Isolated DC/DC Converters View All

12 or 24VDC to 27VDC, 95-135W Isolated Converters View All

12VDC/48VDC, 60W Isolated Power Converters View All

24VDC to 12VDC, 5A Isolated Converters View All

24VDC to 14VDC Isolated Converters View All

24VDC to 24VDC, 18W Converter View All

24VDC/24VDC, 3A Isolated DC/DC Converters View All

24VDC to 24VDC, 95-125W Isolated Converters View All

24VDC to 24VDC, 10A Isolated Converters View All

24VDC/24VDC, 500W Isolated Converter View All

24VDC/24VDC, 720W, Non-Isolated DC/DC Converters View All

24VDC to 48VDC, 60W Isolated Converters View All

48VDC to 12VDC Power Converters View All

48VDC to 13.8VDC Converters View All

48VDC/24VDC, 720W Non-Isolated Step-Down Converter View All

48VDC/24VDC, 13A Isolated DC/DC Converters View All

48VDC to 26VDC Power Converters View All

Stepper Motor Controllers View All

Brushed DC Motor Controllers View All

Brushless DC (BLDC) Motor Controllers View All

Universal (DC or BLDC) Motor Controllers View All

Unidirectional DC Motor Drives View All

AC Transient Surge Protectors View All

DC Transient Surge Protectors View All

VAC to 12 or 24 VDC, AC/DC Power Supplies View All

CAN Isolators/Routers View All

CAN-Repeaters View All

Automotive Ethernet Converters View All

Automotive Ethernet to Ethernet PoE Converters View All

Automotive Ethernet Switches View All

Ethernet/CAN Converters View All

Ethernet Switches View All

Ethernet Switches with PoE View All

Modbus TCP/IP Converters View All

Modbus RTU Converters View All

Ethernet TCP/IP Gateways View All

Isolated Protocol Converters with CAN & Modbus RTU or J1587 View All

LIN/CAN Protocol Converters View All

CAN to Bluetooth® Modules View All

RS-232 to CAN Modules View All

CAN/Wi-Fi Modules View All

Protocol Converter, Ethernet / RS-422 / RS-485 / RS-232 / CAN (SAE J1939) View All

1 Universal Input Signal, 2x CAN, RTC Modules View All

CAN ID NFC Controller View All

CAN to USB Converters View All

Data Loggers View All

Fiber Optic to CAN Modules View All

Modbus RTU to Modbus TCP/IP Routers with CAN View All

Automotive Ethernet to CAN Converters View All

Automotive Ethernet to Ethernet Converters View All

Protocol Converters, SAE J1939, SAE J2497 View All

Rotary Laser Receivers View All

Triaxial Gyroscope Inclinometers, M12 Connectors View All

Triaxial Inclinometers, DT13-4P Connector View All

Triaxial Inclinometers, M12 Connectors View All

Triaxial Inclinometer, 3 Analog Outputs View All

Accessories View All

Configuration Tools

Note: Axiomatic Electronic Assistant (EA) programs are located under “EA & Other Configuration Tools” under the “Support” tab. Please contact Axiomatic for the password.

View All
