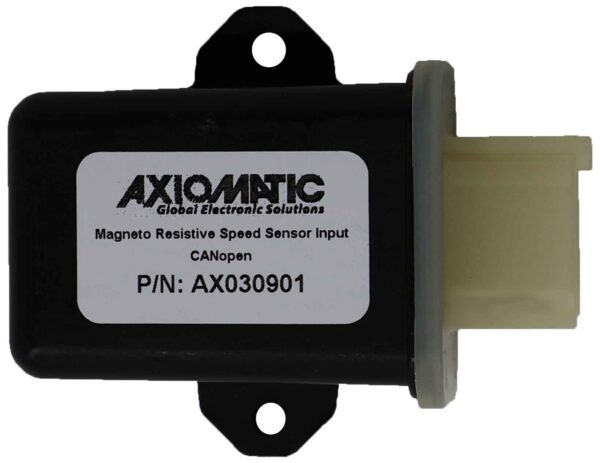

Magneto-Resistive Speed Sensor Input Controller, CANopen®

Item # AX030901 — Magneto-Resistive Speed Sensor Input Controller, CANopen®

All Downloads

The Magneto-Resistive Speed Sensor Input Controller, CANopen® converts a magneto-resistive speed sensor signal into CANopen® messages for communication with control systems. It comes in a compact, fully sealed enclosure, with IP67 protection rating.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Order Code

P/N: AX030901

Input(s)

1 magneto-resistive speed sensor input (0.5 Hz to 10 kHz)
Control input to detect broken wire (open sensor error)

Communications

1 CAN port (CANopen®)

Operating Voltage

12 VDC, 24 VDC, or 48 VDC Nominal

Control Logic

Standard embedded software is provided.

Enclosure

Plastic enclosure, laser welded
Nylon 6-6 with 30% glass fill
Integral connector

Connection(s)

6 pin TE Deutsch connector P/N: DT04-6P

Protection Rating

IP67

Operating Temperature

-40 to 85 ºC
-40 to 185 ºF

User Configurability

An EDS file is provided to interface with standard CANopen® configuration tools.

Applications

Underground mining equipment
Construction equipment

Accessories

AX070119, Mating Plug Kit (DT06-6S, W6S, 6 Contacts)

More +

Downloads

Datasheet

AX030901 Datasheet

User Manual

AX030901 User Manual

EDS

EDS-AX030901

Step Files (3D)

6-Pin Laser Welded Assembly

Compliance

RoHS - DoC - All

LVD - DoC - All
