Precision LVDT Signal Conditioner, Isolated

Item # AX130410 — Precision LVDT Signal Conditioner, Isolated

All Downloads

The AX130410 controller simulates an LVDT signal with high precision for use in various industrial applications. High precision is achieved by the use of FPGA technology. The signal conditioner interfaces with a CAN network to provide command messages and generates 2 isolated LVDT simulation outputs of 1-5 VAC. Additionally, a reference output is featured at 3 VAC +/- 5%. A power supply voltage of 12 or 24 VDC nominal (4 to 32 VDC) is necessary for use of the AX130410 Isolated Precision LVDT Simulator. Based on the command message, output voltage A increases from 1 to 5 VAC and the output voltage B decreases from 5 to 1 VAC. Short circuit protection is provided. The AX130410 controller interfaces with an SAE J1939 CAN network, with Ethernet TCP/IP and USB-C interfacing pending. Currently, the Precision LVDT Simulator is user configurable via the Axiomatic Electronic Assistant with a web interface configuration feature pending. The unit enclosure features a DIN rail mount and a protection rating of IP20.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Technical Specifications

Precision LVDT Signal Conditioner, Isolated

Order Code

P/N: AX130410

No. of Output(s)

Output(s)

1 reference output, 3 VAC ± 5%
2 isolated simulation outputs, output A (1-5 VAC) and output B (5-1 VAC)

A user selected frequency of 400 Hz to 3 kHz ± 0.1% will be applied to all 3 outputs.

No. of Communication Port(s)

Communications

1 CAN port (SAE J1939)
1 Ethernet port (TCP/IP)

CAN Baud Rate

250 kbit/s, 500 kbit/s, or 1 Mbit/s with auto-baud-rate detection

Ethernet Port(s)

1 Ethernet TCP/IP port (RJ45 connector)

Auto-negotiation to automatically select the highest link-up speed (10/100 Mbit/s)
Automatic polarity detection and correction

Operating Voltage

12/24 VDC nominal (4-32 VDC)

Isolation

300 Vrms
The 2 LVDT simulation outputs are fully isolated

Control Logic

Standard embedded software is provided.
A user programmable functionality is accessible.

Enclosure

DIN rail mount TH 35-7.5
ME MAX 22,5 3-U1 KMGY DIN rail housing, Phoenix Contact P/N: 2201538
Polyamide, China RoHS and cULus recognized

No. of Connections

Connection(s)

1x RJ45 connector
1x USB-C connector
3x 4-pin screw terminals, Phoenix Contact P/N: 2202344

Protection Rating

IP20

Operating Temperature

-40 to 85 ºC
-40 to 185 ºF

User Interface

The user programmable functionality is accessible using a web interface or via the Axiomatic Electronic Assistant (EA), P/N: AX070502 or P/N: AX070506K

Accessories

AX070502, Axiomatic Electronic Assistant KIT (AX070501 USB-CAN Converter, 2 Cables, Installation Instructions)

AX070506K, Axiomatic Electronic Assistant KIT III (AX070506 USB-CAN Converter, 3 Cables, Installation Instructions)

No. of Input(s)

More +

Downloads

Datasheet

AX130410 Datasheet

User Manual

AX130410 User Manual

2D Drawing

AX130410 Drawing

Compliance

RoHS - DoC - All

LVD - DoC - All

Precision LVDT Signal Conditioner, Isolated-main

Related Products

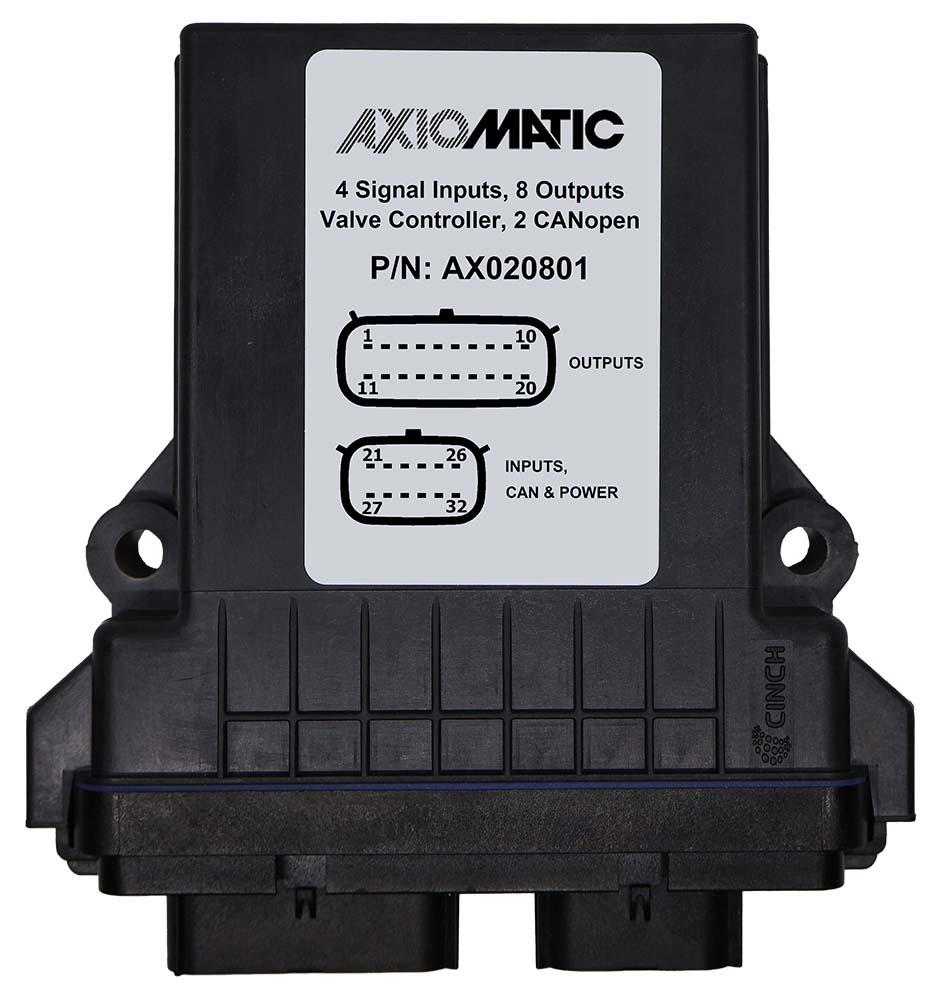

4 Inputs, 8 Proportional Outputs Valve Controller, CANopen®

Link

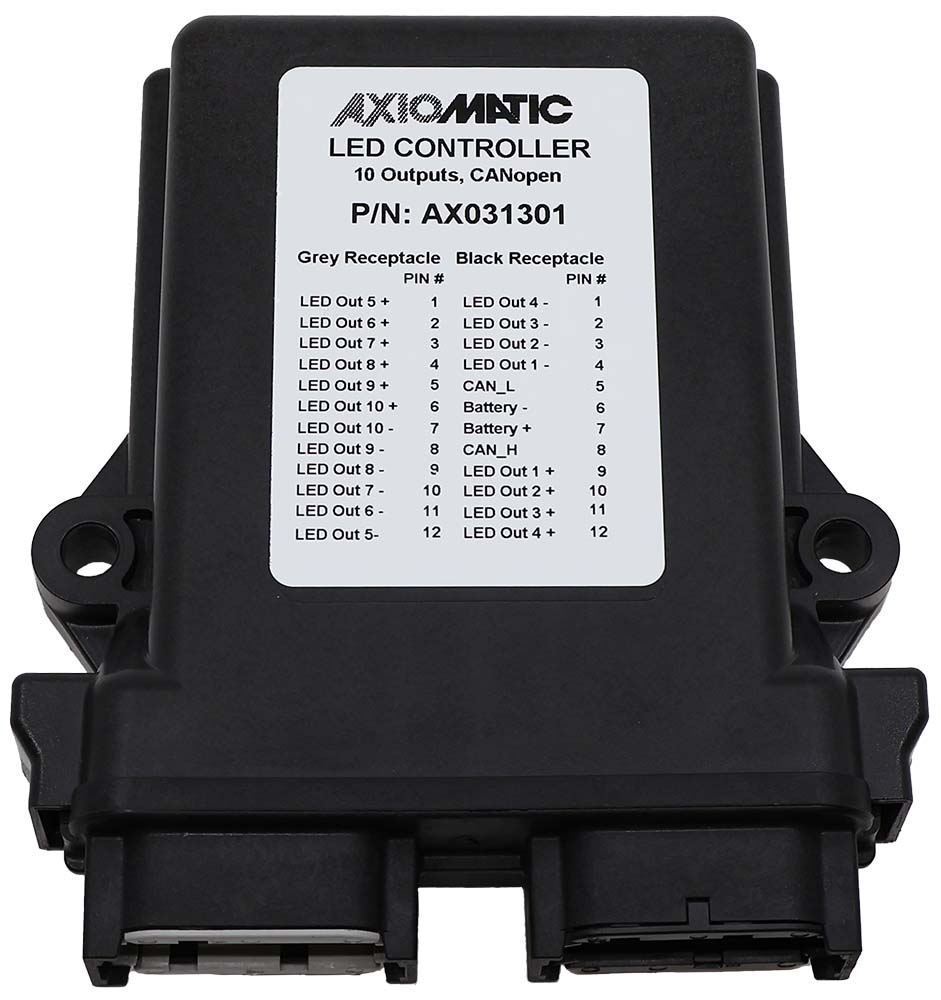

10 LED Outputs Controller, CANopen®

Link

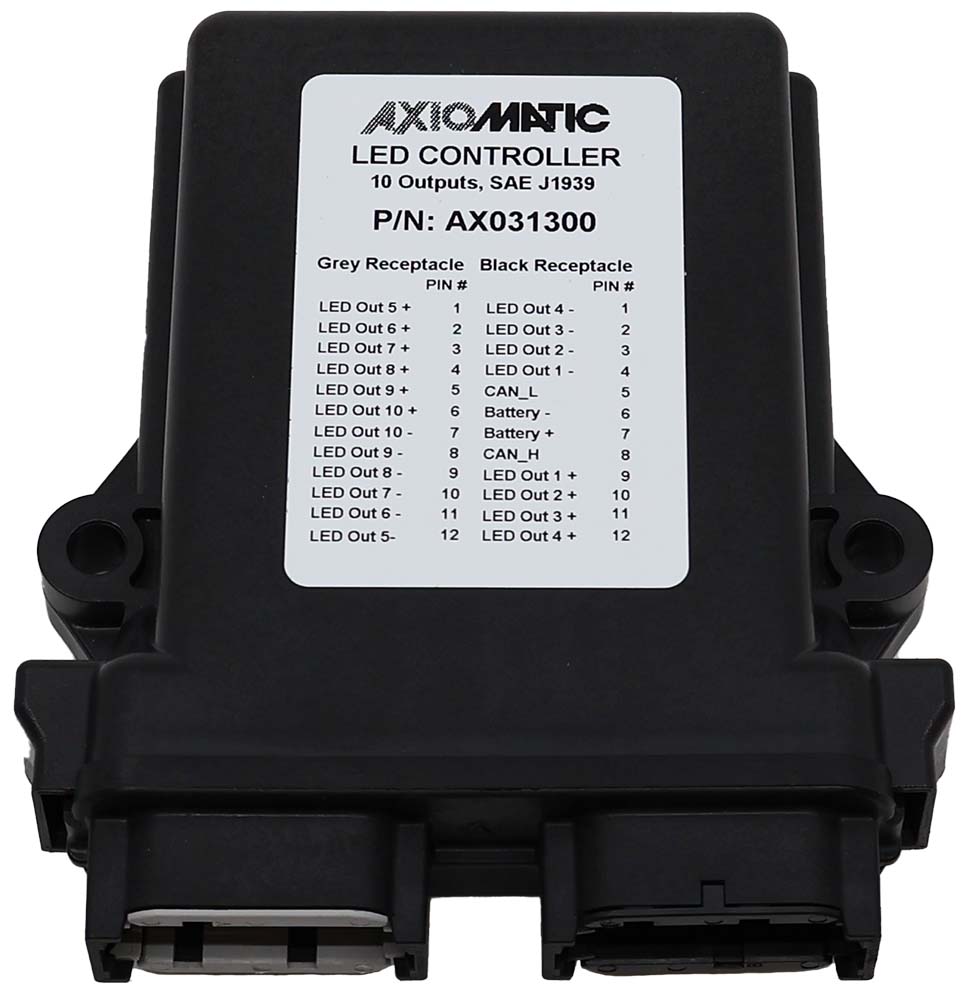

10 LED Outputs Controller, SAE J1939
