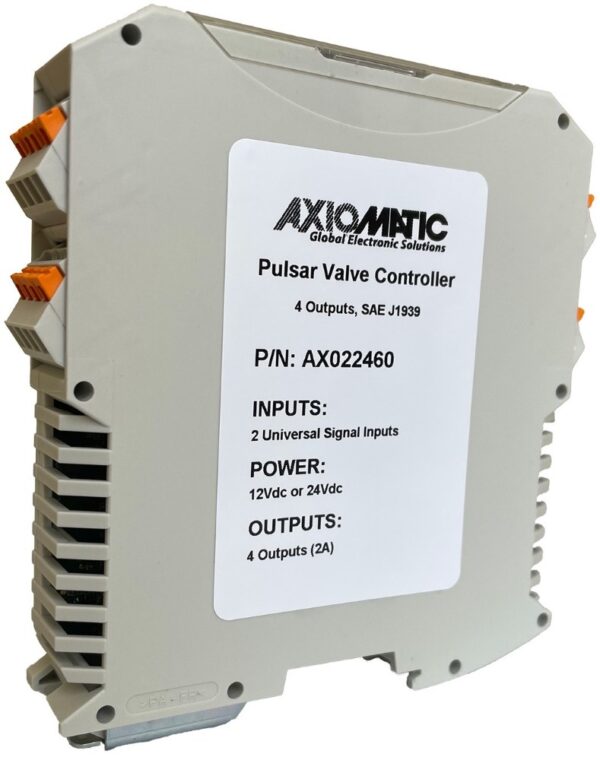

Pulsar Valve Controller, 250kbps SAE J1939

Item # AX022460 — Pulsar Valve Controller, 250kbps SAE J1939

All Downloads

The Pulsar Valve Controller features 2 signal inputs are selectable as bipolar or unipolar voltage, current, digital, PWM or Frequency signal types. 4 independent outputs to drive pulse type valves (up to 2.0 A) are factory set. Two LED indicators. It has a protection rating of IP20. The valve driver is configurable via the Axiomatic Electronic Assistant.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Order Code

P/N: AX022460 (Pulsar Valve Controller, 250kbps SAE J1939)

Input(s)

2 signal inputs are selectable as bipolar or unipolar voltage, current, digital, PWM or Frequency signal types:
0-5 V, 0-10 V, 0 to +/- 5 V, 0 to +/- 10 V, 4-20 mA, 0-20 mA
Digital
Frequency
PWM

Output(s)

4 pulse type valve outputs
High side sourcing up to 2.0 A
All output types have configurable minimum and maximum output levels.

Communications

1 CAN port (SAE J1939)

CAN Baud Rate

250 kbit/s

Operating Voltage

12/24 VDC nominal (8-36 VDC)

Control Logic

User programmable functionality using the Electronic Assistant (EA),
P/N: AX070502 or P/N: AX070506K

Enclosure

Phoenix Contact: PHO ME MAX 22.5 2-2 KMGY - 2713625 (vented)
DIN rail TH 35-7.5
Polyamide, UL94V0
China RoHS, cULus recognized

Connection(s)

4x Phoenix Contact PSPT 2,5/4-ST KMGY spring clamp connectors
Accepts 24-14 AWG wire.

Protection Rating

IP20

Operating Temperature

-40 to 85 ºC
-40 to 185 ºF

Applications

Designed to meet the rugged demands of industrial machine and automation applications including, but not limited to, pulse-type valve control.

Accessories

AX070502, Axiomatic Electronic Assistant KIT (AX070501 USB-CAN Converter, 2 Cables, Installation Instructions)

AX070506K, Axiomatic Electronic Assistant KIT III (AX070506 USB-CAN Converter, 3 Cables, Installation Instructions)

More +

Downloads

Datasheet

AX022460 Datasheet

User Manual

AX022460 User Manual

2D Drawing

AX022460 - Drawing

STEP File

4-connector ME MAX NFC Housing

Compliance

RoHS - DoC - All

LVD - DoC - All
