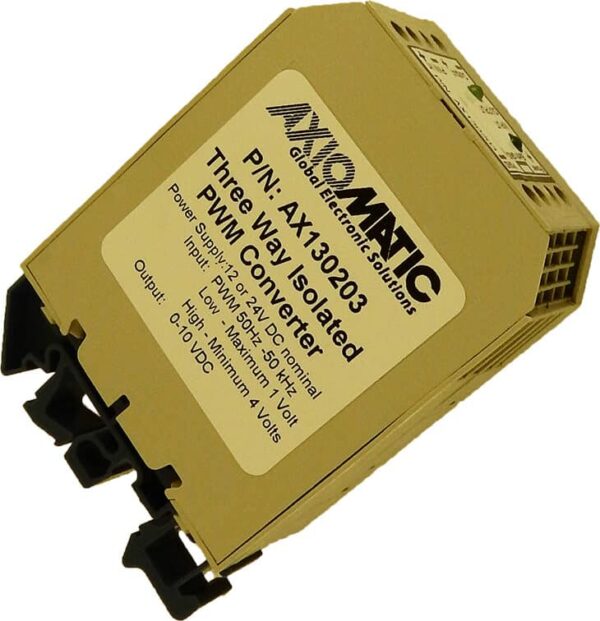

PWM to 0-10V Voltage Converter, 100ms, Isolated, 12/24 VDC, DIN Rail Mount

Item # AX130203 — PWM to 0-10V Voltage Converter, 100ms, Isolated, 12/24 VDC, DIN Rail Mount

All Downloads

The PWM to 0-10V Voltage Converter provides a compact DIN rail mount solution for converting a digital PWM (Pulse Width Modulation) signal into a 0-10V voltage signal. The input and output are isolated. Response time is 100 ms.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Order Code

P/N: AX130203 (PWM to 0-10V output)

Input(s)

PWM (50 Hz - 50 kHz, 0-100%)
Isolated

Output(s)

0-10 VDC
Isolated

Response Time

100 ms

Operating Voltage

12 VDC or 24 VDC nominal (8...36VDC)

Enclosure

Wieland WEG8 enclosure, DIN rail mount
Polyamide 6.6 plastic, UL 94V-0

Connection(s)

#12 to #22 AWG Screw Terminals.

Protection Rating

IP20

Operating Temperature

-40 to 85 °C (-40 to 185 °F), 0-95% Relative Humidity

Applications

Power generation
Speed control of a diesel engine
Mobile equipment
Industrial hydraulics
Industrial control panels
Engine control panels

More +

Downloads

Datasheet

AX13020X Datasheet

Step Files (3D)

WEG8 Generic DIN Rail Enclosure

Compliance

RoHS - DoC - All

LVD - DoC - All
