PWM to 0-10V Voltage Converter, 100ms, Isolated, 24VDC, DIN Rail Mount

Item # PWMI-WG8-06 — PWM to 0-10V Voltage Converter, 100ms, Isolated, 24VDC, DIN Rail Mount

All Downloads

The PWM to 0-10V Voltage Converter provides a compact DIN rail mount solution for converting a digital PWM (Pulse Width Modulation) signal into a 0-10V voltage signal. The input and output are isolated. Response time is 100 ms.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Order Code

P/N: PWMI-0000005

Input(s)

PWM (50-5000 Hz, 0-100%)
Isolated

Output(s)

0-10V
Isolated

Response Time

100 ms

Operating Voltage

24 VDC +/-10%

Enclosure

Wieland WEG8 enclosure, DIN rail mount
Polyamide 6.6 plastic, UL 94V-0

Connection(s)

#12 to #22 AWG Screw Terminals.

Protection Rating

IP20

Operating Temperature

-40 to 85 ºC
-40 to 185 ºF

Applications

Industrial and Machine Controls

More +

Downloads

Datasheet

TD2011AX Datasheet

Step Files (3D)

WEG8 Generic DIN Rail Enclosure

Compliance

RoHS - DoC - All

LVD - DoC - All

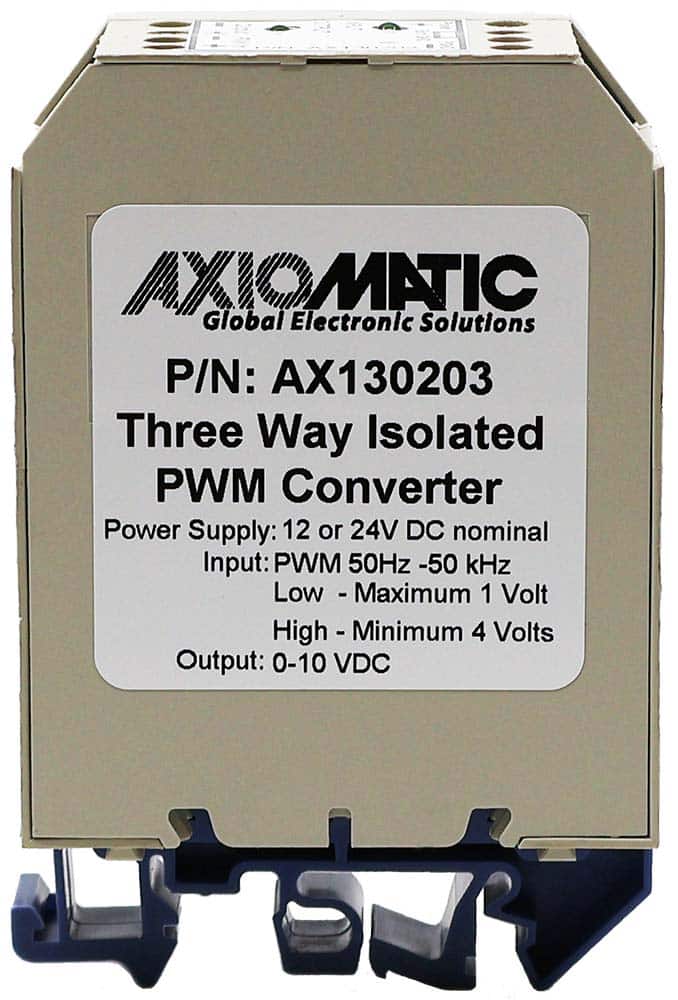

PWM to 0-10V Voltage Converter, 100ms, Isolated, 24VDC, DIN Rail Mount-main

Related Products

10 Universal Signal Inputs Controller, +5V Reference, SAE J1939

Link

4 Inputs, 8 Proportional Outputs Valve Controller, CANopen®

Link

10 LED Outputs Controller, CANopen®

Link

10 LED Outputs Controller, SAE J1939

Link

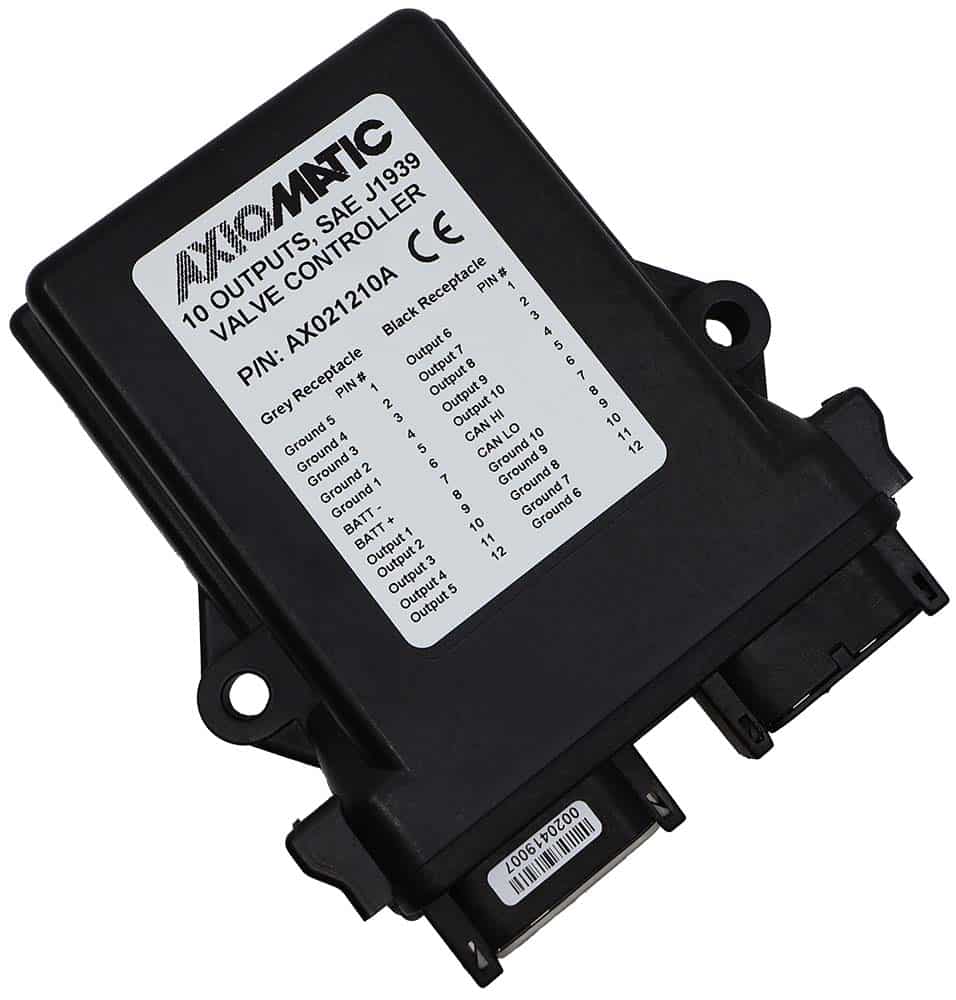

CAN to 10 Output Valve Controller, SAE J1939

Link

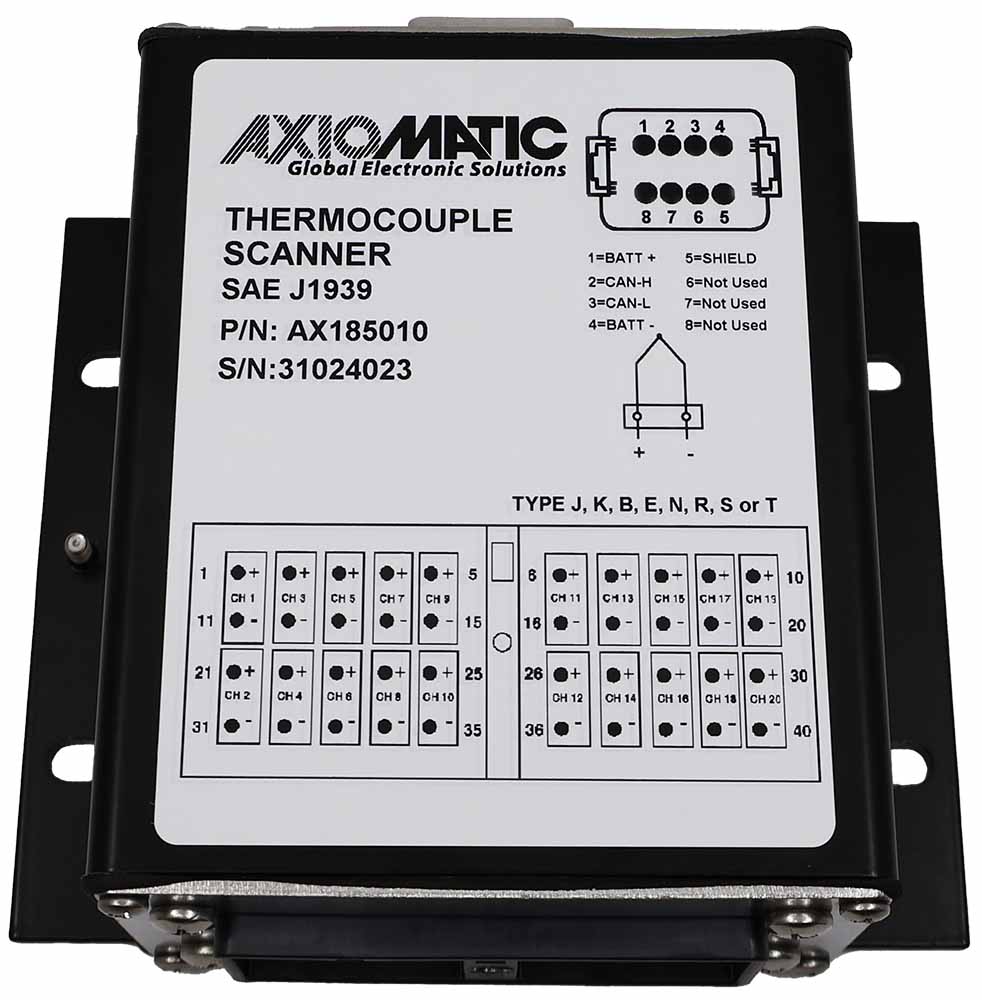

20 Channel Thermocouple Scanner, Full Isolation, SAE J1939

Link

4 Digital Inputs Modbus Router, Modbus TCP/IP, SAE J1939

Link

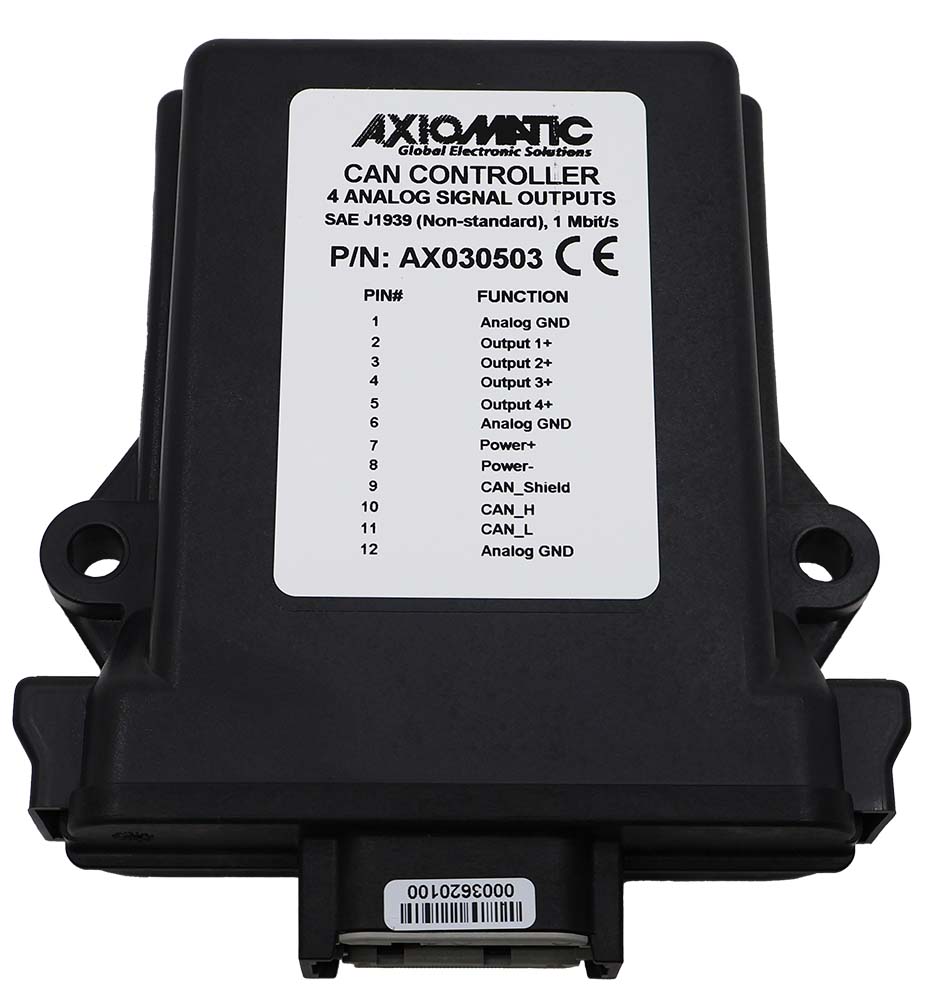

4 Universal Signal Outputs CAN Controller, CANopen®, Compact
