Quadrature Encoder Input, Dual Valve Controller, SAE J1939, 250 kbps

Item # AX023240 — Quadrature Encoder Input, Dual Valve Controller, SAE J1939, 250 kbps

All Downloads

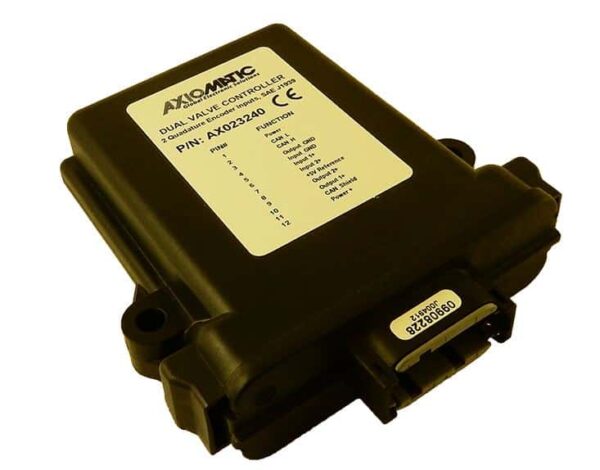

The AX023240 Quadrature Encoder Input, Dual Output Valve Controller is designed for extremely versatile control of up to 2 proportional outputs to directly drive coils or other loads. The valve controller accepts 1 encoder input or 2 digital input signals to command the driver. The controller operates with a power voltage supply of 12 or 24 VDC nominal (9 to 60 VDC) and communicates messages to an SAE J1939 CAN network with a fixed baud rate of 250 kbit/s. AX023240 is user configurable via the Axiomatic Electronic Assistant (sold separately). The unit features an IP67 rating and is designed to meet the rugged demands of mobile equipment, marine, and heavy duty industrial machine applications. The AX023240 Quadrature Encoder Input, Dual Output Valve Controller features CE markings and is compliant with EMC and UKCA directives.

Our products are designed to be customized by our customers and can be thought of as product foundations. Find the foundational product(s) that you need in our catalog, add them to your quote cart, then explain your requirements for your project on the quote cart submission form. If you cannot find the foundational product, please tell us your requirements.

Add to Quote

QTY

Specifications

Technical Specifications

Quadrature Encoder Input, Dual Valve Controller, SAE J1939, 250 kbps

Order Code

P/N: AX023240

No. of Input(s)

Input(s)

2 fully independent digital inputs are user selectable as 1 encoder input or 2 digital inputs.

No. of Output(s)

Output(s)

2 independent software controlled outputs (up to 3 A) are selectable as follows:
Proportional voltage
Proportional current
Hotshot digital
PWM duty cycle
Digital on/off

Reference Voltage(s)

+5 V ± 2%

No. of Communication Port(s)

CAN Port(s)

1 SAE J1939 port

CAN Baud Rate

250 kbit/s

Operating Voltage

12/24 VDC nominal (9-60 VDC)

Control Logic

A user programmable functionality is accessible.

Enclosure

High temperature nylon housing, TE Deutsch P/N: EEC-325X4B

No. of Pins

Connection(s)

1x 12-pin connector, TE Deutsch P/N: DTM13-12PA-R008

Protection Rating

IP67

Operating Temperature

-40 to 125 ºC
-40 to 257 ºF

User Interface

The user programmable functionality is accessible using the Axiomatic Electronic Assistant (EA), P/N: AX070502 or P/N: AX070506K

Applications

Hydraulic valve control
PID closed loop valve control
Proportional fan drive control
Signal conversion

Accessories

PL-DTM06-12SA, Mating Plug KIT (DTM06-12SA, WM-12S, 12 Contacts, 6 Plugs)

Configuration Accessories

AX070502, Electronic Assistant KIT (AX070501 USB-CAN, 2 Cables, Installation Instructions)

AX070506K, Axiomatic Electronic Assistant KIT III (AX070506 USB-CAN Converter, 3 Cables, Installation Instructions)

More +

Downloads

Datasheet

AX023240 Datasheet

User Manual

AX023240 User Manual

2D Drawing

AX023240 Drawing

STEP File

12-Pin TE Deutsch Housing Assembly

Compliance

EMC - DoC - AX0232XX

UKCA - DoC - AX0232XX

RoHS - DoC - All

LVD - DoC - All
